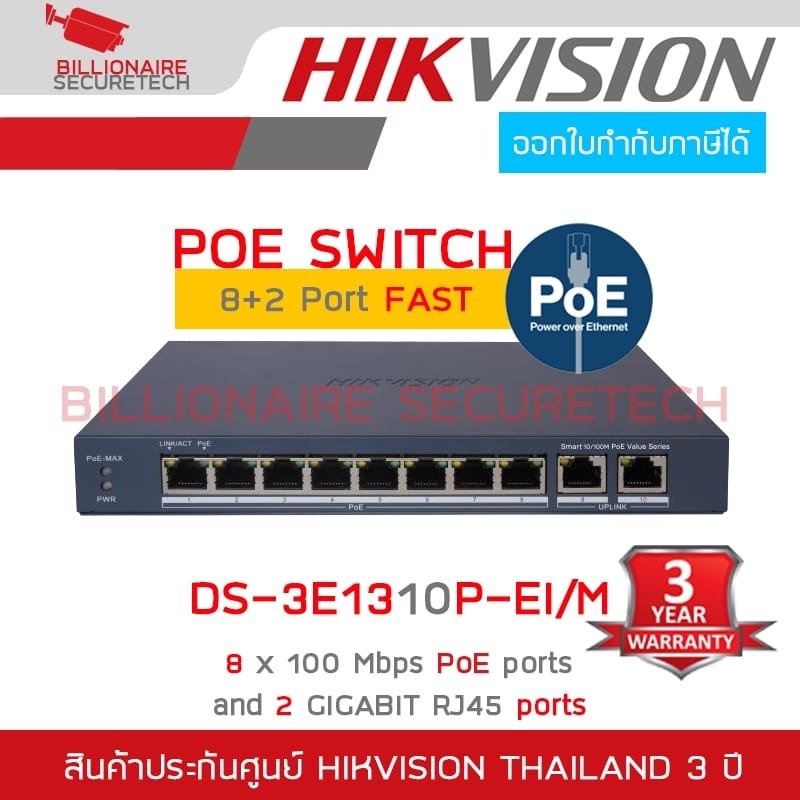

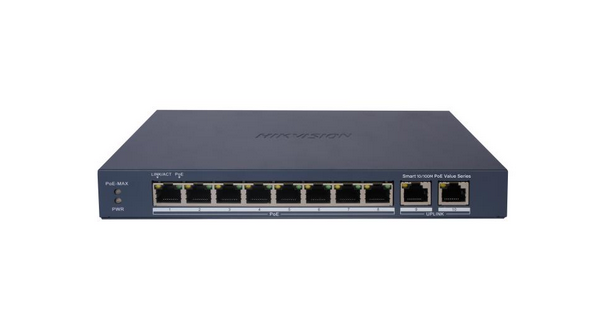

Hikvision DS-3E1310P-EI/M 8 Port Fast Ethernet Smart POE Switch
The Hikvision DS-3E1310P-EI/M is a compact, high-efficiency 8-port Fast Ethernet Smart PoE switch engineered for small surveillance networks, SMB deployments, and edge installations requiring stable power and data transmission. Equipped with 8 PoE Fast Ethernet ports and 2 Gigabit uplink ports, the switch ensures smooth video streaming and reliable device connectivity for IP cameras, VoIP phones, wireless APs, and smart terminals.
Key Features
-
8 × Fast Ethernet PoE Ports + 2 × Gigabit Uplinks
Ensures stable camera connectivity with high-speed uplinks for NVRs, servers, or backbone switches. -
60W Total PoE Power Budget
Supports IEEE 802.3af/at with up to 30W per port, ideal for most surveillance cameras. -
PoE Watchdog Self-Healing
Automatically detects and restarts unresponsive cameras to maintain uptime. -
Long-Range PoE Mode (300m)
Perfect for expansive CCTV deployments using long-distance runs. -
Advanced Layer 2 Management
Includes VLANs, RSTP, STP, isolation, and loop prevention. -
Fanless Metal Housing
Silent, durable, and optimized for desktop or wall-mount installations. -
Hik-Partner Pro Remote Management
Supports topology view, bandwidth monitoring, PoE usage display, and remote firmware upgrades.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal material |
| Net Weight | 0.54 kg |
| Gross Weight | 1.08 kg |
| Dimensions | 217.6 × 27.6 × 108.5 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | DC 54V, 1.2A |
| Max Power Consumption | 65W |
| Idle Power Consumption | 5W |
| Installation Mode | Desktop / Wall-mount |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 uplinks |
| MAC Address Table | 4K |
| Switching Capacity | 9.6 Gbps (whole device) |
| Packet Forwarding Rate | 7.14 Mpps (whole device) |
| Internal Cache | 2 Mbit |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Pins | 1/2(-), 3/6(+) |
| PoE Ports | Ports 1–8 |
| Max Port Power | 30W |
| Total PoE Budget | 60W |
Software Features
Long Range Mode
-
Ports 1–8 support up to 300m transmission
-
Distance depends on cable quality and camera model
Port Isolation
-
Ports 1–8 can be isolated
-
Isolated ports cannot communicate laterally
-
Enhances camera-to-NVR security
PoE Watchdog
-
Automatically reboots non-responsive cameras
-
Reduces onsite maintenance
Loop Prevention
-
Prevents switching loops
-
Supports 802.1D STP and 802.1w RSTP
VLAN
-
Supports 802.1Q VLAN tagging
-
VLAN ID range: 1–4094
-
Access/Trunk modes
-
Supports up to 4094 VLANs
Hik-Partner Pro Features
-
Port rate display
-
Bandwidth utilization
-
PoE power usage
-
Network topology view
-
Alarm monitoring
-
Port/device restart
-
Enable long-range mode
-
Remote firmware upgrade
System Maintenance
-
Web-based management
-
DHCP client (enabled by default)
-
Super IP access (10.180.190.200)
-
Cable diagnostics
-
Supports LLDP, SNMP, port mirroring
-
Integrates with Hik-Central Pro and Hik-Partner Pro
Approvals & Certifications
| Category | Standard |
|---|---|
| EMC | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035 |
| Safety | CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
-
1 × Hikvision DS-3E1310P-EI/M PoE Switch
-
Power Adapter
-
Wall-mounting kit
-
Quick Installation Guide
Why Choose the DS-3E1310P-EI/M
-
Ideal for CCTV networks with up to 8 IP cameras
-
Strong 60W PoE power with watchdog self-healing
-
Dual Gigabit uplinks for smooth NVR connectivity
-
VLAN + Loop Protection for secure, clean network topology
-
Remote control & diagnostics via Hik-Partner Pro
-
Durable metal housing and silent fanless design
-
Affordable, high-performance switch for SMBs & surveillance projects
