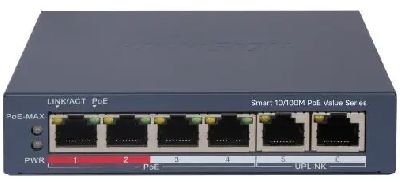

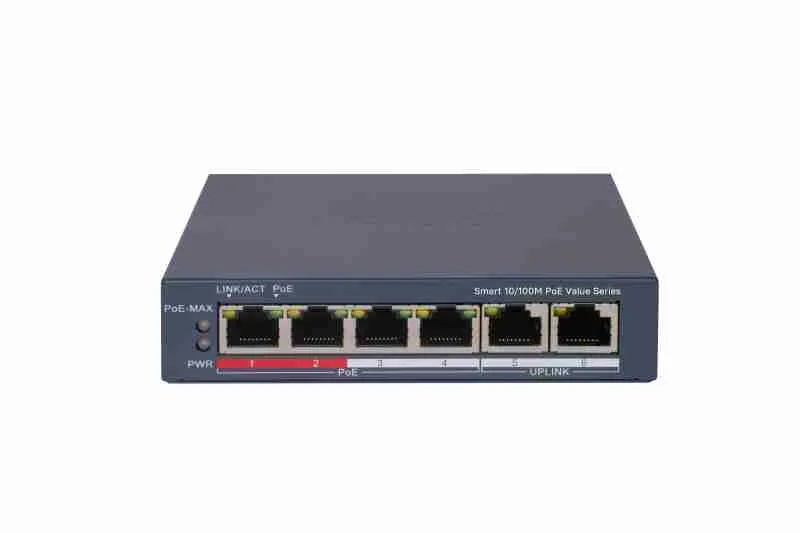

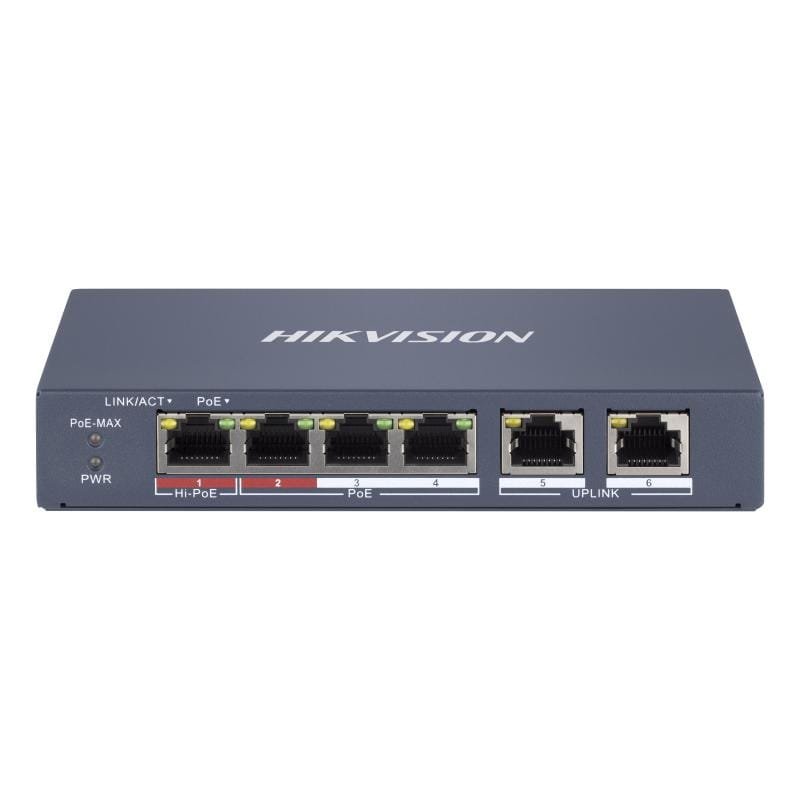

Hikvision DS-3E1106P-EI/M 4-Port Fast Ethernet Smart PoE Switch

The Hikvision DS-3E1106P-EI/M is a compact, high-efficiency 4-Port Fast Ethernet Smart PoE Switch engineered for small to mid-sized surveillance networks, SME offices, and remote edge deployments. With 4 × 10/100 Mbps PoE ports, 2 × uplink ports, and a 45W PoE budget, this switch is optimized for powering IP cameras, VoIP phones, and other PoE-enabled devices.

Key Features

• 4 × PoE Ports + 2 × Fast Ethernet Uplink Ports
  Ideal for powering IP cameras, WAPs, and IoT devices while offering stable uplink connectivity.

• IEEE 802.3af/at PoE Support
  Up to 30W per port with a 45W total PoE budget, suitable for most security cameras.

• Intelligent PoE Watchdog
  Automatically detects frozen/unresponsive devices and reboots them — ensuring 24/7 uptime.

• Long-Range PoE (Up to 300m)
  Extended coverage for remote camera installations (distance depends on cable quality & camera model).

• VIP Priority Port Function
  Prioritizes bandwidth and latency-sensitive traffic for critical devices.

• Enhanced Network Security
  Port isolation and VLAN modes restrict unnecessary cross-communication and improve safety.

• Loop Prevention + Link Aggregation
  Prevents switching loops and enhances bandwidth through port aggregation (2 groups supported).

• Remote Cloud Management (Hik-Partner Pro)
  Real-time monitoring, alarm notifications, port control, and firmware upgrades from anywhere.

• Rugged Metal Housing + 6kV Surge Protection
  Ensures long-term durability in indoor/outdoor installations.

• Energy Efficient
  Consumes only 1.8W in idle mode, optimized for 24/7 operations.

Specifications

General

Network Parameters

PoE Power Supply

Software Features

Long-Range Mode

• Extends PoE & data transmission up to 300m (depends on camera/cable).

VIP Port Prioritization

• Ports 1–2 receive priority for latency-sensitive devices (e.g., NVR, main cameras).

Port Isolation

• Isolates ports 1–4 to improve security and reduce broadcast storms.

PoE Watchdog

• Automatically detects devices that stop responding and reboots them.

Link Aggregation

• Supports 2 aggregation groups for redundancy and increased throughput.

Loop Prevention

• Prevents network broadcast storms

• Supports 802.1D STP & 802.1w RSTP

VLAN Functionality

• Supports up to 32 VLANs

• VLAN ID configurable: 1 – 4094

HPP (Hik-Partner Pro)

• Remote monitoring

• Power management

• Port restart

• Firmware updates

• Topology view

System Maintenance

• Web-based GUI

• DHCP Client

• Super IP (Fixed emergency IP: 10.180.190.200)

• Hik-Central Pro compatibility

Certifications & Compliance

Why Choose the Hikvision DS-3E1106P-EI/M?

The DS-3E1106P-EI/M is the perfect solution for:

• IP CCTV camera deployments

• Small office networks

• Retail shops & SMEs

• Remote power + data for IoT devices

• Affordable PoE expansion networks
