Hikvision DS-3E1106HP-EI 4Port Smart PoE Switch
Original price was: KSh 5,800.00.KSh 4,000.00Current price is: KSh 4,000.00.
Hikvision DS-3E1105P-EI V2 4Port Fast Smart PoE Switch
| Ports | 4 × PoE + 2 × Uplink |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Budget | 60 W |
| Max Port Power | 60 W (Port 1), 30 W (Ports 2–4) |
| Switching Capacity | 1.2 Gbps |
| Long-Range Mode | Up to 300 m |
| Enclosure | Metal, IP40 |
| Surge Protection | 6 kV |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

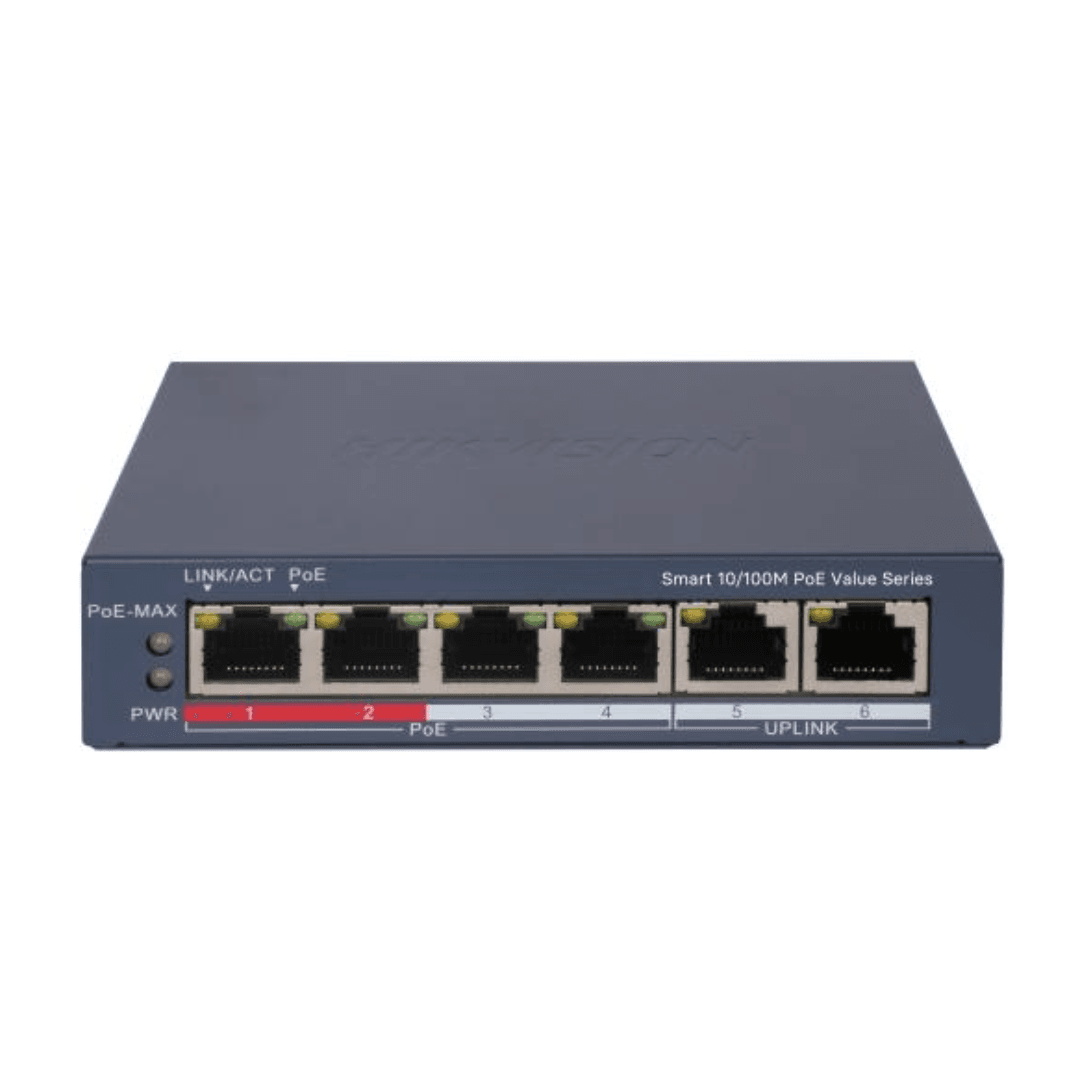

Hikvision DS-3E1106HP-EI 4Port Fast Ethernet Smart PoE Switch
The Hikvision DS-3E1106HP-EI 4Port Fast Ethernet Smart PoE Switch is a smart-managed Fast Ethernet PoE switch engineered for professional surveillance, SMB networks, and structured deployments requiring intelligent power delivery and extended-range data transmission. Featuring 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink ports, the switch supports IEEE 802.3af/at/bt standards, offering advanced PoE capacity including Hi-PoE (60 W) on Port 1 for power-intensive devices.
Key Features
4 × Fast Ethernet PoE Ports + 2 × Uplink Ports
Ideal for IP cameras, APs, and edge devices.Hi-PoE Capability (60 W on Port 1)
Supports high-consumption devices such as PTZ cameras.IEEE 802.3af/at/bt Compliant
Ensures wide compatibility with diverse PoE devices.Up to 300 m Long-Range Transmission
Ideal for extended surveillance deployments.6 kV Surge Protection
Industrial-grade protection for outdoor or unstable power environments.Advanced Smart Management
Includes PoE watchdog, VIP priority, topology management, and remote monitoring.Supports Hik-Partner Pro & Hik-Central Pro
Enables remote management, firmware updates, diagnostics, and device monitoring.Metal Housing with IP40 Rating
Ensures durability and heat dissipation for continuous operation.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal, IP40-rated |
| Net Weight | 0.245 kg (0.54 lb) |
| Gross Weight | 0.645 kg (1.42 lb) |
| Dimensions | 145 × 25.6 × 68.45 mm (5.7″ × 1.0″ × 2.69″) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidity | 5%–95% (non-condensing) |
| Power Supply | 48 VDC, 1.35 A |
| Installation Mode | Desktop or Wall-Mount |
| Max Power Consumption | 65 W |
| Idle Power | 2 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 4 × 10/100 Mbps PoE + 2 × 10/100 Mbps RJ45 |
| MAC Address Table | 2K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.90 Mpps |
| Internal Cache | 768 Kbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| Standards | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Pins | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Port 1: Hi-PoE (60 W), Ports 2–4: Standard PoE (30 W) |
| PoE Budget | 60 W Total |
Software Functions
| Feature | Details |
|---|---|
| Long Range Mode | Ports 1–4 support up to 300 m transmission |
| VIP Ports | Ports 1–2 prioritized during high traffic |
| PoE Watchdog | Auto-detects and restarts unresponsive cameras |
| HPP Support | Remote mgmt via Hik-Partner Pro: port rate, bandwidth, PoE usage, topology, alarms, restart, upgrade |
| System Maintenance | Web management, DHCP Client, Super IP (10.180.190.200), Hik-Central Pro support, SNMP v1/v2c, LLDP, cable diagnostics, port mirroring |
Approvals
| Category | Certifications |
|---|---|
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL 60950-1, CB, CE-LVD, IEC 62368-1 |
| Chemistry | CE-RoHS, WEEE, REACH |
What’s in the Box
1 × Hikvision DS-3E1106HP-EI Smart PoE Switch
User Manual / Quick Installation Guide
Mounting Accessories (if provided by manufacturer)
Why Choose the DS-3E1106HP-EI
Best suited for IP surveillance with PoE watchdog and long-distance transmission.
Provides Hi-PoE for heavy-duty PTZ or IR cameras.
Easy remote troubleshooting, monitoring, and system upgrades.
Rugged metal housing with industrial-grade surge protection.
Seamless integration with Hikvision software ecosystems.
Smart network features ideal for small to medium installations.
