Hikvision DS-3E1105P-EI V2 4Port Fast Smart PoE Switch
Original price was: KSh 5,800.00.KSh 4,000.00Current price is: KSh 4,000.00.

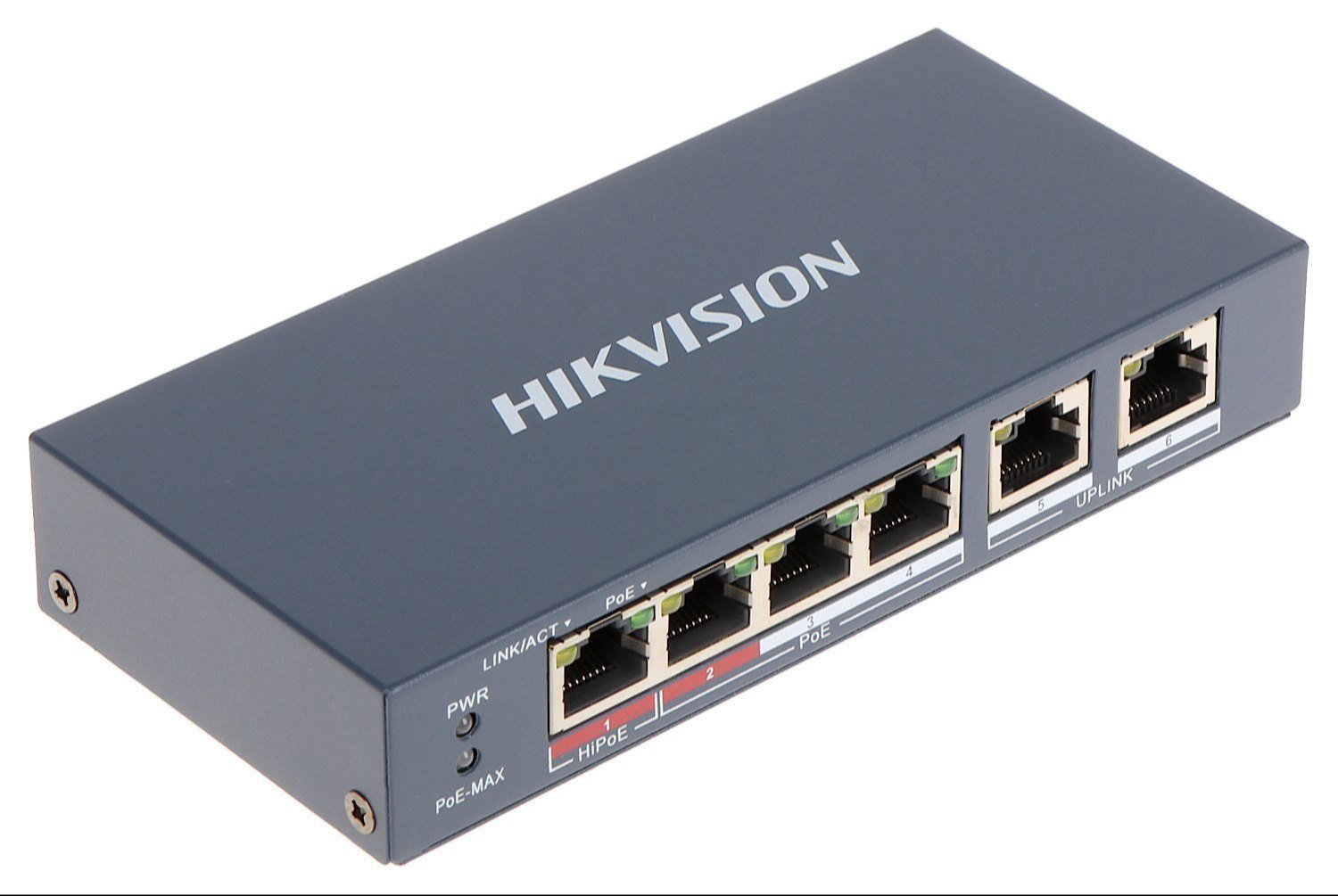

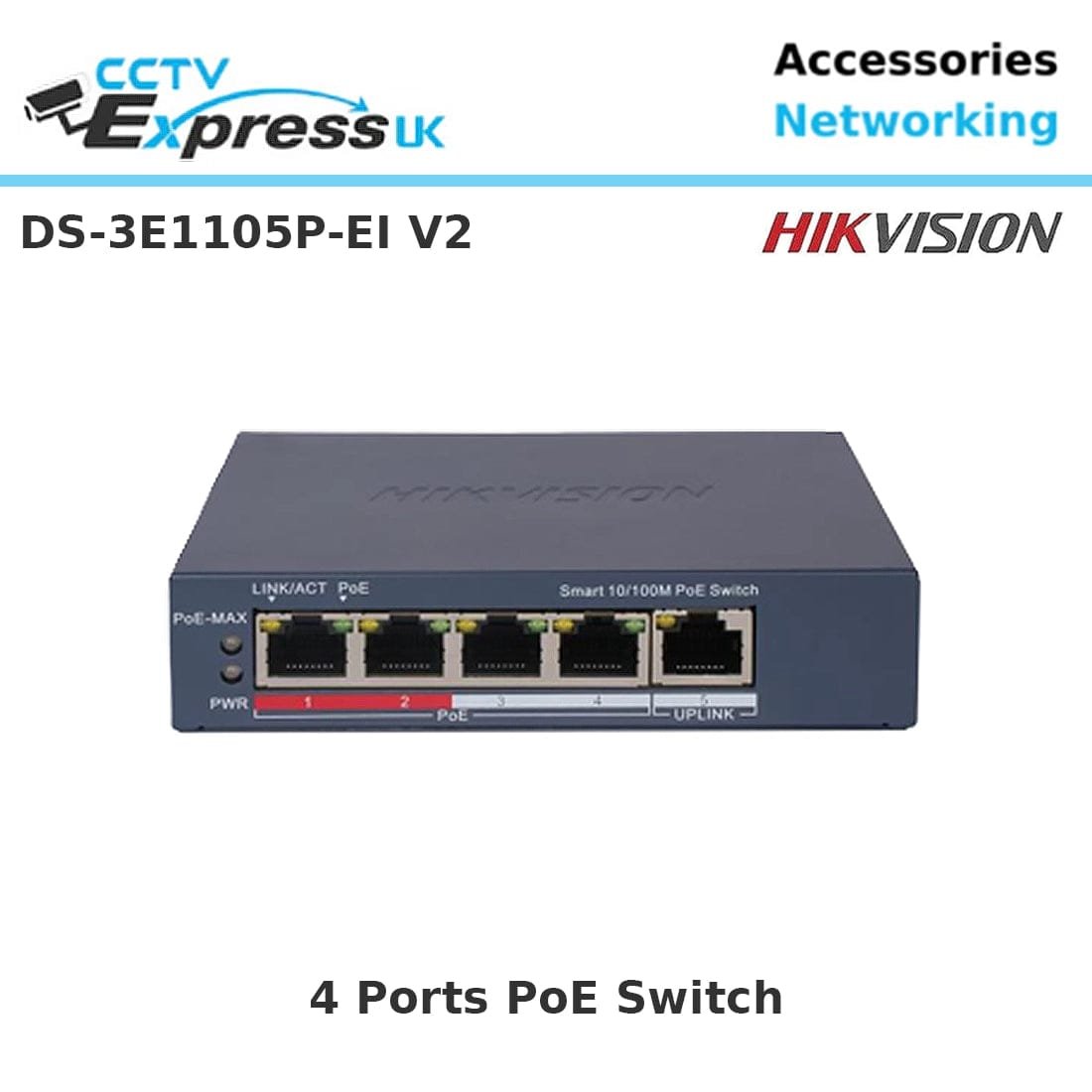

Hikvision DS-3E1105P-EI V2 4Port Fast Smart PoE Switch
| Ports | 4 × PoE (10/100 Mbps) + 1 × RJ45 Uplink |
| PoE Budget | 60 W |
| Max PoE Per Port | 30 W |
| Management | Smart Managed |
| Surge Protection | 6 kV |
| Long-Range PoE | Up to 300 m |
| VLAN Support | IEEE 802.1Q |
| Housing | Metal |
| Dimensions | 121.1 × 27.6 × 83.1 mm |
| Weight | 0.26 kg |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E1105P-EI V2 4Port Fast Ethernet Smart PoE Switch
The Hikvision DS-3E1105P-EI V2 is a compact, intelligent 4-Port Fast Ethernet Smart PoE Switch engineered for surveillance networks, SMB infrastructures, and small-scale IP deployments. Equipped with 4 × 10/100 Mbps PoE ports and 1 × 10/100 Mbps uplink port, the switch delivers stable power and data transmission for IP cameras and other PoE-powered devices.
Key Features
4 × PoE Ports + 1 × Uplink Port
Supports four 10/100 Mbps PoE ports and one 10/100 Mbps RJ45 uplink port.60W Total PoE Budget
Supports IEEE 802.3af/at PoE standards with up to 30W per port.Long-Range PoE Transmission (Up to 300 m)
Ideal for large facilities and extended surveillance deployments.PoE Watchdog
Automatically detects and restarts non-responsive IP cameras to ensure continuous operation.Surge Protection up to 6 kV
Protects PoE ports against electrical surges and outdoor environmental conditions.802.1Q VLAN Support
Enhances traffic segmentation and network management for secure, isolated networks.Loop Prevention (STP/RSTP)
Prevents broadcast storms and ensures stable network topology.VIP Port Prioritization
Ensures highest priority for video-critical traffic on designated ports.Cable Diagnostics
Locates cable faults such as short circuits, open circuits, and estimates cable length.Smart Management
Supports web management, SNMP v1/v2c, LLDP, link aggregation, and remote control via Hik-Partner Pro.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 0.26 kg (0.573 lb) |
| Gross Weight | 0.75 kg (1.65 lb) |
| Dimensions | 121.1 × 27.6 × 83.1 mm (4.77 × 1.09 × 3.27 in.) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidity | 5%–95% (non-condensing) |
| Power Supply | 54V DC, 1.2A |
| Max Power Consumption | 65 W |
| Idle Power Consumption | 0.9 W |
| Surge Protection | 6 kV |
| Installation | Desktop / Wall Mounted |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 |
| MAC Address Table | 2K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Internal Cache | 768 Kbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standards | IEEE 802.3af / 802.3at |
| PoE Pinout | End-span: 1/2 (-), 3/6 (+) |
| PoE Ports | 1–4 |
| Max Port Power | 30 W |
| Total PoE Budget | 60 W |
What’s in the Box
1 × DS-3E1105P-EI V2 Smart PoE Switch
1 × Power Adapter (54V DC, 1.2A)
Installation Materials
Quick Start Guide
Why Choose the DS-3E1105P-EI V2
Designed specifically for professional CCTV/IP surveillance networks
Robust metal housing with industrial-grade surge protection
Intelligent PoE watchdog for uninterrupted camera operation
Long-distance PoE—ideal for remote camera installations
VLAN, priority, diagnostics, and loop protection built-in
Smart remote management via Hik-Partner Pro & Hik-Central
High reliability backed by Hikvision’s network technology ecosystem
