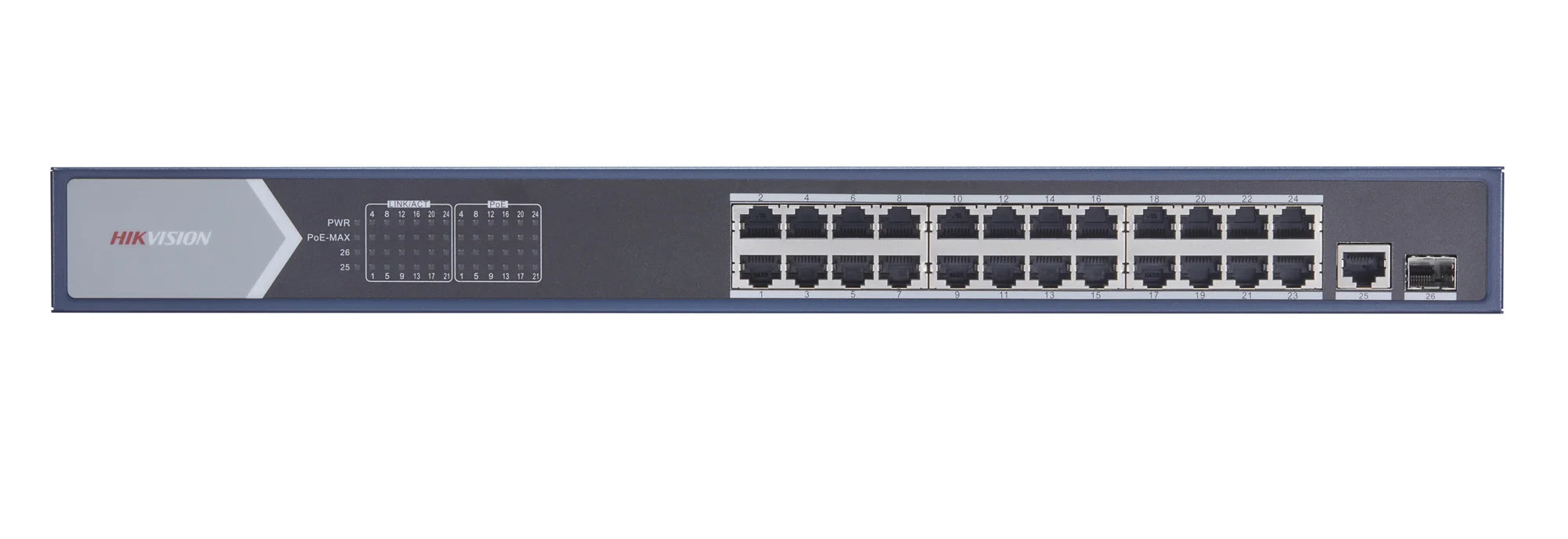

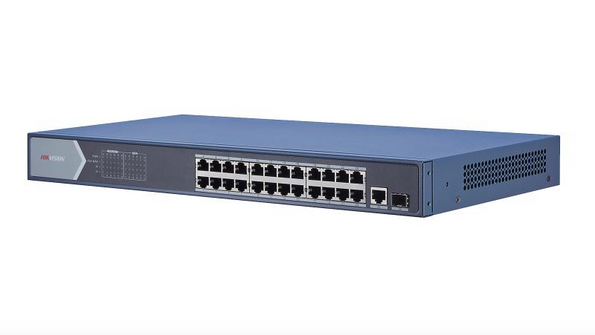

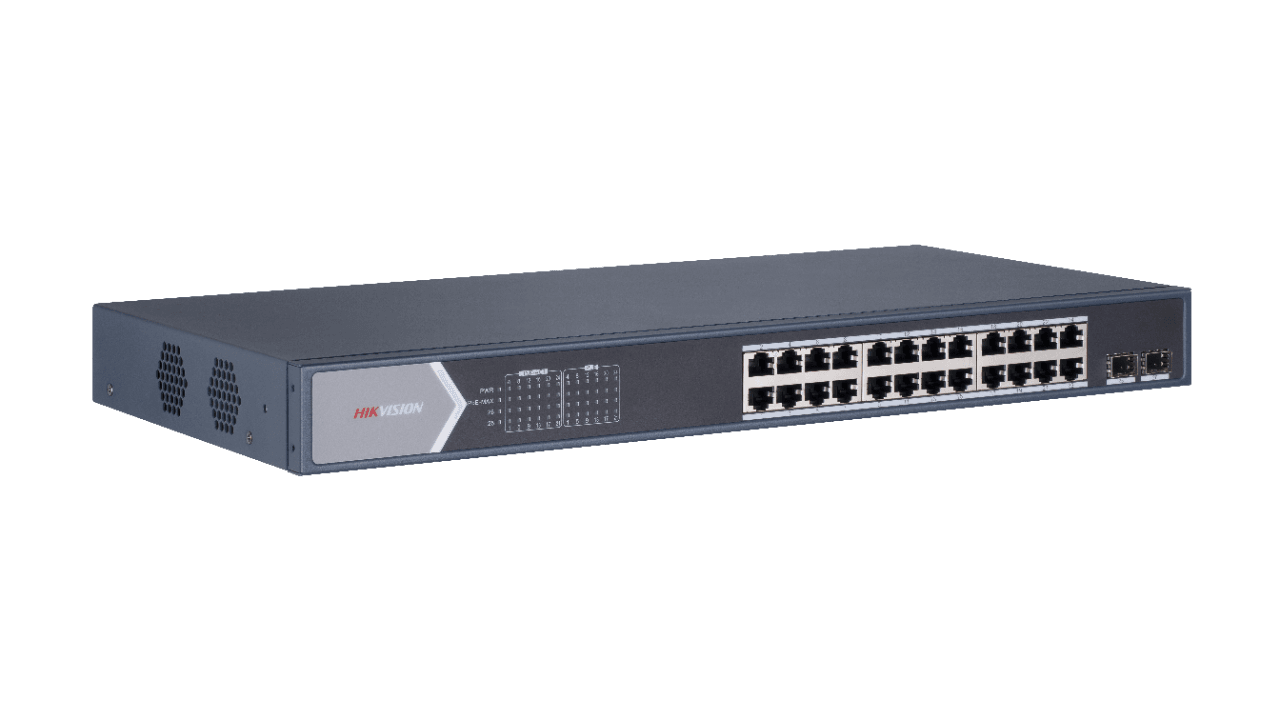

Hikvision DS-3E0526P-E 24Port Gigabit Unmanaged PoE Switch
Original price was: KSh 60,000.00.KSh 53,000.00Current price is: KSh 53,000.00.
Hikvision DS-3E0526P-E 24Port Gigabit Unmanaged PoE Switch
| Ports | 24 × Gigabit PoE + 1 × RJ45 + 1 × SFP |
| PoE Budget | 370 W |
| Max Port PoE | 30 W |
| Switching Capacity | 52 Gbps |
| Operating Temp | –10°C to 55°C |
| Installation | Desktop / Rackmount |
| Protection | 6 kV Surge |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0526P-E 24Port Gigabit Unmanaged PoE Switch
The Hikvision DS-3E0526P-E is a high-performance 24-port Gigabit Unmanaged PoE Switch designed specifically for heavy video data transmission, IP surveillance deployments, and enterprise networking. With 24 Gigabit PoE ports, Gigabit uplink Ethernet, Gigabit uplink SFP, and a 370 W PoE power budget, this switch delivers robust connectivity and stable power supply to high-demand PoE devices such as IP cameras, access points, and VoIP terminals.
Key Features
24 × Gigabit PoE Ports + Gigabit Uplink Ports
Supports 24 PoE cameras or devices, plus 1 Gigabit RJ45 uplink and 1 Gigabit SFP uplink for flexible expansion.High PoE Output Power
370 W total PoE power budget with up to 30 W per port, supporting high-power devices like PTZ cameras.6 kV Surge Protection
Industrial-grade lightning protection ensures reliability and device safety.Designed for Video Transmission
Stable, low-latency switching optimized for surveillance data streams.Store-and-Forward Architecture
Ensures accurate, reliable packet forwarding without frame errors.Metal Industrial-Grade Housing
Built for durability, heat dissipation, and long-term use.Plug-and-Play Operation
No configuration required — ideal for large-scale deployments.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal construction |
| Net Weight | 2.88 kg |
| Gross Weight | 3.74 kg |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | –10°C to 55°C |
| Storage Temperature | –40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 100–240 VAC, Max. 6.5 A |
| Max Power Consumption | 400 W |
| Idle Power Consumption | 30 W |
| Installation Mode | Desktop or Rackmount |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 24 × Gigabit PoE + 1 × Gigabit RJ45 + 1 × Gigabit SFP |
| MAC Address Table | 8K |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Internal Cache | 4.1 Mbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standards | IEEE 802.3af / 802.3at |
| PoE Pins | End-span: 1/2 (+), 3/6 (–) |
| PoE Ports | Ports 1–24 |
| Max Port Power | 30 W |
| Total PoE Budget | 370 W |
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, ICES-003, RCM |
| Safety | UL 60950-1, CB, CE-LVD |
| Chemical | RoHS Compliant |
What’s in the Box
Hikvision DS-3E0526P-E Switch
Mounting ears & screws
Power cable
Quick Installation Guide
Why Choose the DS-3E0526P-E
Purpose-built for professional CCTV deployments
Supports 24 PoE cameras simultaneously
High PoE budget for PTZ and high-power IP cameras
Stable 52 Gbps switching ensures smooth 1080p/4K streaming
Plug-and-play installation
Rugged metal housing with industrial surge protection
