Hikvision DS-3E0518P-E 16Port Gigabit Unmanaged PoE Switch
Original price was: KSh 35,000.00.KSh 29,000.00Current price is: KSh 29,000.00.
Hikvision DS-3E0518P-E 16Port Gigabit Unmanaged PoE Switch
| PoE Ports | 16 × Gigabit PoE |
| Uplinks | 1 × Gigabit RJ45, 1 × Gigabit SFP |
| PoE Budget | 230 W |
| Switching Capacity | 36 Gbps |
| Max Power per Port | 30 W |
| Standards | IEEE 802.3af/at |
| Installation | Desktop / Rack |
| Operating Temp | –10°C to 55°C |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0518P-E 16Port Gigabit Unmanaged PoE Switch

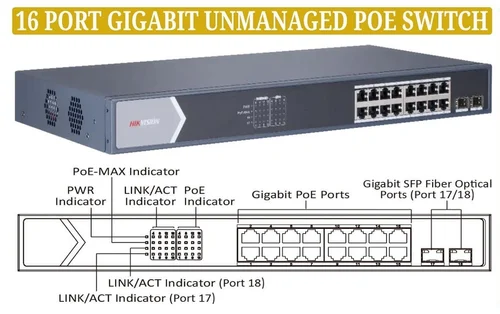

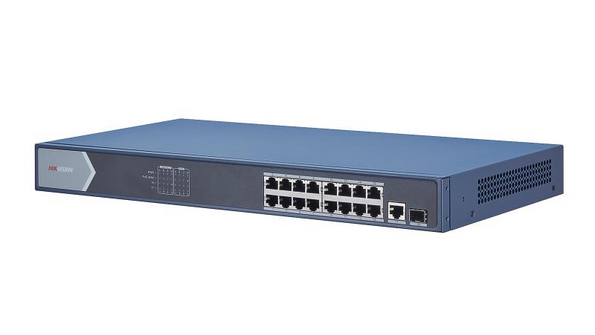

The Hikvision DS-3E0518P-E is a high-performance 16-Port Gigabit Unmanaged PoE Switch engineered specifically for video surveillance and high-bandwidth data transmission. With 16 Gigabit PoE ports, 1 Gigabit RJ45 uplink, and 1 Gigabit SFP uplink port, it delivers seamless connectivity for IP cameras, NVR systems, and enterprise LAN environments requiring simplicity, power efficiency, and reliability.
Key Features
16 × Gigabit PoE Ports
Supports IEEE 802.3af/at, delivering up to 30 W per port for IP cameras and PoE devices.Dual Gigabit Uplinks
Includes 1 × Gigabit RJ45 uplink and 1 × Gigabit SFP uplink for flexible backhaul connectivity.230 W Total PoE Power Budget
Capable of powering up to 16 devices simultaneously in demanding video surveillance environments.Industrial-Grade Reliability
Metal enclosure, 6 kV surge protection, and wide temperature range support mission-critical uptime.Store-and-Forward Switching
Ensures low-latency and error-free packet transmission.Plug-and-Play Deployment
Zero configuration required — ideal for rapid surveillance installations.Full IEEE Standards Support
Compliant with IEEE 802.3/802.3u/802.3x/802.3ab/802.3z for reliable interoperability.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 2.67 kg |
| Gross Weight | 3.53 kg |
| Dimensions | 440 × 44 × 220.8 mm |
| Operating Temperature | –10°C to 55°C |
| Storage Temperature | –40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Desktop / Rack mount (ears included) |
| Power Supply | 100–240 V AC, 50/60 Hz, Max. 4 A |
| Max. Power Consumption | 250 W |
| Idle Power Consumption | 20 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 16 × Gigabit PoE; 1 × Gigabit RJ45; 1 × Gigabit SFP |
| MAC Address Table | 8K |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.784 Mpps |
| Internal Cache | 4.1 Mbit |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Power Pins | End-span: 1/2 (+), 3/6 (–) |
| PoE Ports | Ports 1–16 |
| Max Port Power | 30 W |
| Total PoE Budget | 230 W |
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, ICES-003, RCM |
| Safety | UL 60950-1, CB, CE-LVD |
| Chemistry | CE-RoHS (2011/65/EU) |
What’s in the Box
1 × Hikvision DS-3E0518P-E Unmanaged PoE Switch
Rack-mounting ears + screws
Power cord
Quick Installation Guide
Compatible Optional Accessories
HK-SFP-1.25G-20-1550 — 20 km, 1550 nm SFP Module
HK-SFP-1.25G-20-1310 — 20 km, 1310 nm SFP Module
HK-SFP-1.25G-1310-DF-MM — Multi-mode SFP Module
HK-SFP-1.25G-20-1310-DF — 20 km SFP Module
Why Choose the DS-3E0518P-E
High-power PoE for professional surveillance setups
Dual uplinks for flexible network expansion
Rugged and reliable metal housing with surge protection
Zero-configuration deployment for quick installation
Perfect for CCTV camera networks, SMEs, and industrial use
Strong PoE budget supports power-hungry PTZ and IR cameras
