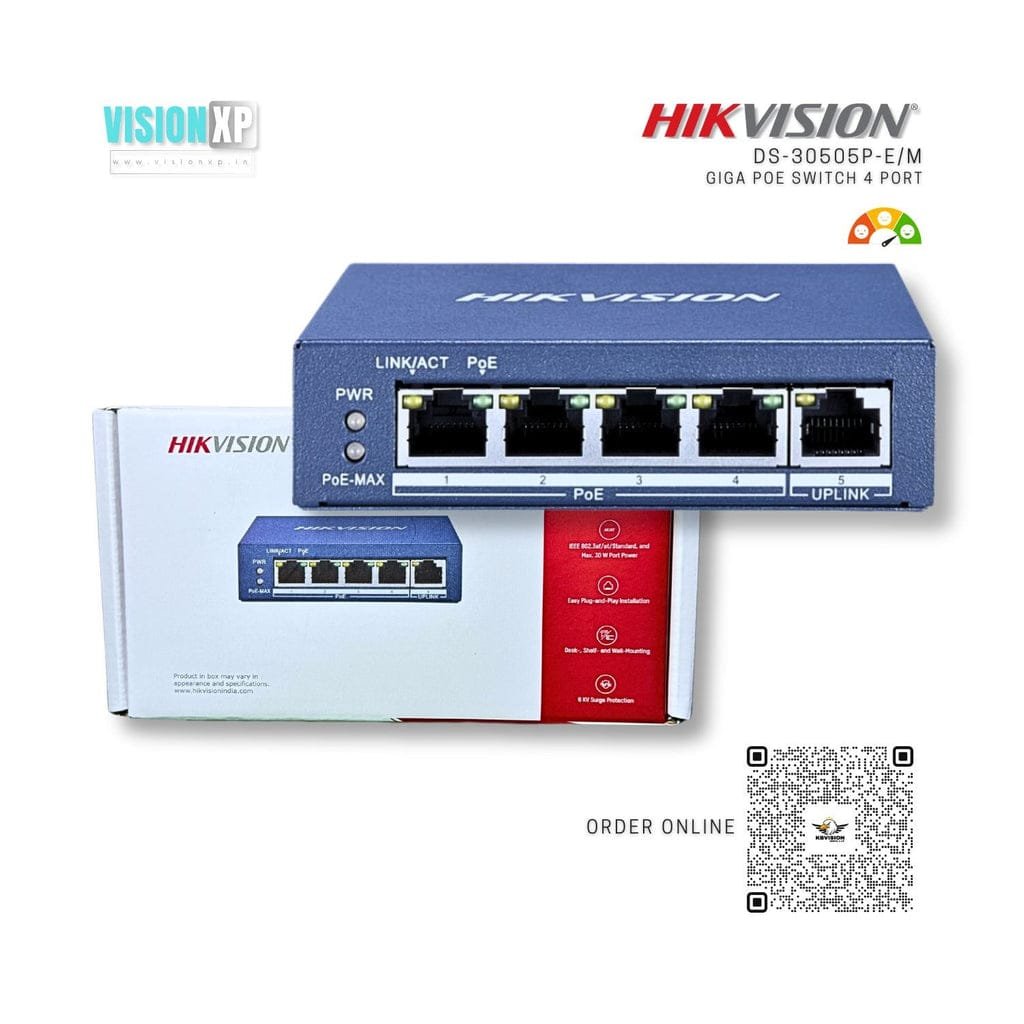

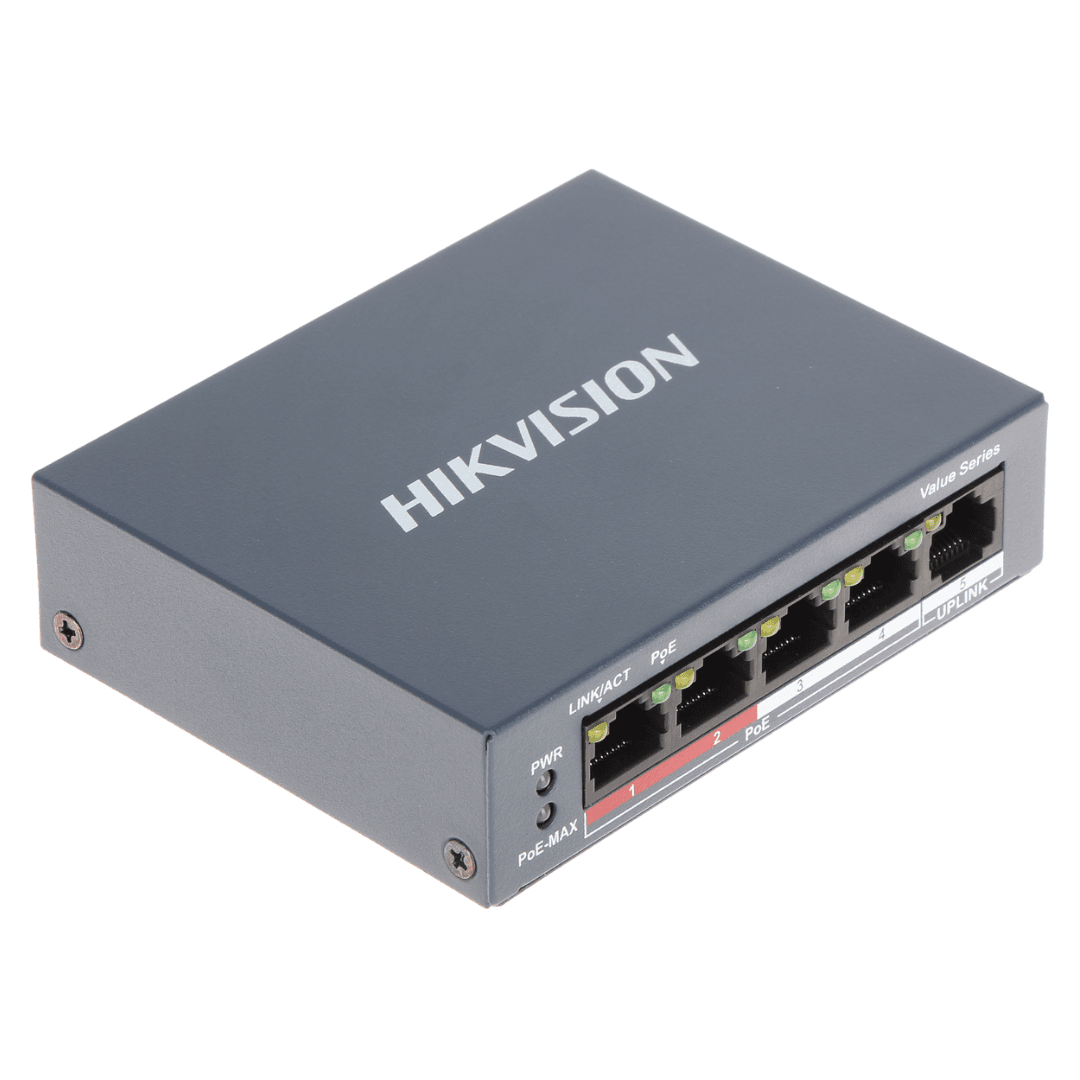

Hikvision DS-3E0505P-E/M 4Port Gigabit Unmanaged PoE Switch
The Hikvision DS-3E0505P-E/M is a compact, high-efficiency 4-Port Gigabit Unmanaged PoE Switch engineered for small to medium surveillance deployments, SOHO networks, and branch office expansions. Equipped with 4 Gigabit PoE ports compliant with IEEE 802.3af/at standards and a dedicated Gigabit uplink port, this switch delivers reliable high-speed connectivity for IP cameras, wireless access points, and VoIP devices.
Key Features
-
4 × Gigabit PoE Ports + 1 × Gigabit Uplink
-
Supports IEEE 802.3af/802.3at PoE
-
6 kV surge protection for all PoE ports
-
PoE power management to prevent overload
-
Gigabit network access for high-speed data and surveillance streaming
-
Wire-speed forwarding (non-blocking)
-
Store-and-forward switching for enhanced transmission reliability
-
High-strength metal shell for improved durability
-
Fan-free silent design offering long-term reliability
-
Compact footprint with desktop and wall-mount options
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 0.265 kg |
| Gross Weight | 0.759 kg |
| Dimensions | 105 × 27.6 × 83.1 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 48 V DC, 0.8 A |
| Max. Power Consumption | 38 W |
| Idle Power Consumption | 3 W |
| Installation Mode | Desktop / Wall-Mount |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 4 × Gigabit PoE + 1 × Gigabit RJ45 uplink |
| MAC Address Table | 2K |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Internal Cache | 1 Mbit |
PoE Specifications
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Type | End-span (Pin 1/2 +, 3/6 –) |
| PoE Ports | Ports 1–4 |
| Max Port Power | 30 W |
| Total PoE Budget | 35 W |
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, ICES-003, RCM |
| Safety | UL 60950-1, CB, CE-LVD |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
-
1 × Hikvision DS-3E0505P-E/M PoE Switch
-
Power Adapter (48 V DC)
-
Mounting Screws
-
Quick Installation Guide
Why Choose the DS-3E0505P-E/M
-
Compact, plug-and-play PoE solution for IP cameras and access points
-
Strong surge protection ensures long-term reliability
-
Industrial-grade metal housing with silent operation
-
High-performance Gigabit access with non-blocking switching
-
Ideal for CCTV setups, small offices, and remote device powering
