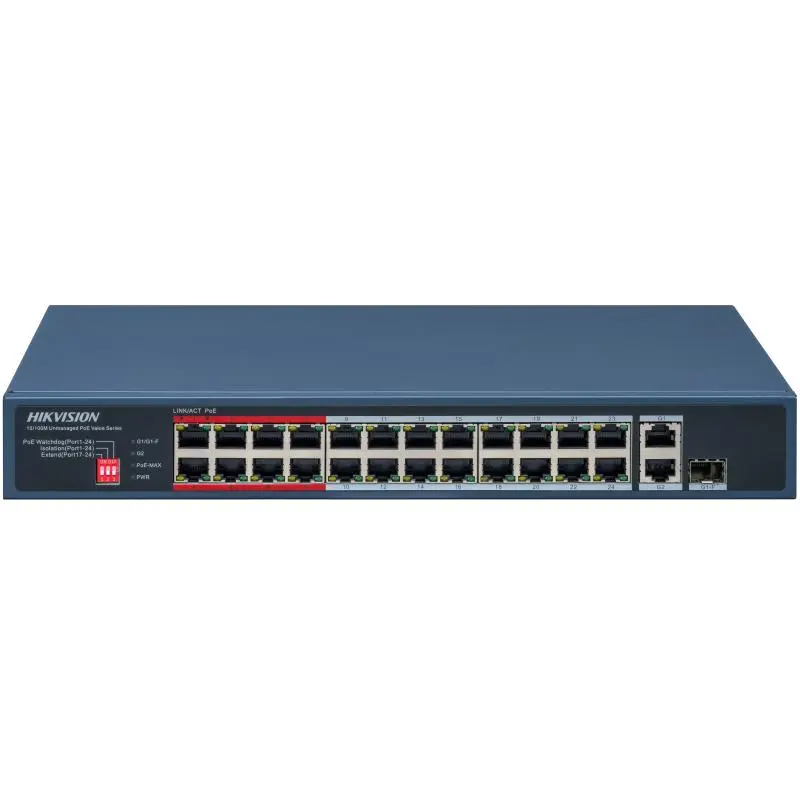

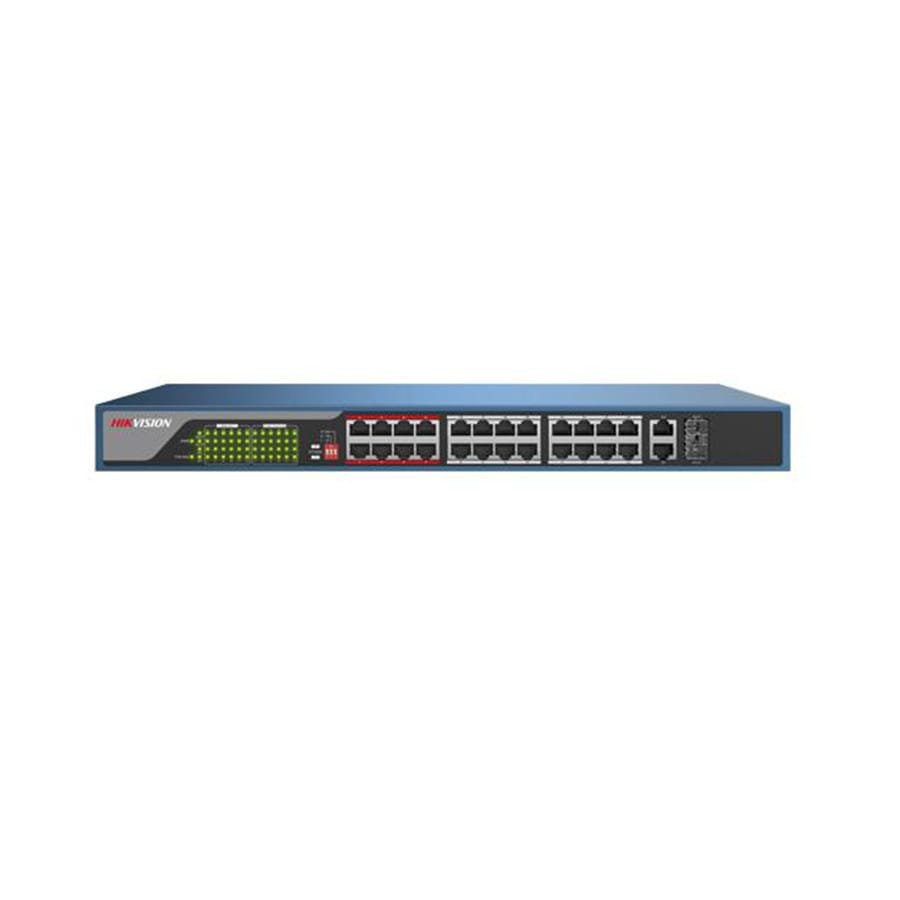

Hikvision DS-3E0326P-E/M(C) 24Port Unmanaged PoE Switch
Original price was: KSh 45,000.00.KSh 32,000.00Current price is: KSh 32,000.00.
Hikvision DS-3E0326P-E/M(C) 24Port Fast Ethernet Unmanaged PoE Switch
| Ports | 24 × Fast Ethernet PoE, 1 × Gigabit RJ45, 1 × Gigabit Combo |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.55 Mpps |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max Port Power | 30 W |
| PoE Budget | 230 W |
| Installation | Desk or Wall Mount |
| Operating Temp | 0°C to 45°C |
| Surge Protection | 6 kV |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0326P-E/M(C) 24Port Fast Ethernet Unmanaged PoE Switch
The Hikvision DS-3E0326P-E/M(C) 24Port Fast Ethernet Unmanaged PoE Switch is a 24-Port Fast Ethernet Unmanaged PoE Switch designed for surveillance and enterprise networks requiring reliable, high-performance power-over-Ethernet (PoE) delivery. With intelligent PoE management, long-range PoE transmission up to 300 meters, and robust surge protection, this switch ensures both network stability and device longevity in demanding installations.
Key Features
24× Fast Ethernet PoE Ports
Supports IEEE 802.3af/at for powering IP cameras, access points, and other network devices.Long-Range PoE Transmission
Extends the connection distance to 300 meters on ports 17–24 for flexible deployment.Intelligent PoE Management
Dynamically manages power allocation to prevent overload and extend switch lifespan.VIP Port Design
Prioritizes critical data transmission during network congestion for video security applications.PoE Watchdog Functionality
Auto-detects and restarts unresponsive IP cameras for uninterrupted surveillance.Robust Industrial Design
Metal shell construction with 6 kV surge protection ensures stable operation in harsh environments.Flexible Installation
Desk-mounted or wall-mounted configuration for versatile deployment scenarios.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 1.90 kg |
| Gross Weight | 2.65 kg |
| Dimensions (W × H × D) | 335 × 44.5 × 226 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Desk-Mounted, Wall-Mounted |
| Power Supply | 100–240 VAC, 50/60 Hz, Max. 4 A |
| Max Power Consumption | 250 W |
| Idle Power Consumption | 20 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 24 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit Combo |
| MAC Address Table | 8K |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Internal Cache | 4 Mbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Pin | 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1–24 |
| Max Port Power | 30 W per port |
| Total PoE Budget | 230 W |
| Adaptive 4/8-Core Supply | Reduces power loss on cables |
Advanced Functions
Long Range PoE: Ports 17–24 support up to 300 m transmission, dependent on device and cabling.
Port Isolation: Enhances security by restricting communication between ports in the same isolation group.
PoE Watchdog: Automatically restarts unresponsive devices for consistent network uptime.
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL 60950-1, CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
1 × Hikvision DS-3E0326P-E/M(C) 24-Port Fast Ethernet PoE Switch
Power Cable
Quick Installation Guide
Why Choose the DS-3E0326P-E/M(C)
24-port PoE design ideal for CCTV and IP surveillance networks.
Long-range transmission up to 300 m for flexible deployment.
Intelligent PoE management and adaptive power supply for energy efficiency.
VIP port prioritization ensures smooth video delivery.
Auto-recovery of unresponsive devices with PoE Watchdog.
Metal chassis with 6 kV surge protection for reliability in harsh environments.
