Hikvision DS-3E0318P-E(C) 100 Mbps Long Range PoE Switch
Original price was: KSh 30,000.00.KSh 23,000.00Current price is: KSh 23,000.00.
Hikvision DS-3E0318P-E(C) 100 Mbps Long Range PoE Switch
| Ports | 16 × 10/100 Mbps PoE, 2 × Gigabit Combo |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max Port Power | 30 W |
| Total PoE Budget | 225 W |
| Long Range PoE | Up to 300 m |
| Switching Capacity | 7.2 Gbps |
| Forwarding Rate | 5.36 Mpps |
| VIP Port Support | Ports 1–8 |
| Surge Protection | 6 kV |
| Installation | Rack-mount |
| Operating Temp | 0°C to 45°C |
| Chassis | Metal |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

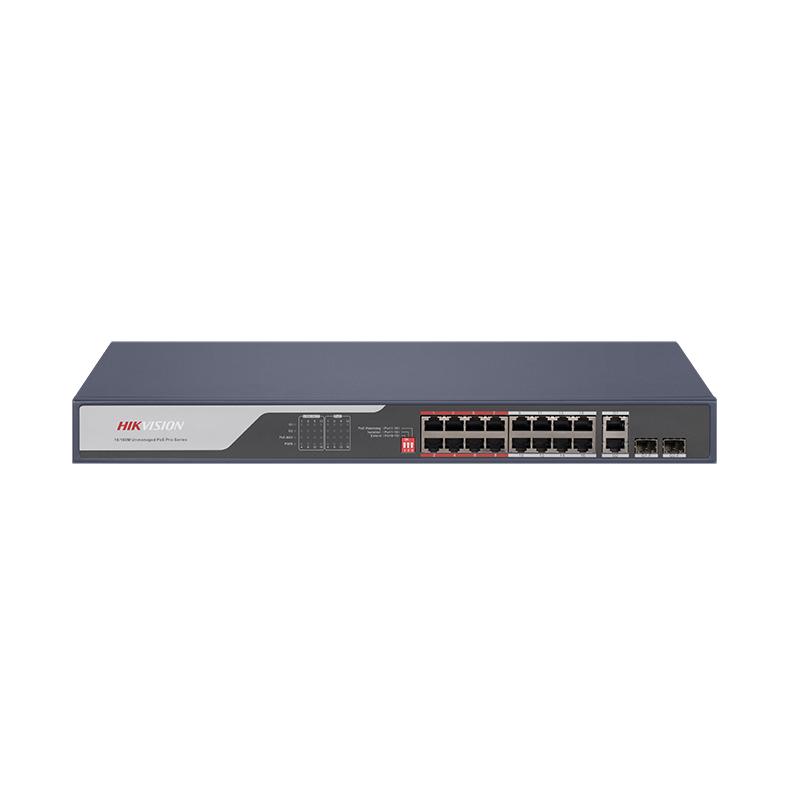

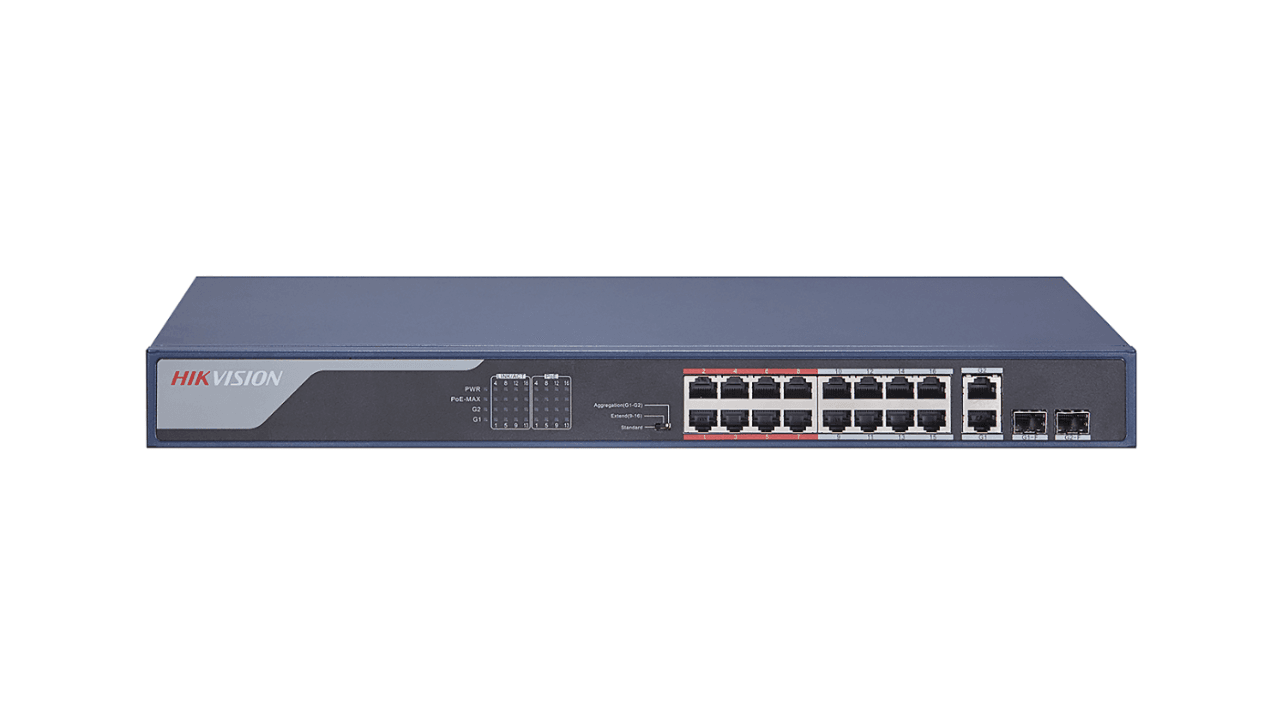

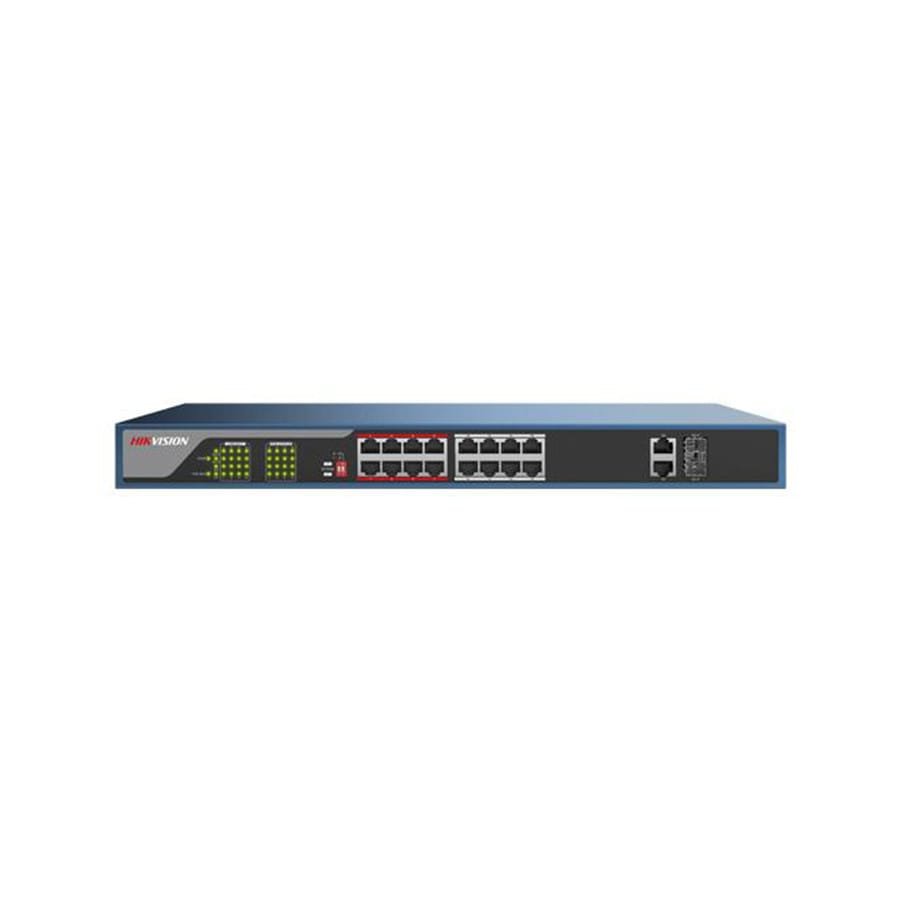

Hikvision DS-3E0318P-E(C) 100 Mbps Long Range PoE Switch
The Hikvision DS-3E0318P-E(C) is a Layer 2 PoE switch designed for small to medium-sized surveillance and enterprise networks, providing stable data upload, intelligent PoE management, and long-range transmission. With 16 PoE-enabled 10/100 Mbps ports and 2 Gigabit combo ports, this switch supports advanced IEEE 802.3af/at PoE standards, delivering up to 30 W per port and a total power budget of 225 W.
Key Features
16 × 10/100 Mbps PoE Ports + 2 Gigabit Combo Ports
Provides flexible connectivity for network devices and surveillance cameras.Long Range PoE Transmission
Supports up to 300 meters over standard network cables (depending on device and cable quality).Intelligent PoE Management
Monitors and manages connected devices with PoE watchdog to auto-restart unresponsive cameras.Port Isolation for Enhanced Security
Isolated ports cannot communicate internally but maintain external connectivity.Robust Reliability
Metal chassis with 6 kV surge protection ensures safe operation in demanding environments.VIP Port Forwarding
Prioritizes data from critical ports when bandwidth is constrained.Energy-Efficient & High-Power Design
Maximum consumption of 250 W, idle power only 25 W.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 2.6 kg |
| Gross Weight | 3.185 kg |
| Dimensions (W × H × D) | 440 × 44 × 220.8 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Rack mount (mounting ears included) |
| Power Supply | 100–240 V AC, 50/60 Hz, Max. 4 A |
| Max Power Consumption | 250 W |
| Idle Power Consumption | 25 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 16 × 10/100 Mbps PoE, 2 × Gigabit Combo |
| MAC Address Table | 16 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbit |
PoE Power
| Feature | Specification |
|---|---|
| Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Pin Assignment | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | 1–16 |
| Max Port Power | 30 W |
| Total PoE Budget | 225 W |
Advanced Features
Long Range PoE: Ports 9–16 support up to 300 m transmission
Port Isolation: Ports 1–16 support isolation for enhanced security
PoE Watchdog: Automatically detects and restarts unresponsive devices
VIP Ports: Ports 1–8 prioritize traffic during bandwidth contention
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, ICES, RCM |
| Safety | UL 60950-1, CB, CE-LVD (IEC 62368-1) |
| Chemistry | CE-RoHS |
What’s in the Box
1 × Hikvision DS-3E0318P-E(C) PoE Switch
Rack-mounting ears and screws
Quick Installation Guide
Power Cable
Why Choose DS-3E0318P-E(C)
Layer 2 PoE switch ideal for IP cameras and surveillance networks
Supports long-range PoE transmission up to 300 m
Intelligent PoE and watchdog features for automated device recovery
Robust industrial-grade metal chassis with surge protection
Port isolation and VIP forwarding for enhanced network security and performance
Rack-mountable design with energy-efficient operation
