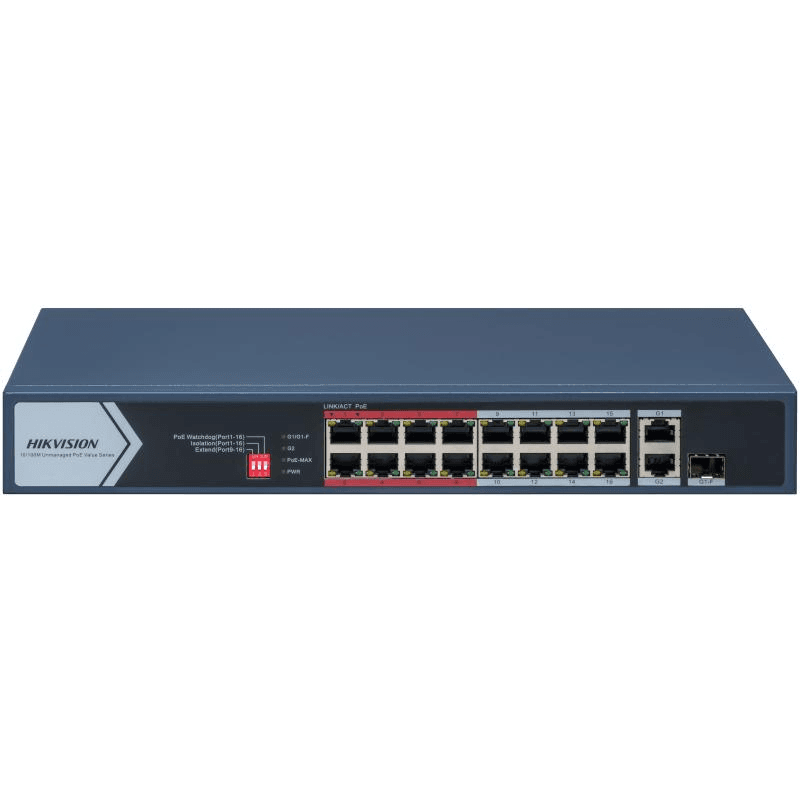

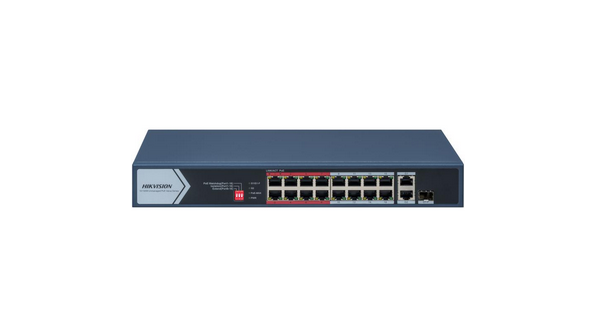

Hikvision DS-3E0318P-E/M(C) 16Port PoE Switch
Original price was: KSh 32,000.00.KSh 23,000.00Current price is: KSh 23,000.00.
Hikvision DS-3E0318P-E/M(C) 16Port PoE Switch + 2 Gigabit Uplink Ports
| Total Ports | 18 (16 PoE + 2 uplinks) |
| PoE Budget | 130 W |
| Long-Range | Up to 300 m (Ports 9–16) |
| Max Port Power | 30 W |
| Uplink Speed | Gigabit |
| Enclosure | Metal |
| Surge Protection | 6 kV |
| Mounting | Desk / Wall |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0318P-E/M(C) 16Port PoE Switch + 2 Gigabit Uplink Ports
The Hikvision DS-3E0318P-E/M(C) 16Port PoE Switch + 2 Gigabit Uplink Ports is a robust Layer 2 100 Mbps PoE switch engineered for surveillance, access networks, and structured deployments requiring stable long-distance PoE transmission. Designed with 16× 10/100 Mbps PoE ports, 1× Gigabit uplink, and 1× Gigabit combo port, this model provides an optimal blend of power, throughput, and long-range performance for IP camera networks.
Key Features
16 × 10/100 Mbps PoE Ports + 2 Gigabit Uplinks
Provides stable access-layer connectivity with fast uplink bandwidth for NVRs, routers, or core switches.Up to 300 m Long-Range PoE
Dedicated long-range mode (Ports 9–16) extends PoE transmission distance up to 300 meters (camera/cable dependent).Intelligent PoE Management
Automatically regulates power allocation to prevent overload and extend switch lifespan.8-Core Adaptive Power Supply
Reduces cable power loss for more efficient PoE delivery, especially on long runs.VIP Port Priority for Video Stability
Ensures critical camera data is prioritized during network congestion.6 kV Surge Protection
Built-in lightning protection enhances reliability in outdoor and electrically noisy environments.150 W Maximum Power Consumption
Efficient energy design with 130 W PoE power budget for multi-camera deployments.
Specifications
General
| Specification | Details |
|---|---|
| Shell | Metal |
| Net Weight | 1.80 kg |
| Gross Weight | 2.58 kg |
| Dimensions | 335 × 44.5 × 175.8 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | –40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 100–240 V AC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Idle Power Consumption | 20 W |
| Installation Mode | Desk-Mount / Wall-Mount |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Value |
|---|---|
| Ports | 16 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit combo |
| MAC Address Table | 8K |
| Switching Capacity | 7.2 Gbps |
| Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbit |
PoE Power Supply
| Feature | Value |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Power Pins | 1/2(-), 3/6(+), 4/5(+), 7/8(-) (8-pin powering) |
| PoE Ports | Ports 1–16 |
| Max Port Power | 30 W |
| Total PoE Budget | 130 W |
Dialing / Long-Range Function
Ports 9–16 support long-range mode up to 300 m
Actual performance depends on camera model, cable quality, and power draw
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, EN 55032, IEC 61000-3-2/3-3, EN 50130-4, ICES-003, RCM |
| Safety | UL 60950-1, CB (IEC 62368-1), CE-LVD |
| Chemistry | RoHS, WEEE, REACH |
Available Model
DS-3E0318P-E/M(C)
Typical Application
Ideal for:
IP CCTV surveillance networks
Long-distance camera installations
Small-to-medium business networks
Industrial environments requiring surge protection
Deployments needing PoE power budget optimization
Physical Interfaces
Front Panel
16 × 10/100 Mbps PoE access ports
1 × Gigabit RJ45 uplink
1 × Gigabit combo uplink
LED indicators for PoE, link, activity, and power
Rear Panel
AC power input
Ventilation section (fanless)
