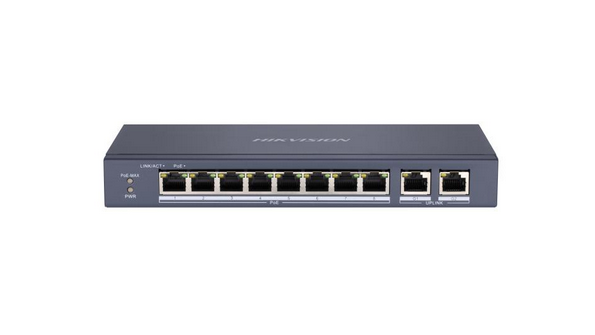

Hikvision DS-3E0310P-E/M 8Port Unmanaged PoE Switch
Original price was: KSh 11,000.00.KSh 9,500.00Current price is: KSh 9,500.00.
Hikvision DS-3E0310P-E/M 8Port Fast Ethernet Unmanaged PoE Switch
| Ports | 8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 |
| PoE Standard | IEEE 802.3af/at |
| Max Port Power | 30 W |
| PoE Budget | 60 W |
| Switching Capacity | 5.6 Gbps |
| Forwarding Rate | 4.17 Mpps |
| Installation | Desk or Wall mount |
| Operating Temp | 0°C to 40°C |
| Enclosure | Metal, Fanless |
| Surge Protection | 6 kV |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0310P-E/M 8Port Fast Ethernet Unmanaged PoE Switch
The Hikvision DS-3E0310P-E/M 8Port Fast Ethernet Unmanaged PoE Switch is a compact and reliable 8-port Fast Ethernet unmanaged PoE switch designed for small to medium-scale networks, CCTV deployments, and IP surveillance systems. Featuring 8 PoE-enabled 10/100 Mbps ports and 2 Gigabit uplink ports, it allows both data and power transmission over a single cable, simplifying network installations and reducing cabling costs.
Key Features
8 PoE-Enabled 10/100 Mbps Ports
Supplies power and data simultaneously, compatible with IEEE 802.3af/at devices.2 Gigabit Uplink Ports
Ensures high-speed backbone connectivity to the network core.Fanless & Silent Design
Metal shell ensures efficient heat dissipation without fans, ideal for office or home deployments.Wire-Speed Forwarding
Supports store-and-forward switching for low-latency, high-efficiency packet transmission.Long-Range PoE Transmission
Ports support up to 300 m depending on camera or device type.Advanced Surge Protection
6 kV surge protection on PoE ports safeguards connected devices from electrical damage.Plug-and-Play Installation
Supports desk or wall mounting, enabling flexible deployment without complex setup.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 0.555 kg |
| Gross Weight | 1.2 kg |
| Dimensions | 217.6 × 103.35 × 27.8 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Desk or Wall mount |
| Power Supply | 48 VDC, 1.35 A |
| Max Power Consumption | 65 W |
| Idle Power Consumption | 5 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 8 × 10/100 Mbps PoE, 2 × Gigabit RJ45 |
| MAC Address Table | 8K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 4 Mbit |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1–8 |
| Max Port Power | 30 W per port |
| PoE Power Budget | 60 W |
Dialing & Long-Range Transmission
Supports up to 300 m transmission on PoE ports (actual performance varies by device and cable conditions).
Certifications
| Category | Certification |
|---|---|
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC, ICES-003, RCM |
| Safety | UL 60950-1, CB (IEC 62368-1), CE-LVD |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
1 × Hikvision DS-3E0310P-E/M Unmanaged PoE Switch
Power Adapter / Cable
Desk Mount or Wall Mount Hardware
Quick Installation Guide
Why Choose the DS-3E0310P-E/M
Reliable fanless design for silent, durable operation
Compact 8-port PoE solution with Gigabit uplinks for small networks
IEEE 802.3af/at compliance ensures compatibility with cameras, APs, and VoIP devices
Long-range PoE transmission up to 300 m
Advanced surge protection (6 kV) enhances device safety
Plug-and-play simplicity with no complex configuration required
