Hikvision DS-3E0109P-E/M(B) 8Port Unmanaged PoE Switch
Original price was: KSh 18,000.00.KSh 12,300.00Current price is: KSh 12,300.00.

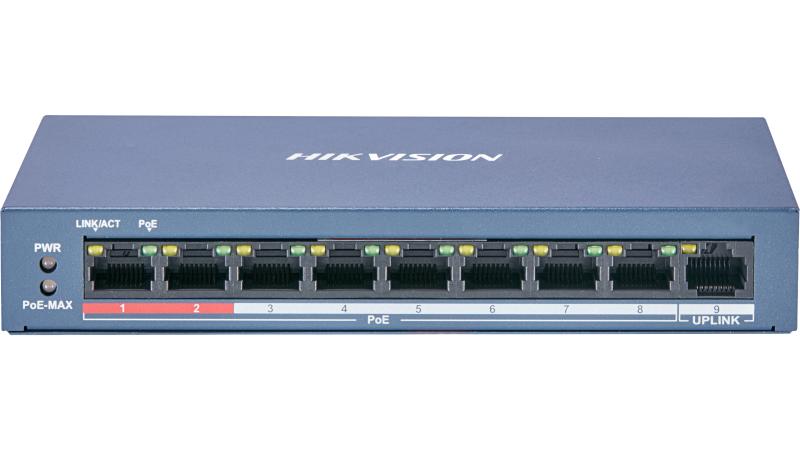

Hikvision DS-3E0109P-E/M(B) 8Port Fast Ethernet Unmanaged PoE Switch
| Ports | 8 × PoE Fast Ethernet + 1 × Uplink |
| PoE Budget | 60 W |
| Max Port Power | 30 W |
| Long-Range Mode | Up to 300 m |
| Surge Protection | 6 kV |
| Switching Capacity | 1.8 Gbps |
| Management | Unmanaged |
| Installation | Desktop / Wall-mount |
| Operating Temp | 0°C to 40°C |
| Enclosure | Metal |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0109P-E/M(B) 8Port Fast Ethernet Unmanaged PoE Switch
The Hikvision DS-3E0109P-E/M(B) 8Port Fast Ethernet Unmanaged PoE Switch is a robust 8-port Fast Ethernet Unmanaged PoE switch engineered for surveillance networks, SMB environments, and remote PoE deployments requiring long-distance power and data transmission. Built with a metal enclosure, 6 kV surge protection, and a generous 60 W PoE budget, this switch ensures stable power delivery and reliable operation even in harsh electrical environments.
Key Features
8 × 10/100 Mbps PoE Ports + 1 × 10/100 Mbps Uplink Port
Supports simultaneous data and power transmission for up to eight PoE devices.Intelligent PoE Power Management
Automatically regulates power when total consumption approaches the 60 W budget, increasing switch lifespan.Up to 300 m Long-Range PoE Transmission
Extends PoE distance far beyond the standard 100 m, ideal for remote CCTV installations.4/8-Core Adaptive Power Supply
8-core powering minimizes cable loss, delivering more stable power over long distances.6 kV Surge Protection
Built-in lightning protection prevents damage from electrical surges.VIP Port for Prioritized Transmission
Ensures critical video streams are transmitted smoothly during network congestion.Unmanaged Plug-and-Play Operation
Simple deployment with no configuration required.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 0.35 kg |
| Gross Weight | 0.89 kg |
| Dimensions | 170 × 27.6 × 93.1 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 48 V DC, 1.35 A |
| Max. Power Consumption | 65 W |
| Power Consumption (Idle) | 5 W |
| Installation Modes | Desktop / Wall-mounted |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 8 × 10/100 Mbps PoE, 1 × 10/100 Mbps uplink |
| MAC Address Table | 2K |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.34 Mpps |
| Internal Cache | 1 Mbit |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standards | IEEE 802.3af / IEEE 802.3at |
| PoE Power Pins | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1–8 |
| Max Port Power | 30 W |
| Total PoE Budget | 60 W |
Dialing Function
| Feature | Specification |
|---|---|
| Long-Range Mode | Ports 1–8 support up to 300 m transmission* |
*Distance depends on camera model and cable quality.
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL 60950-1, CB, CE-LVD |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box

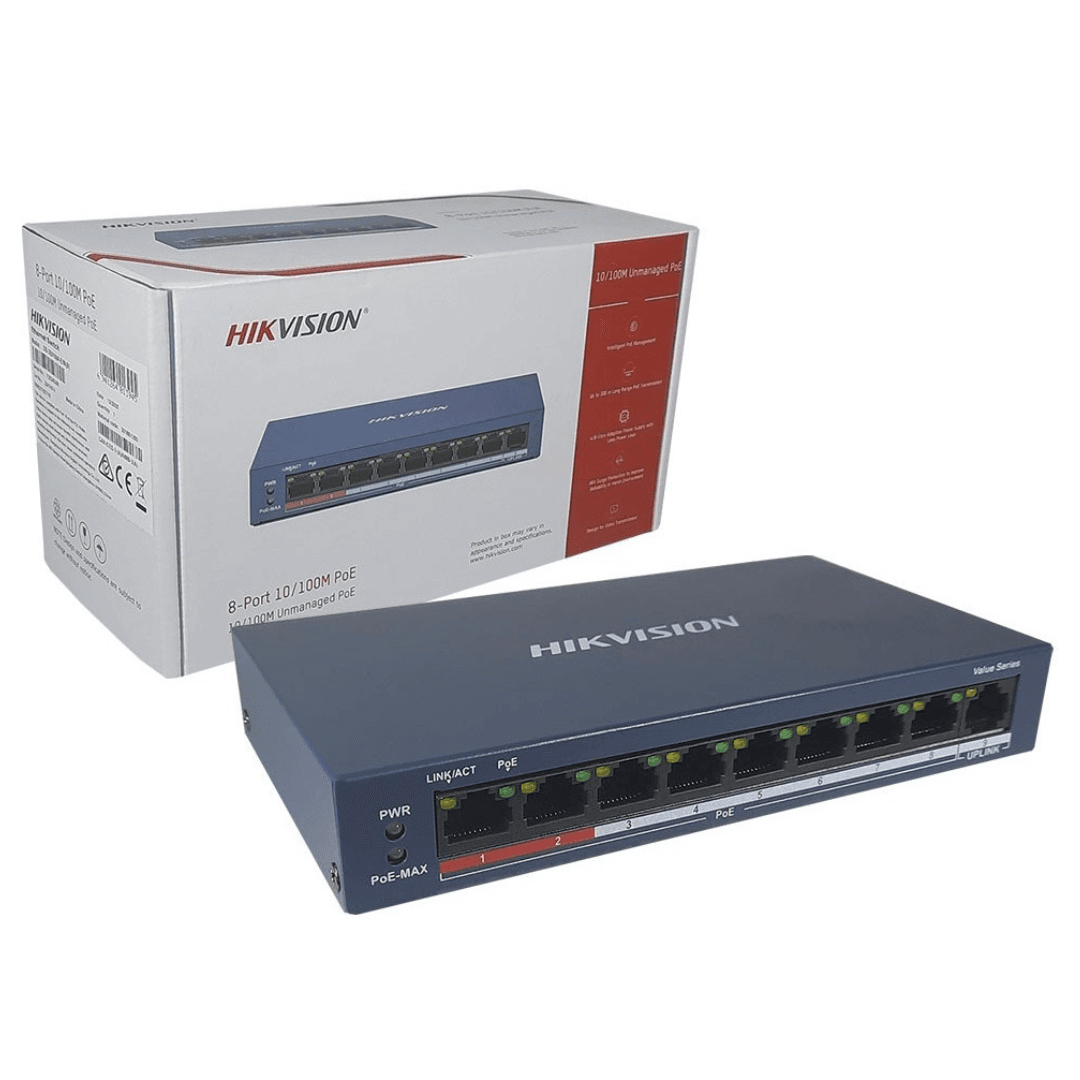

1 × Hikvision DS-3E0109P-E/M(B) PoE Switch
1 × Power Adapter (48 V DC)
Quick Installation Guide
Mounting Accessories (if included by region)
Why Choose the DS-3E0109P-E/M(B)
Specially optimized for CCTV and IP surveillance
Long-range PoE up to 300 m minimizes extra hardware costs
Strong surge protection for outdoor or unstable power environments
Intelligent power distribution safeguards connected devices
VIP port ensures video reliability during congestion
Simple plug-and-play deployment—no configuration needed
