Hikvision DS-3E0106P-E/M 4Port Fast Unmanaged PoE Switch
Original price was: KSh 8,000.00.KSh 5,200.00Current price is: KSh 5,200.00.

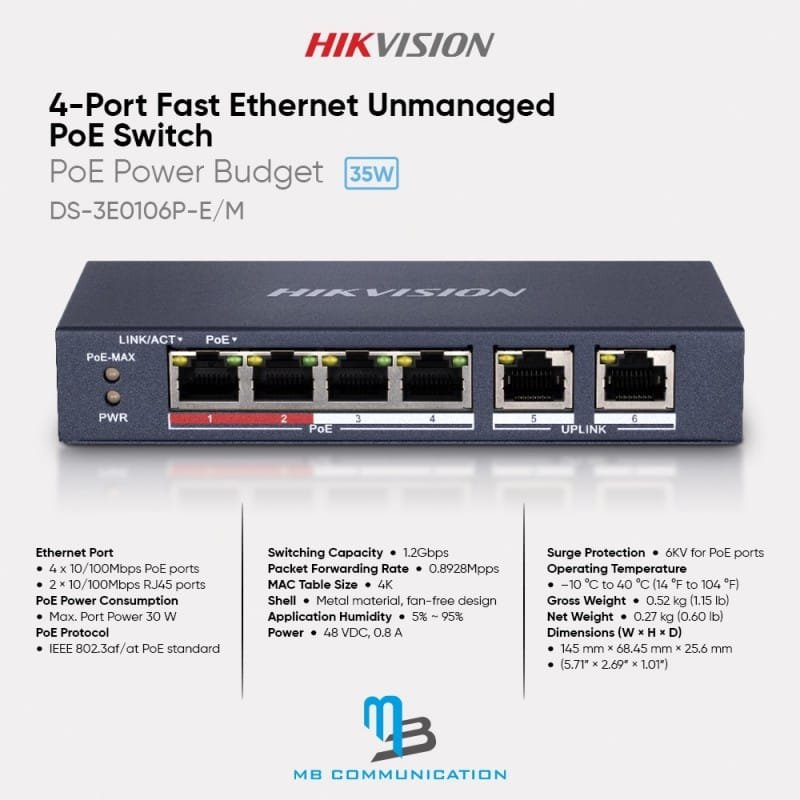

Hikvision DS-3E0106P-E/M 4Port Fast Unmanaged PoE Switch
| Ports | 4 × 10/100 Mbps PoE, 2 × 10/100 Mbps uplink |
| PoE Standard | IEEE 802.3af/at |
| Max Port Power | 30 W |
| Total PoE Budget | 35 W |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Kbits |
| Installation | Desk or Wall Mount |
| Operating Temp | 0°C to 40°C |
| Enclosure | Metal, Fanless |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Hikvision DS-3E0106P-E/M 4Port Fast Unmanaged PoE Switch
The Hikvision DS-3E0106P-E/M is a compact unmanaged Fast Ethernet switch with PoE support, designed for small-scale networks, surveillance setups, and office deployments requiring reliable data and power delivery over a single cable. It features 4× 10/100 Mbps PoE ports and 2× 10/100 Mbps uplink ports, providing seamless integration for IP cameras, access points, and VoIP devices.
Key Features
4× 10/100 Mbps PoE Ports + 2× 10/100 Mbps Uplink Ports
Combines data and power delivery for IP cameras and other PoE devices.PoE Standards Compliance
Supports IEEE 802.3af/at with maximum 30 W per port and 35 W total budget.Long-Range Transmission
Ports 1–4 support distances up to 300 meters, depending on cable type and device specifications.Wire-Speed Forwarding
Ensures efficient packet processing with store-and-forward switching.Robust Build & Silent Operation
Metal shell with fanless thermal design guarantees durability and low noise.Surge Protection
Up to 6 kV protection on PoE ports for enhanced network safety.VIP Port Functionality
Ports 1–2 can be prioritized for critical traffic when bandwidth is constrained.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal |
| Net Weight | 0.27 kg |
| Gross Weight | 0.52 kg |
| Dimensions | 145 × 68.45 × 25.6 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Desk-mounted, wall-mounted |
| Power Supply | 48 VDC, 0.8 A |
| Max Power Consumption | 38 W |
| Idle Power Consumption | 3 W |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 4 × 10/100 Mbps PoE, 2 × 10/100 Mbps RJ45 |
| MAC Address Table | 2 K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Kbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pinout | 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | 1–4 |
| Max Port Power | 30 W |
| Total PoE Budget | 35 W |
Dialing / Long-Range Function
Ports 1–4 support up to 300 meters transmission
Performance may vary depending on cable type and connected devices
Software Features
VIP Ports: Ports 1–2 prioritize traffic for bandwidth-critical devices
Wire-Speed Switching: Ensures stable, low-latency forwarding
Store-and-Forward: Reliable packet handling for all connected devices
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, IC, RCM |
| Safety | UL 60950-1, CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
1 × Hikvision DS-3E0106P-E/M 4-Port Unmanaged PoE Switch
Quick Installation Guide
Power Cable
Why Choose the DS-3E0106P-E/M
Compact, high-performance Fast Ethernet switch for small networks
Integrated PoE support for IP cameras and access points
Long-range transmission up to 300 meters for flexible deployment
Robust metal enclosure with fanless, silent operation
Surge protection up to 6 kV for network reliability
VIP ports for traffic prioritization of critical devices
