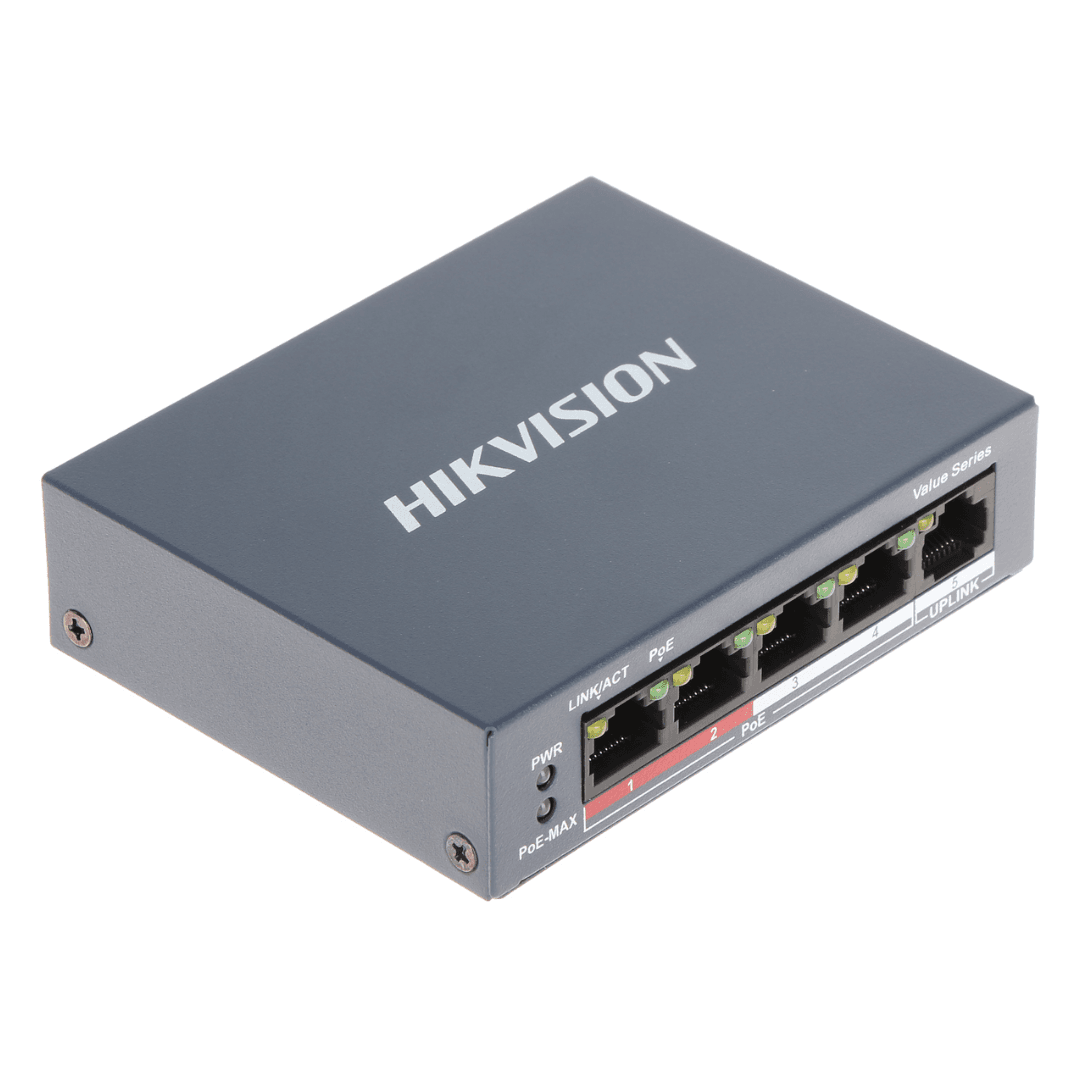

Hikvision DS-3E0105P-E(B) 4Port Fast Ethernet Unmanaged PoE Switch
The Hikvision DS-3E0105P-E(B) 4Port Fast Ethernet Unmanaged PoE Switch is a 4-port Fast Ethernet unmanaged PoE switch engineered for small-scale networks, IP surveillance, and IoT applications that require reliable power delivery over Ethernet. Designed with intelligent PoE management, the switch automatically allocates power to connected devices, preventing overload and extending switch lifespan. With a metal fanless enclosure, built-in 6 kV surge protection, and support for long-range PoE transmission up to 300 meters, it ensures dependable performance even in harsh environments.
Key Features
-

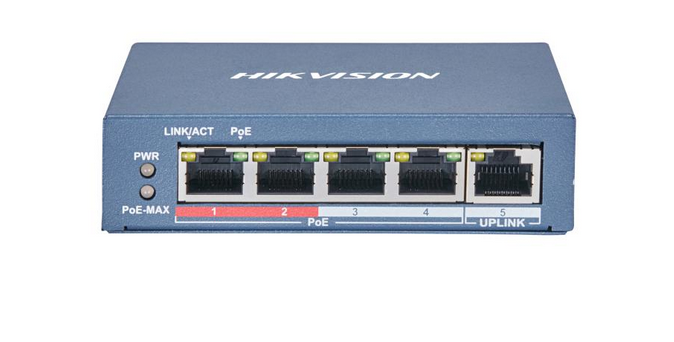

4× 10/100 Mbps PoE Ports + 1× RJ45 Uplink
Provides high-speed connectivity with integrated PoE for powering IP devices. -
Intelligent PoE Management
Automatically allocates PoE to prevent overload and maximize switch longevity. -
Long-Range PoE Transmission
Supports up to 300 meters on ports 1–4, ideal for extended surveillance coverage. -
High Efficiency Power Supply
4/8-core adaptive design reduces power loss and improves energy efficiency. -
VIP Port for Critical Traffic
Ports 1–2 ensure priority forwarding during network congestion. -
Robust Industrial Design
Metal, fanless enclosure with 6 kV surge protection for reliability in harsh conditions. -
Easy Installation
Supports desk or wall mounting with compact footprint for small spaces.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | Metal, fanless design |
| Net Weight | 0.2 kg |
| Gross Weight | 0.74 kg |
| Dimensions (W×H×D) | 105 × 27.6 × 83.1 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Relative Humidity | 5%–95% (non-condensing) |
| Power Supply | 48 VDC, 1.35 A |
| Max Power Consumption | 65 W |
| Idle Power Consumption | 5 W |
| Installation Mode | Desk-mounted, wall-mounted |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 4 × 10/100 Mbps PoE, 1 × 10/100 Mbps RJ45 |
| MAC Address Table | 1 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Internal Cache | 448 Kbits |
PoE Power Supply
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Pin Assignment | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Ports | Ports 1–4 |
| Max Port Power | 30 W |
| Total PoE Budget | 60 W |
Dialing / Special Functions
-
Long Range PoE – Ports 1–4 support up to 300 meters (dependent on camera model and cabling).
-
VIP Port Priority – Ports 1–2 prioritize traffic during bandwidth constraints for reliable video transmission.
Certifications
| Category | Certification |
|---|---|
| EMC | FCC, CE-EMC, ICES-003, RCM |
| Safety | UL 60950-1, CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS (2011/65/EU) |
What’s in the Box
-
1 × Hikvision DS-3E0105P-E(B) Unmanaged PoE Switch
-
Quick Installation Guide
-
Power Cable
Why Choose DS-3E0105P-E(B)
-
Compact, fanless design for silent operation in small environments.
-
Intelligent PoE management and long-range transmission up to 300 m.
-
VIP ports prioritize critical video data for stable surveillance networks.
-
Metal enclosure with 6 kV surge protection ensures durability.
-
Easy desk or wall mounting with minimal footprint.
-
Optimized for small office, retail, or residential IP camera deployments.
