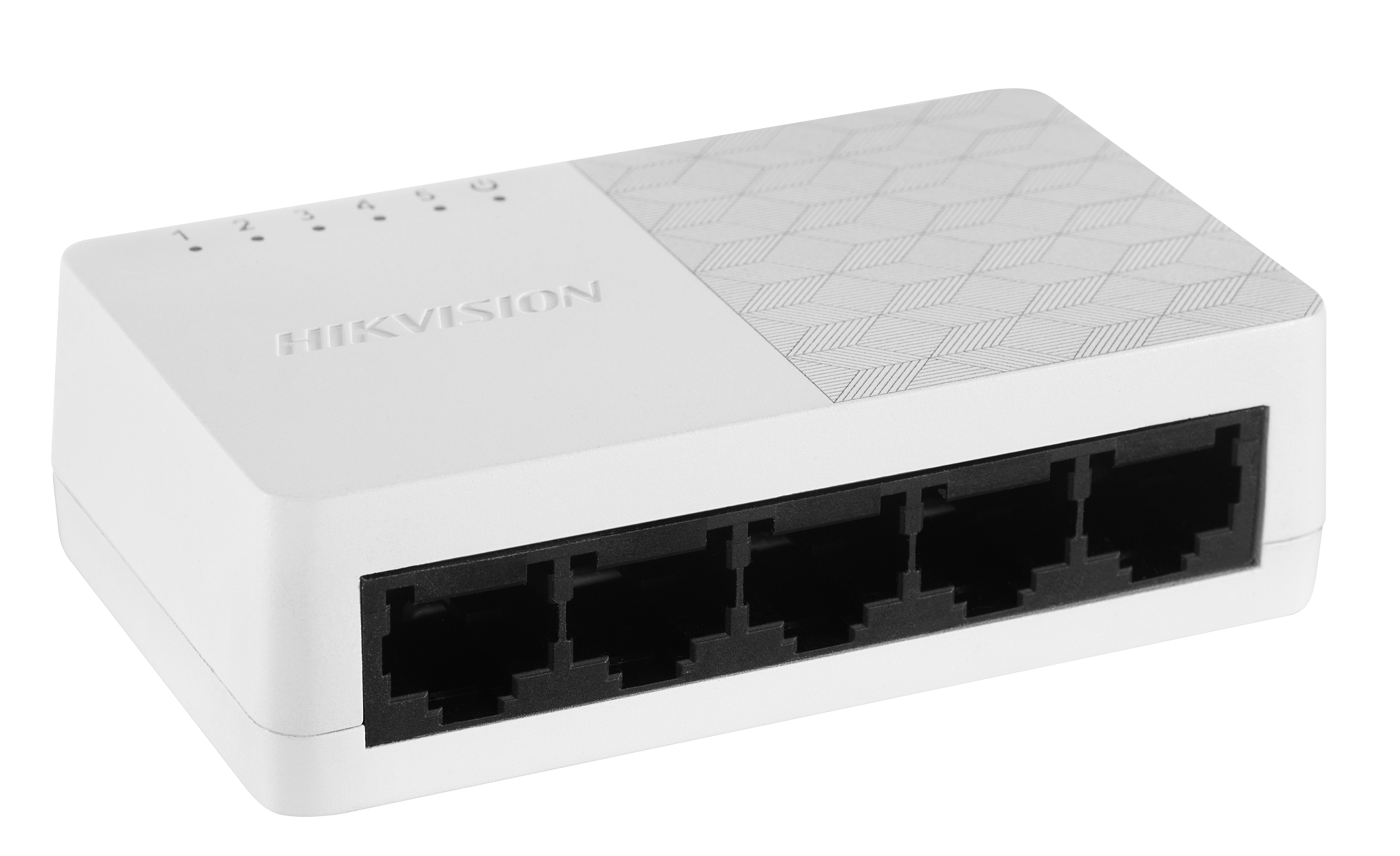

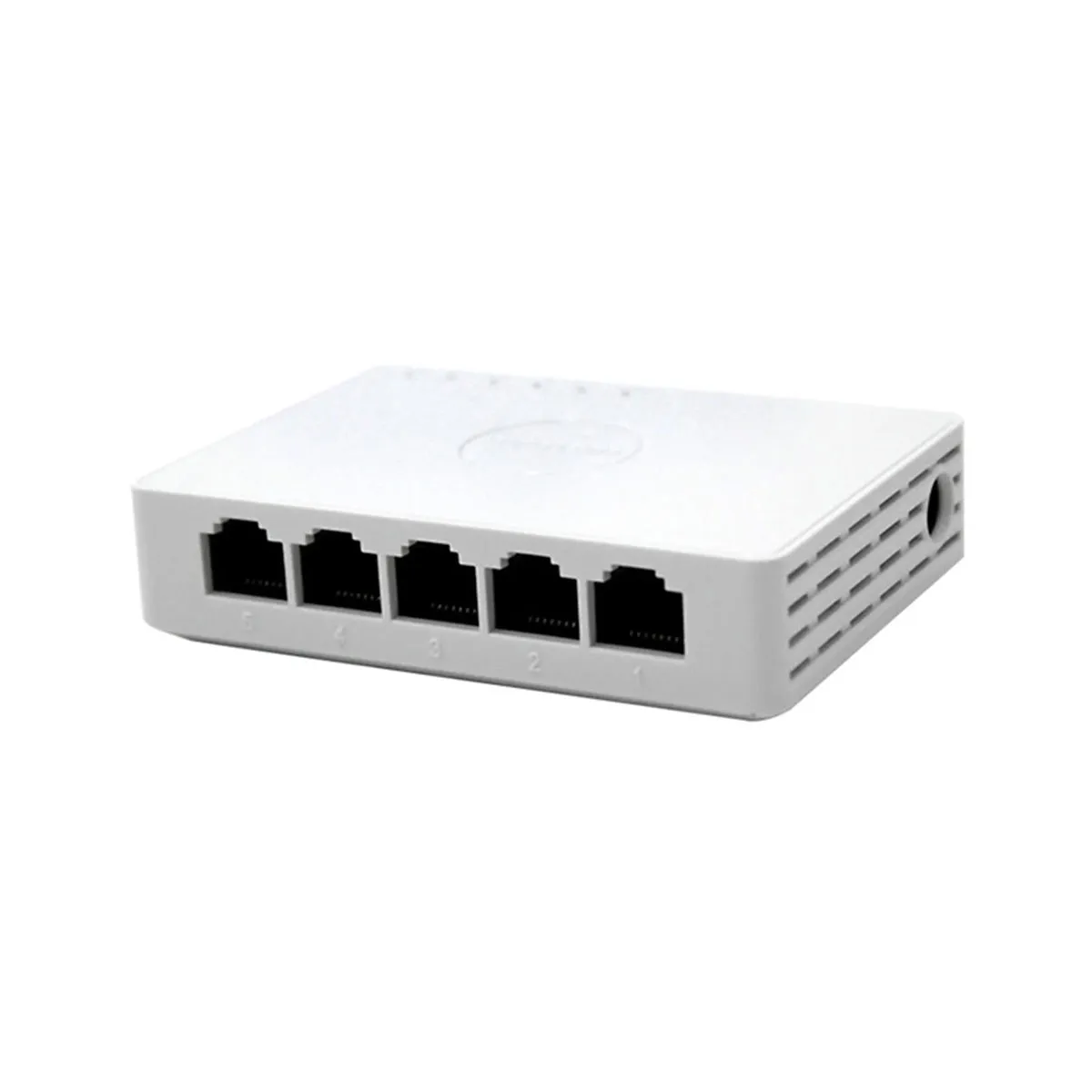

Hikvision DS-3E0105D-O 5Port Fast Ethernet Plastic Switch
The Hikvision DS-3E0105D-O is a compact, plug-and-play 5-port Fast Ethernet switch designed for home networks, small offices, and basic IP surveillance setups. Built with an ABS plastic enclosure, the switch delivers reliable 10/100 Mbps connectivity with store-and-forward architecture, ensuring accurate packet transmission and stable data flow.
Key Features
-
5 × 10/100 Mbps RJ45 Ports
Provides basic Ethernet connectivity for home and small office devices. -
Auto MDI/MDIX Support
Eliminates the need for crossover cables and simplifies port connection. -
Store-and-Forward Switching
Ensures accurate packet forwarding with effective error filtering. -
MAC Address Auto-Learning & Aging
Enhances network efficiency with intelligent traffic management. -
Compact & Lightweight Design
Small ABS plastic enclosure fits easily on desks or walls. -
Desktop & Wall-Mount Options
Flexible installation for multiple environments. -
Zero-Configuration, Plug & Play
No technical setup required—simple and fast deployment.
Specifications
General
| Feature | Specification |
|---|---|
| Shell | ABS Plastic |
| Net Weight | 0.093 kg |
| Dimensions | 83 × 22 × 52 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Installation Mode | Desktop / Wall-Mount |
| Power Supply | 5 VDC, 0.6 A |
| Max Power Consumption | 3 W |
| Surge Protection | 2 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 5 × 10/100 Mbps RJ45 |
| MAC Address Table | 2K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74 Mpps |
| Internal Cache | 768 Kbits |
Approval & Certifications
| Category | Certification |
|---|---|
| EMC | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035, ICES-003 |
| Safety | CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
-
1 × Hikvision DS-3E0105D-O 5-Port Switch
-
Power Adapter (5 VDC)
-
Quick Start Guide
Why Choose the DS-3E0105D-O
-
Easy, no-configuration setup for homes and small offices
-
Compact lightweight build ideal for tight spaces
-
Stable Fast Ethernet performance for everyday devices
-
Very low power consumption (only 3 W max)
-
Desktop or wall-mount flexibility
-
A perfect choice for basic IP camera networks, routers, printers, and PCs
