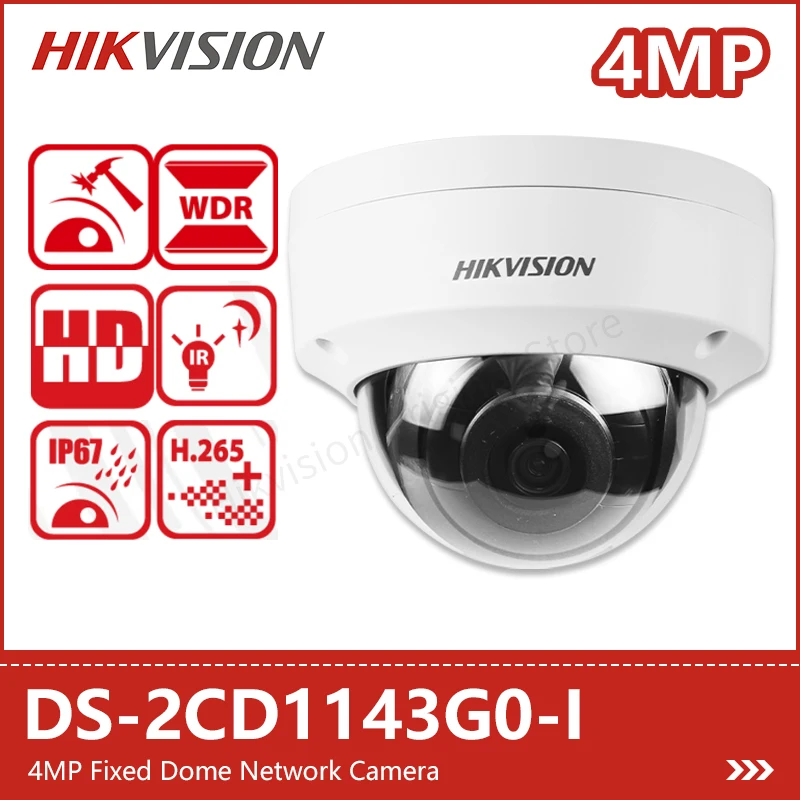

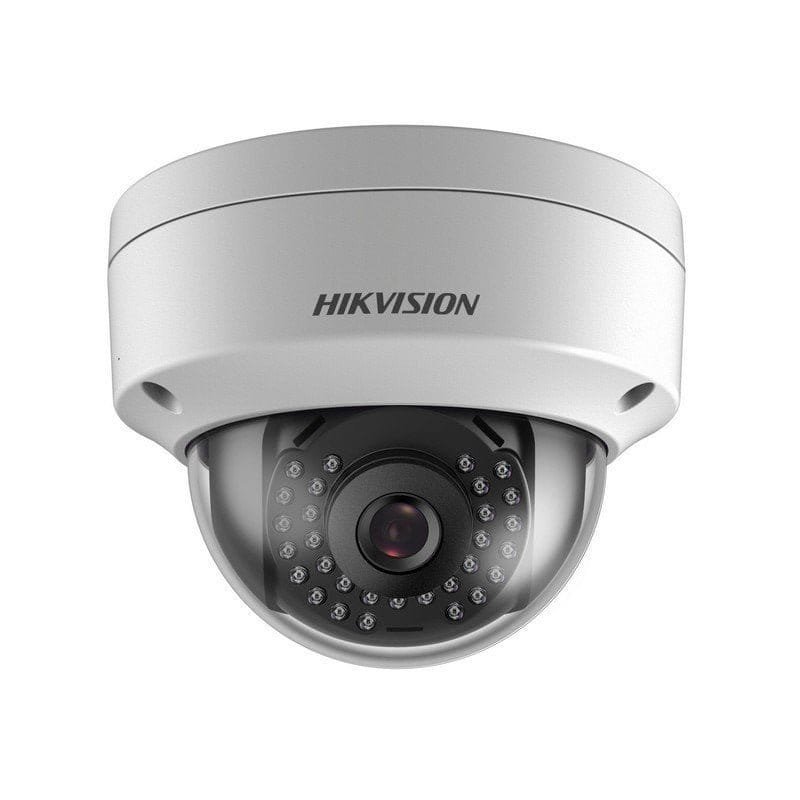

Hikvision DS-2CD1143G0-I Dome Camera
The Hikvision 4MP Dome Camera provides high-resolution surveillance capabilities for enterprise-grade security environments. This network device utilizes a 1/3-inch progressive scan CMOS sensor to deliver 2560 x 1440 resolution at 20 frames per second. Its fixed 2.8mm lens captures a wide horizontal field of view of 103 degrees. The hardware architecture supports multiple compression standards to optimize bandwidth and storage utilization effectively. It integrates seamlessly into existing IP infrastructures via standard RJ45 Ethernet connectivity.
Key Features
-
Advanced Image Processing
The unit incorporates 120dB Wide Dynamic Range technology to maintain image clarity in high-contrast lighting scenarios. -
Rugged Environmental Protection
- IP67 ingress protection ensures reliable operation in dusty and wet conditions.
- IK10 vandal resistance protects the internal components against physical impact.
-
Efficient Data Management
This system utilizes H.265+ compression technology to reduce storage requirements by up to 70% compared to H.264. -
Infrared Performance
Integrated IR LEDs provide illumination up to 30 meters for high-quality monochrome video capture in zero-light environments.
Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 (4 Megapixel) |
| Lens Focal Length | 2.8 mm Fixed Lens |
| Horizontal FOV | 103° |
| Compression | H.265+, H.265, H.264+, H.264 |
| WDR | 120 dB |
| IR Range | Up to 30 meters |
| Protection Level | IP67, IK10 |
| Power Supply | 12 VDC ± 25%, PoE (802.3af) |
What’s in the Box
-
Hikvision DS-2CD1143G0-I Network Camera
-
Drill Template
-
Screw and Anchor Pack
-
Quick Start Guide
-
Waterproof Cable Connector
Why Choose This Hikvision Model
-
This hardware simplifies deployment through Power over Ethernet support, reducing cabling complexity for network engineers.
-
The 4MP resolution offers a balance between high-definition evidence collection and efficient bandwidth consumption.
-
The 120dB WDR ensures that facial features remain visible even when subjects are positioned against bright windows.
-
Additionally, the 3D Digital Noise Reduction maintains clear video streams in low-light conditions by filtering temporal noise.
-
Consequently, procurement managers benefit from a durable solution with a high mean time between failures due to the IK10 rating.
