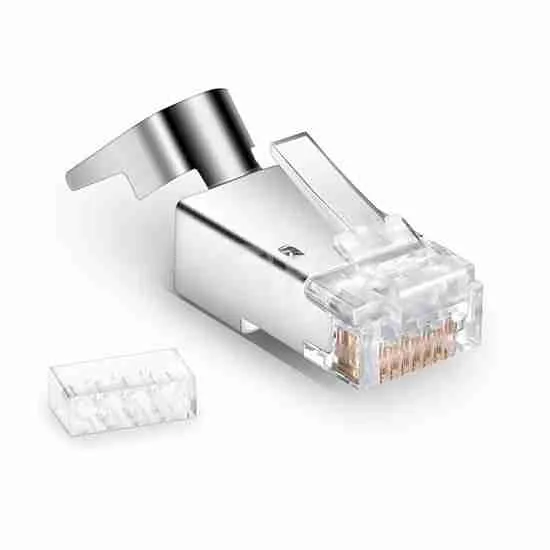

High-Performance RJ45 CAT6A Shielded Modular Plug 10Gbps

CAT6A RJ45 Connector

The RJ45 CAT6A Shielded Plug provides a robust termination solution for high-speed Category 6A copper cabling systems. This component supports data transfer rates up to 10 Gigabits per second over distances of 100 meters. Network engineers utilize these connectors to maintain signal integrity in environments with high electromagnetic interference. The architecture features a metal casing that ensures continuous grounding from the cable shield to the active equipment port. Consequently, this design significantly reduces Alien Crosstalk (AXT) and Near-End Crosstalk (NEXT) across the network link.

Key Features

• Three-Prong Contact Design
  The internal pins utilize a three-prong configuration to provide a secure and stable connection with both solid and stranded conductors.
• Integrated Load Bar
  • Facilitates precise wire alignment during the termination process.
  • Maintains wire twist ratios close to the contact point to minimize signal degradation.
• Superior Shielding Effectiveness
  A nickel-plated brass shell surrounds the polycarbonate housing to provide 360-degree protection against EMI and RFI.
• Gold-Plated Contacts
  The contacts feature 50-micron gold plating to prevent corrosion and ensure maximum conductivity over the hardware lifespan.

Specifications

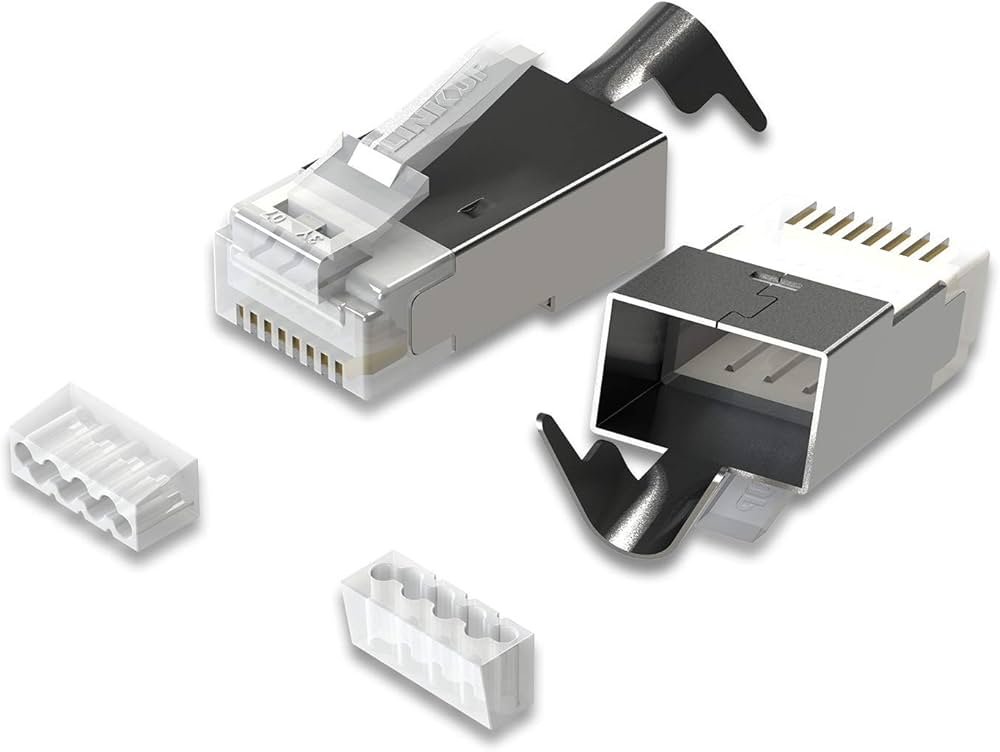

What’s in the Box

• RJ45 CAT6A Shielded Modular Connectors
• Wire Alignment Load Bars

Why Choose This Connector

• The metal housing prevents data packet loss caused by external electrical noise in industrial or data center settings.
• High-quality polycarbonate construction resists cracking during crimping and ensures long-term mechanical durability.
• Full compliance with TIA/EIA-568-C.2 standards guarantees interoperability with standard networking hardware and patch panels.
