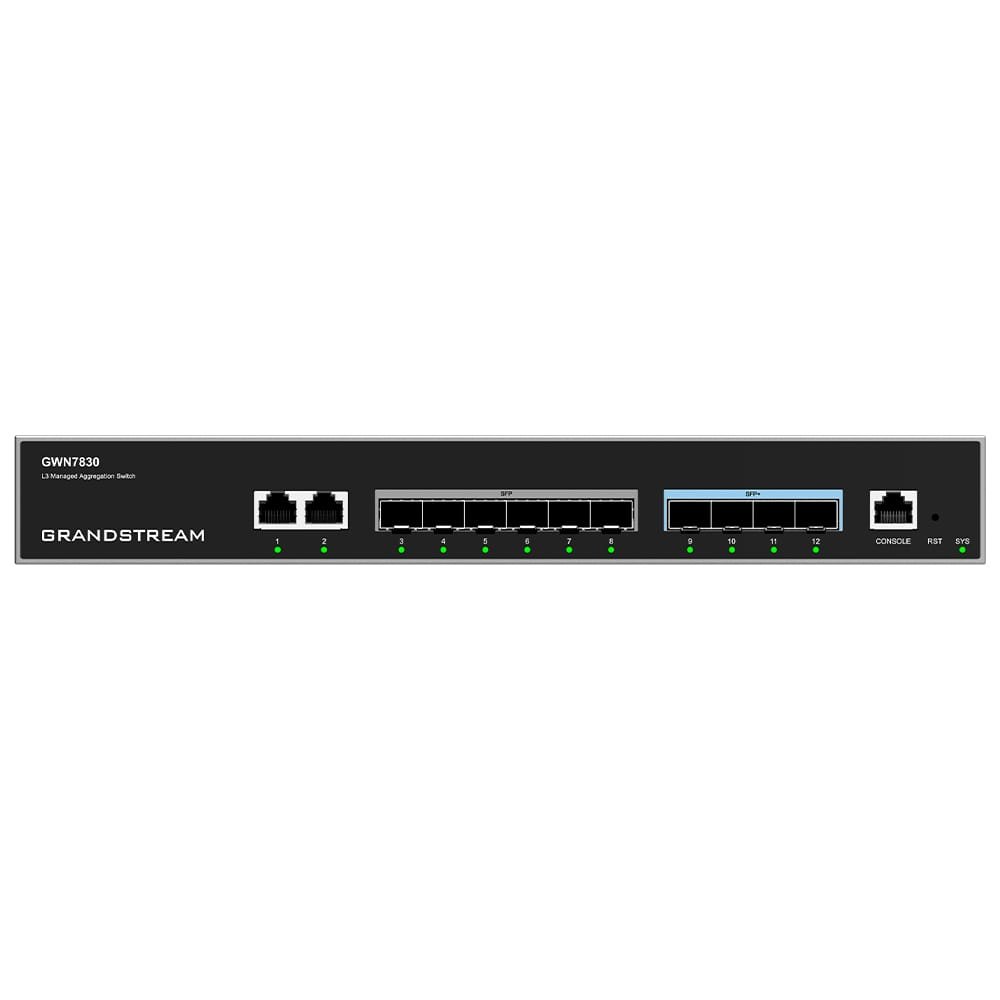

Grandstream GWN7830 Layer 3 Aggregation Managed Switch

Grandstream GWN7830 Layer 3 Aggregation Managed Switch

The Grandstream GWN7830 is an enterprise-grade Layer 3 aggregation managed switch engineered to deliver high-performance routing, intelligent traffic control, and advanced Layer 2/Layer 3 switching for medium-to-large business networks. Designed for scalability, resilience, and centralized management, the GWN7830 offers flexible VLAN segmentation, multi-protocol Layer 3 routing, and extensive QoS capabilities for latency-sensitive applications such as VoIP, surveillance, and data-intensive workloads. With a robust metal chassis, redundant power support, and full-stack management via Web UI, CLI, GDMS Networking, GWN Manager, or GWN routers, the GWN7830 ensures high reliability and streamlined network operations.

Key Features

• Layer 3 Aggregation Switch
  Supports static routing, dynamic routing (RIP/RIPng/OSPF/OSPFv3/BGP), VRRP (pending), and policy routing (pending).

• High-Performance Switching
  Provides 16K MAC addresses, 96 Gbps switching capacity, and 48 Gbps non-blocking throughput.

• Advanced QoS
  Includes WRR, WFQ, SP, SP-WRR, SP-WFQ scheduling, rate limiting, traffic shaping, and priority mapping.

• Comprehensive VLAN Architecture
  Supports 4K VLANs, 802.1Q tagging, private VLAN, MAC-based VLAN, protocol-based VLAN, and voice VLAN.

• Enterprise Security Suite
  802.1X, RADIUS, TACACS+, sticky MAC, ARP inspection, DHCP snooping, DoS protection, and IP/IPv6 Source Guard.

• Power Redundancy Ready
  Supports external redundant power supply (RPS) for improved operational resilience.

• Full-Stack Management
  Managed via Web UI, CLI, SNMP, GDMS Networking, GWN Router, or GWN Manager.

• Energy-Efficient Ethernet
  EEE support and intelligent fan-speed modulation reduce operational costs.

• Stacking Support
  Virtualize multiple switches into a single logical unit for centralized management and redundancy.

Specifications

General

Network Parameters

Routing

• 512 IPv4 routes / 128 IPv6 routes

• Static routing

• Dynamic routing: RIP, RIPng, OSPF, OSPFv3, BGP

• Routing policy (pending)

• VRRP (pending)

Multicast

• IGMP Snooping v2/v3

• MLD Snooping v1/v2

• MVR

• 256 IGMP/MLD groups

QoS / ACL

• Port priority

• Queue scheduling (SP, WRR, WFQ, SP-WRR, SP-WFQ)

• Traffic shaping

• Rate limiting

• 2K ACL entries (Ethernet/IPv4/IPv6)

Security

• AAA, RADIUS, TACACS+

• 802.1X & MAC authentication

• Dynamic ARP Inspection

• IP/IPv6 Source Guard

• DHCP/DHCPv6 snooping

• Storm control

• Sticky MAC, port isolation

• BPDU/root/loopback protection

Management

• Web UI, CLI (SSH/Telnet/Console)

• SNMP v1/v2c/v3

• Syslog, RMON

• Diagnostics: Ping, Traceroute, Mirroring, Copper Test

• Managed via GDMS Networking, GWN Manager, GWN Router

• Supports stacking (up to 4 switches)

What’s in the Box

• 1 × GWN7830 Switch

• 1 × AC Cable (1.2 m)

• 1 × Ground Cable (25 cm)

• 4 × Rubber Footpads

• 1 × Power Cord Anti-Trip

• 2 × Extended Rack-Mounting Kits

• 8 × Screws

• 1 × Quick Installation Guide

• 1 × Regulatory Paper

Why Choose GWN7830

• Designed for enterprise L3 aggregation

• Advanced routing and VLAN segmentation

• Strong security protection against internal/external threats

• High throughput with low latency switching

• Redundant power support for high availability

• Supports stacking for simplified large-scale management

• Energy-efficient design reduces operational costs
