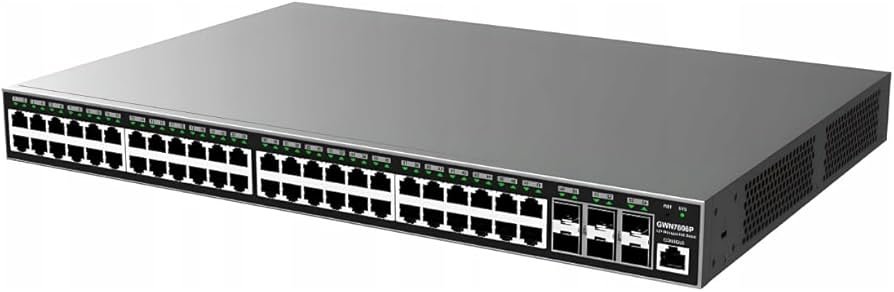

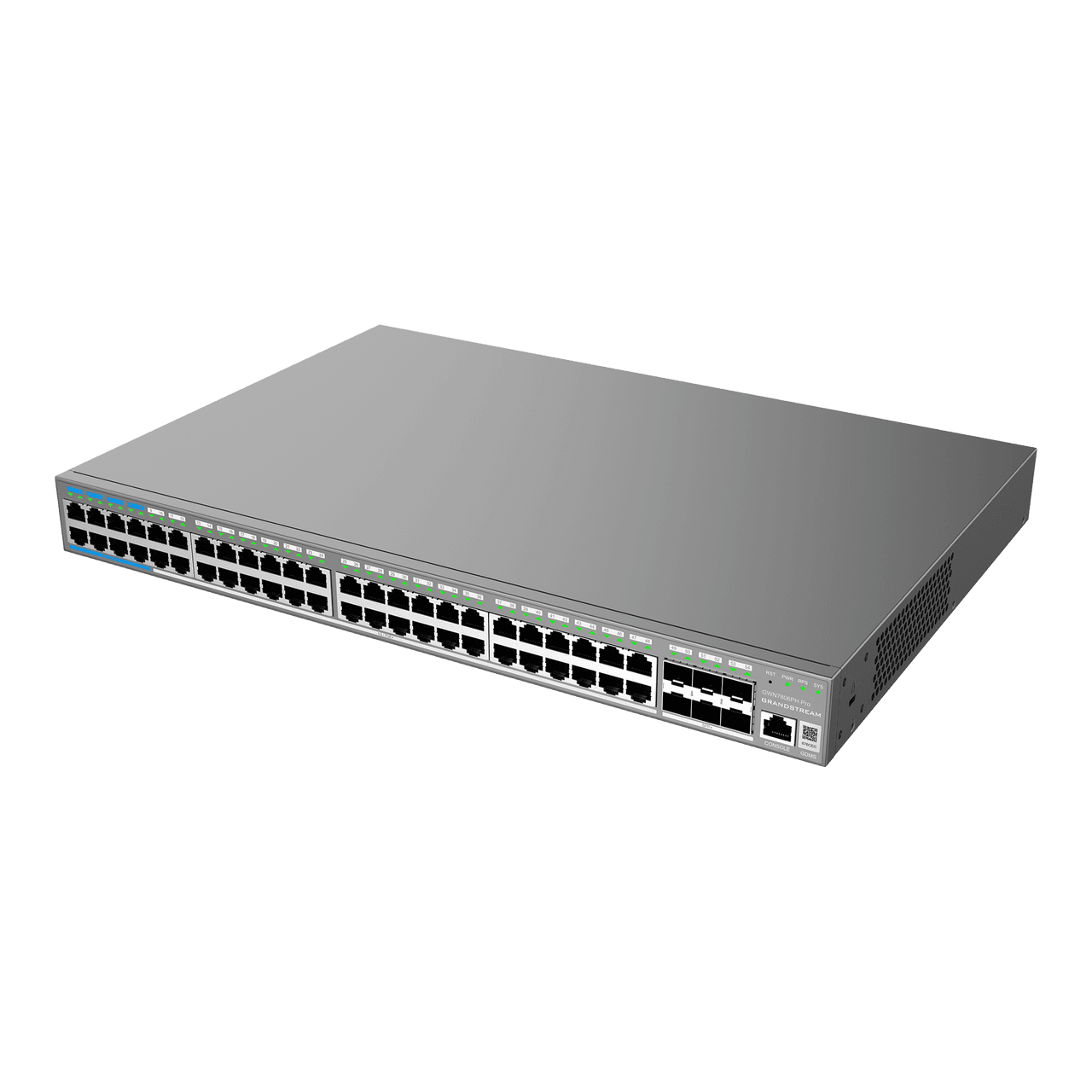

Grandstream GWN7806PH Pro 48Port Layer 2+Managed PoE+Switch
Original price was: KSh 67,000.00.KSh 65,000.00Current price is: KSh 65,000.00.
Grandstream GWN7806PH Pro 48Port Layer 2+Managed PoE+Switch
| Ports | 48 × GE, 6 × SFP+ |
| PoE Standard | 802.3af/at/bt (PoE++) |
| Total PoE Power | 720W |
| Switching Capacity | 216Gbps |
| Management | Cloud / WebUI / GWN Manager / CLI |
| Security | ARP Inspection, DoS Protection, Port Security, 802.1x |
| Mounting | Desktop / Rack |
| Ideal For | Medium-to-large enterprise networks, PoE++ devices, Wi-Fi AP deployments, high-end IP surveillance |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Grandstream GWN7806PH Pro 48Port Layer 2+Managed PoE+Switch
The Grandstream GWN7806PH Pro is a 48-port Layer 2++ managed switch with PoE/PoE+/PoE++ support, designed for medium-to-large enterprises needing high-density connectivity and maximum power delivery for demanding devices like high-end IP cameras, access points, VoIP phones, and other PoE-powered endpoints. Featuring 48 Gigabit Ethernet ports and 6 SFP+ uplinks, the GWN7806PH Pro delivers a switching capacity of 216Gbps, forwarding rate of 160.704 Mpps, and an impressive PoE budget of 720W, ensuring robust operation even in fully loaded PoE environments.
Key Features
48 × Gigabit Ethernet ports
6 × SFP+ uplink ports for high-speed backbone connections
PoE/PoE+/PoE++ support (max 720W total, dynamic allocation per port)
Switching capacity: 216Gbps
Forwarding rate: 160.704 Mpps
Advanced Layer 2++ features: VLAN, LAG (LACP/static), STP/RSTP/MSTP, Pro AV ready (pending)
Enterprise-grade security: ARP Inspection, IP Source Guard, DoS Protection, Port Security, DHCP Snooping
Multicast optimization: IGMP Snooping v2/v3 (640 groups), MLD Snooping v1/v2 (640 groups)
QoS controls: Port priority, 802.1p, DSCP, queue scheduling, traffic shaping, rate limiting
Energy-efficient Ethernet (EEE) support
Flexible management: Cloud, on-premise, WebUI, CLI
Rack-mount or desktop deployment
Specifications
Hardware Specifications
| Feature | Specification |
|---|---|
| Gigabit Ethernet Ports | 48 × GE |
| SFP+ Uplink Ports | 6 × 10G SFP+ |
| PoE Standards | IEEE 802.3af/at/bt |
| Max PoE Budget | 720W |
| Max Output per Port | 30W / 60W |
| CPU | 1GHz MIPS interAptive™ dual-core |
| RAM | 512MB |
| Flash | 128MB NAND |
| Switching Capacity | 216Gbps |
| Non-blocking Throughput | 108Gbps |
| Forwarding Rate | 160.704 Mpps |
| Packet Buffer | 8.4Mb |
| Latency | <4μs |
| Power Supply | 100–240V AC, 50/60Hz |
| Max Power Consumption | 870.9W (PoE included) |
| Dimensions | 440 × 300 × 44 mm |
| Weight | 5.3kg |
| Mounting | Desktop or Rack |
| Operating Temperature | 0°C – 45°C |
| Humidity | 10–90% non-condensing |
Software & Network Features
| Category | Capabilities |
|---|---|
| Network Protocols | IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.3af/at/bt, 802.3az, 802.3ad, STP/RSTP/MSTP/PVST+/RPVST+ |
| VLAN Support | 4K VLANs, port-based VLAN, 802.1Q tagging, QinQ, MAC-based VLAN, Voice VLAN |
| Multicast | IGMP Snooping v2/v3 (640 groups), MLD Snooping v1/v2 (640 groups) |
| Link Aggregation | 32 LAG groups; 8 members/group |
| IP Services | DHCP Client/Server/Relay, DHCP Snooping, DNS, ND Snooping |
| Routing | 1K IPv4/1K IPv6 static routes |
| QoS | Port priority, 802.1p/DSCP mapping, SP/WRR/WFQ scheduling, traffic shaping, rate limit |
| ACL | 256 ACLs, 4K ACEs (MAC, IPv4, IPv6, time-based, redirection) |
| Security | ARP Inspection, IP Source Guard, DoS prevention, port isolation, sticky MAC, CPU protection |
| Reliability | Storm control, loopback detection, ERPS (pending), link aggregation |
| Management | GDMS Cloud, GWN Manager, WebUI, CLI (SSH/Telnet/Console), SNMP v1/v2c/v3, RMON |
What’s in the Box
1 × GWN7806PH Pro Switch
1 × Power Cord
1 × AC Anti-Trip Cable
1 × Ground Cable (25cm)
4 × Rubber Footpads
8 × Mounting Screws
2 × Rack-Mount Kits
1 × Quick Installation Guide
1 × Regulatory Information Sheet
Why Choose the GWN7806PH Pro
Enterprises requiring maximum PoE/PoE++ power delivery for dense device deployments
High-speed SFP+ uplinks for backbone or core connections
Advanced VLAN, LAG, QoS, and multicast support for high-performance networks
Enterprise-grade security protections and DoS attack prevention
Energy-efficient fan and PoE management
Flexible cloud and on-premise management
