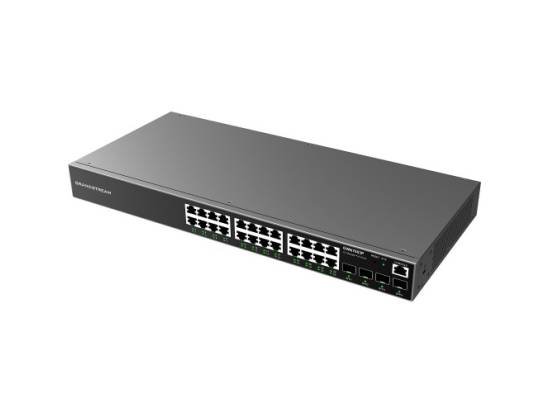

Grandstream GWN7803 24Ports Layer 2+ Managed Network Switch

Original price was: KSh 40,000.00.Current price is: KSh 35,000.00.

Grandstream GWN7803 24Ports Layer 2+ Managed Network Switch


Ethernet Ports	24 × Gigabit
SFP Ports	4 × Gigabit
Forwarding Rate	41.66 Mpps
Switching Capacity	56 Gbps
PoE	None
Max Power Supply	30 W
Packet Buffer	4.1 Mb
Dimensions	440×200×44 mm
Weight	3.3 kg
Mounting	Desktop/Wall/Rack
Compliance	FCC, CE, RCM, IC, UKCA

Add to compare

Add to wishlist

Shipping & Delivery

Fast delivery

Your order will be deliver to the specified address

15 - 45 minutes

From KES 300

Warranty 1 year

More details

Free 30-Day returns

More details

Unbeatable offers

Black Friday Blowout!

Description

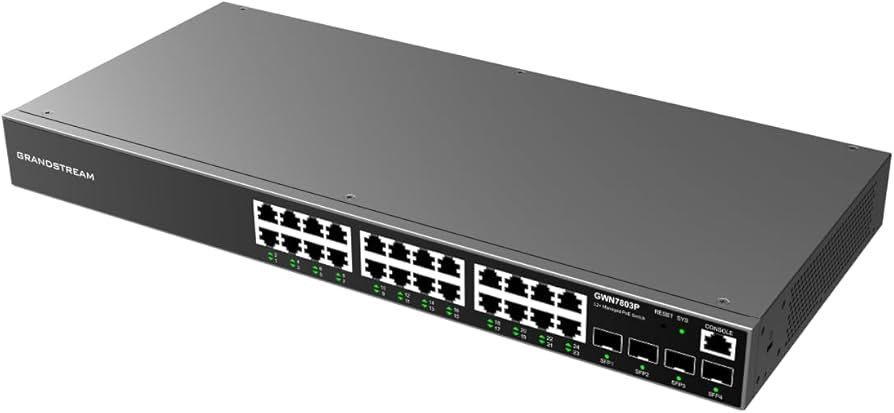

Grandstream GWN7803 24Ports Layer 2+ Managed Network Switch

The Grandstream GWN7803 is an Enterprise Layer 2+ Managed Network Switch, designed for small-to-medium businesses seeking high-performance, secure, and scalable network infrastructure. Featuring 24 Gigabit Ethernet ports and 4 Gigabit SFP uplinks, the GWN7803 provides advanced VLAN, QoS, IGMP Snooping, and comprehensive security features. Management options include the local web GUI, GDMS Networking, GWN Manager, and GWN Series Router, giving both cloud and on-premise control over the network.

Key Features

24 Gigabit Ethernet Ports + 4 SFP Uplink Ports
High-density connectivity for enterprise networks.
Advanced VLAN & QoS
Supports flexible VLAN segmentation, traffic prioritization, IGMP/MLD snooping for optimized performance.
Comprehensive Security
ARP inspection, IP Source Guard, DoS protection, port security, DHCP snooping, 802.1X, RADIUS/TACACS+.
IPv4/IPv6 Dual Stack Support
Seamless deployment in IPv4, IPv6, or hybrid networks.
Energy-Efficient & Reliable
Fan-assisted operation with intelligent thermal management and Energy Efficient Ethernet (EEE) support.

Specifications

Feature	GWN7803
Network Protocols	IPv4, IPv6, IEEE 802.3/3i/3u/3ab/3z/3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s, 802.1x
Memory	128MB RAM, 32MB Flash
Jumbo Frame	10,240 Bytes
Gigabit Ethernet Ports	24
Gigabit SFP Ports	4
Console	1
PoE Ports	N/A
Integrated Power Supply	30 W (for internal switch operation)
Max Output Power per PoE Port	N/A
Max Total PoE Output Power	N/A
PoE Standards	N/A
Forwarding Mode	Store-and-Forward
Non-blocking Throughput	28 Gbps
Switching Capability	56 Gbps
Forwarding Rate	41.66 Mpps
Packet Buffer	4.1 Mb
Network Latency	Avg <4 μs
Surge Protection	±6 kV CM/DM (Power), ±4 kV CM (Network Ports)
ESD Protection	±12 kV Contact Discharge
LEDs	1× Tri-color (device), 28× Green (data ports)
Fan	2 (Temperature Controlled)
Operating Temp	0°C to 45°C
Storage Temp	-10°C to 60°C
Humidity	10–90% RH (Non-condensing)
Dimensions	440×200×44 mm
Unit Weight	3.3 kg
Mounting	Desktop, Wall, Rack (Rack-mount kits included)
Compliance	FCC, CE, RCM, IC, UKCA

Software & Management Features

Layer 2+ Switching: 8K MAC addresses, VLAN (Port-based, IEEE 802.1Q, MAC/Protocol-based, QinQ), Voice VLAN, 16 VLAN virtual interfaces, 9216 MTU, 256 ARP/NDP entries.
Link Aggregation: Up to 8 groups for load balancing and redundancy.
Spanning Tree Protocols: STP/RSTP/MSTP/PVST(+)/RPVST(+) for loop prevention and fast convergence.
Routing: 32 IPv4/32 IPv6 static routes.
Multicast: IGMPv2/v3 Snooping, MLDv1/v2 Snooping, MVR support.
QoS & ACL: Port priority, priority mapping, queue scheduling (SP, WRR, WFQ, SP-WRR, SP-WFQ), traffic shaping, rate limiting, 1.5K ACL entries for Ethernet/IPv4/IPv6.
DHCP: Server, relay, options 82, 60, 160, 43.
Maintenance: CPU/memory monitoring, fault detection, SNMPv1/v2c/v3, RMON, LLDP/LLDP-MED, backup/restore, syslog, ping/traceroute, port mirroring (SPAN/RSPAN), diagnostics (UDLD, copper test).
Security: User hierarchical management, HTTPS/SSH/Telnet, 802.1X/MAC/RADIUS/TACACS+ authentication, storm control, port isolation/security, MAC filtering, IP/IPv6 source guard, ARP inspection, DHCP/DHCPv6 snooping, loop protection, Kensington lock support.
