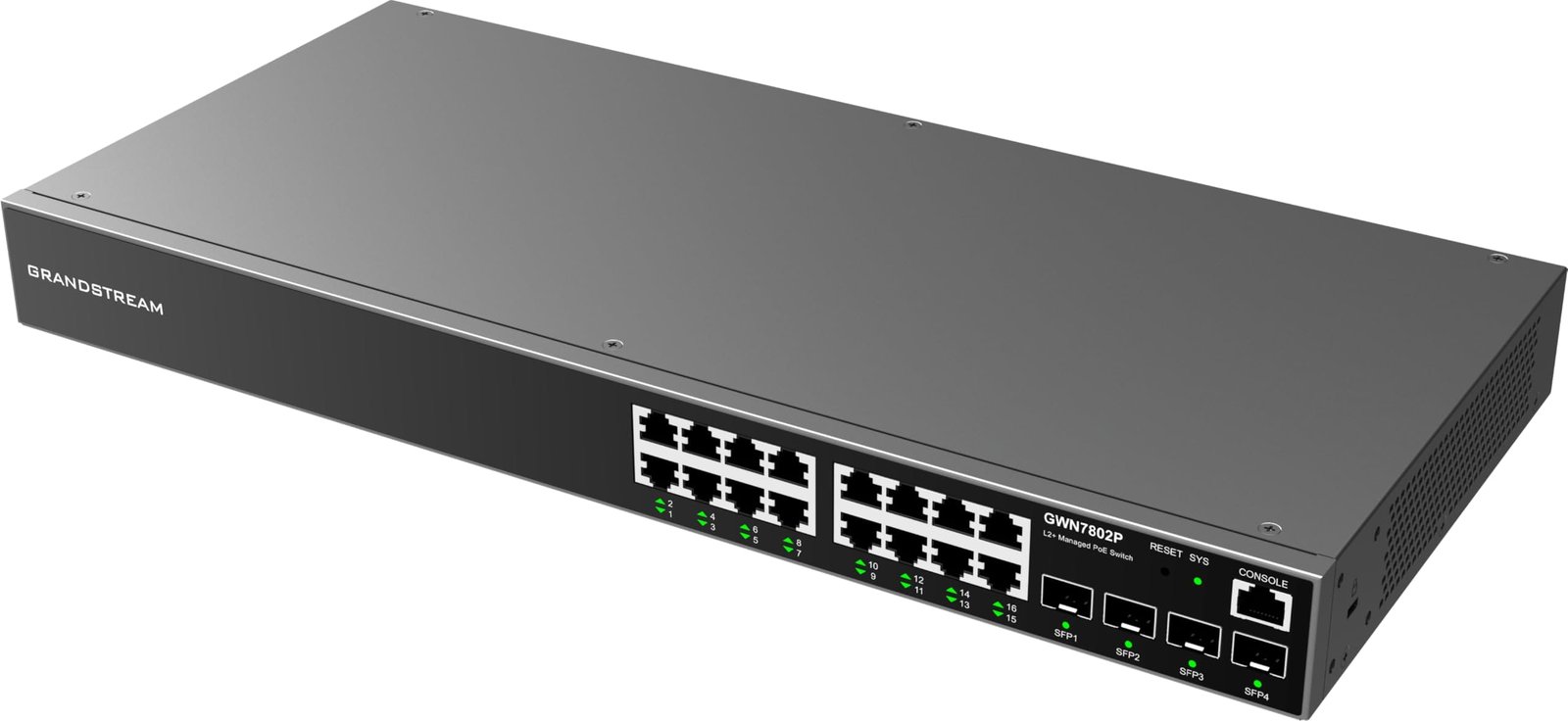

Grandstream GWN7802P 16Port Layer 2+ Managed Network Switch

Original price was: KSh 36,000.00.Current price is: KSh 35,000.00.

Grandstream GWN7802P 16Port Layer 2+ Managed Network Switch


Ethernet Ports	16 × Gigabit
SFP Ports	4 × Gigabit
Forwarding Rate	29.76 Mpps
Switching Capacity	40 Gbps
PoE	16 Ports, 30 W/Port, Max 370 W
Max Power Supply	270 W
Packet Buffer	4.1 Mb
Dimensions	440×200×44 mm
Weight	3 kg
Mounting	Desktop/Wall/Rack
Compliance	FCC, CE, RCM, IC, UKCA

Add to compare

Add to wishlist

Shipping & Delivery

Fast delivery

Your order will be deliver to the specified address

15 - 45 minutes

From KES 300

Warranty 1 year

More details

Free 30-Day returns

More details

Unbeatable offers

Black Friday Blowout!

Description

Grandstream GWN7802P 16Port Layer 2+ Managed Network Switch

The Grandstream GWN7802P is an Enterprise Layer 2+ Managed Network Switch with PoE/PoE+ support, ideal for small-to-medium businesses needing high-performance, secure, and scalable networks with the ability to power IP endpoints such as phones, cameras, and Wi-Fi access points directly from the switch.

Key Features

16 Gigabit Ethernet Ports + 4 SFP Uplink Ports
High-speed connectivity with integrated PoE/PoE+ support.
Dynamic PoE Power Allocation
Smart PoE/PoE+ output per port, supporting IP phones, cameras, and access points.
Advanced VLAN & QoS
Flexible VLAN configuration, traffic prioritization, IGMP/MLD snooping for optimized performance.
Comprehensive Security
ARP inspection, IP Source Guard, DoS protection, port security, DHCP snooping, 802.1X, RADIUS/TACACS+.
IPv4/IPv6 Dual Stack Support
Seamless deployment in IPv4, IPv6, or hybrid networks.
Energy-Efficient & Reliable
Fan-cooled operation with intelligent thermal management and EEE support.

Specifications

Feature	GWN7802P
Network Protocols	IPv4, IPv6, IEEE 802.3/3i/3u/3ab/3z/3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s, 802.1x
Memory	128MB RAM, 32MB Flash
Jumbo Frame	10,240 Bytes
Gigabit Ethernet Ports	16
Gigabit SFP Ports	4
Console	1
PoE Ports	16
Integrated Power Supply	270 W
Max Output Power per PoE Port	30 W
Max Total PoE Output Power	370 W
PoE Standards	IEEE 802.3af/at
Forwarding Mode	Store-and-Forward
Non-blocking Throughput	20 Gbps
Switching Capability	40 Gbps
Forwarding Rate	29.76 Mpps
Packet Buffer	4.1 Mb
Network Latency	Avg <4 μs
Surge Protection	±6 kV CM/DM (Power), ±4 kV CM (Network Ports)
ESD Protection	±12 kV Contact Discharge
LEDs	1× Tri-color (device), 20× Green (data ports), 16× Yellow (PoE ports)
Fan	2 (Temperature Controlled)
Operating Temp	0°C to 45°C
Storage Temp	-10°C to 60°C
Humidity	10–90% RH (Non-condensing)
Dimensions	440×200×44 mm
Unit Weight	3 kg
Mounting	Desktop, Wall, Rack (Rack-mount kits included)
Compliance	FCC, CE, RCM, IC, UKCA

Software & Management Features

Layer 2+ Switching: 8K MAC addresses, VLAN (Port-based, IEEE 802.1Q, MAC/Protocol-based, QinQ), Voice VLAN, 16 VLAN virtual interfaces, 9216 MTU, 256 ARP/NDP entries.
Link Aggregation: Up to 8 groups, load balancing and redundancy.
Spanning Tree Protocols: STP/RSTP/MSTP/PVST(+)/RPVST(+) for loop prevention and fast convergence.
Routing: 32 IPv4/32 IPv6 static routes.
Multicast: IGMPv2/v3 Snooping, MLDv1/v2 Snooping, MVR support.
QoS & ACL: Port priority, priority mapping, queue scheduling (SP, WRR, WFQ, SP-WRR, SP-WFQ), traffic shaping, rate limiting, 1.5K ACL entries for Ethernet/IPv4/IPv6.
DHCP: Server, relay, options 82, 60, 160, 43.
Maintenance: CPU/memory monitoring, fault detection, SNMPv1/v2c/v3, RMON, LLDP/LLDP-MED, backup/restore, syslog, ping/traceroute, port mirroring (SPAN/RSPAN), diagnostics (UDLD, copper test).
Security: User hierarchical management, HTTPS/SSH/Telnet, 802.1X/MAC/RADIUS/TACACS+ authentication, storm control, port isolation/security, MAC filtering, IP/IPv6 source guard, ARP inspection, DHCP/DHCPv6 snooping, loop protection, Kensington lock support.
