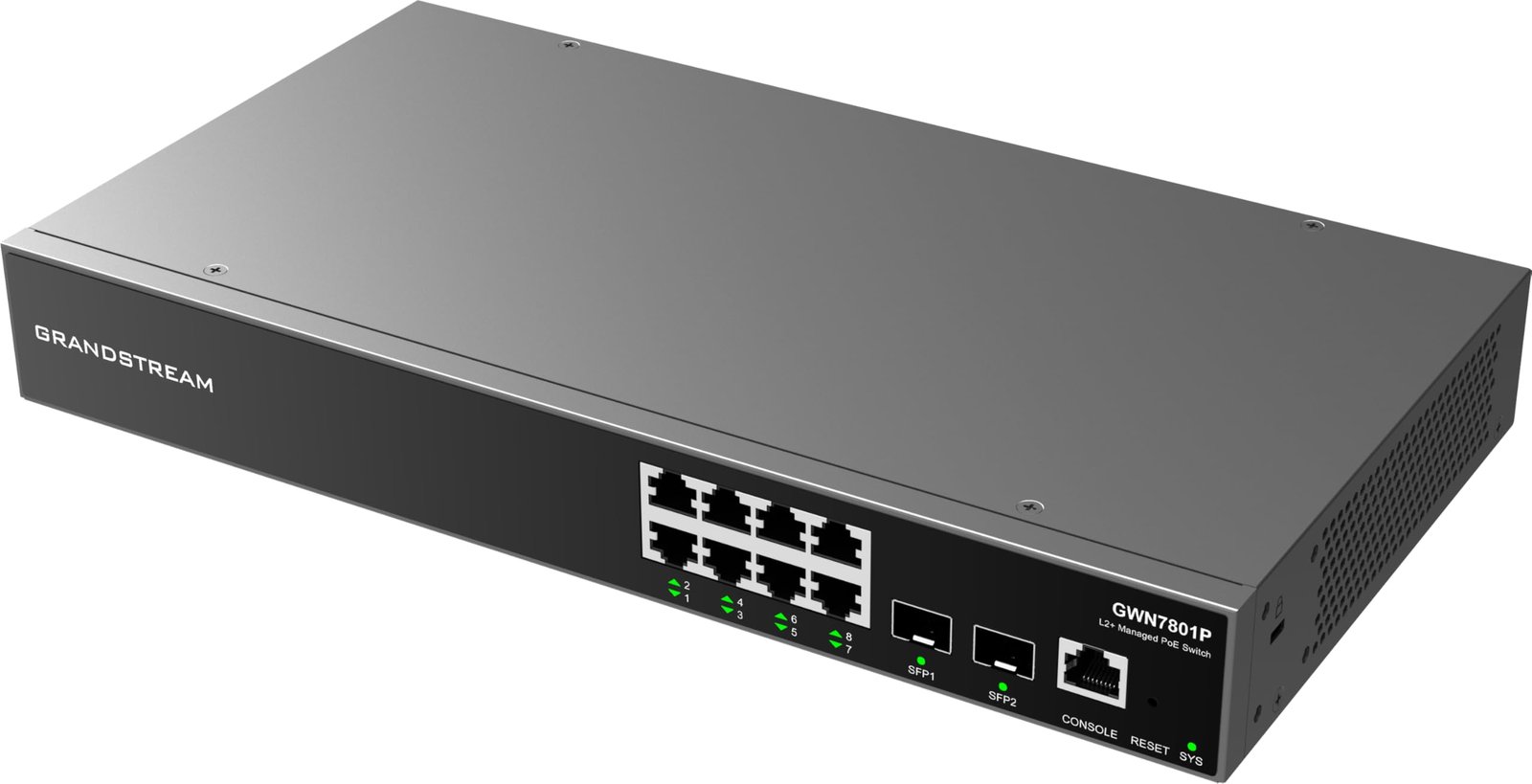

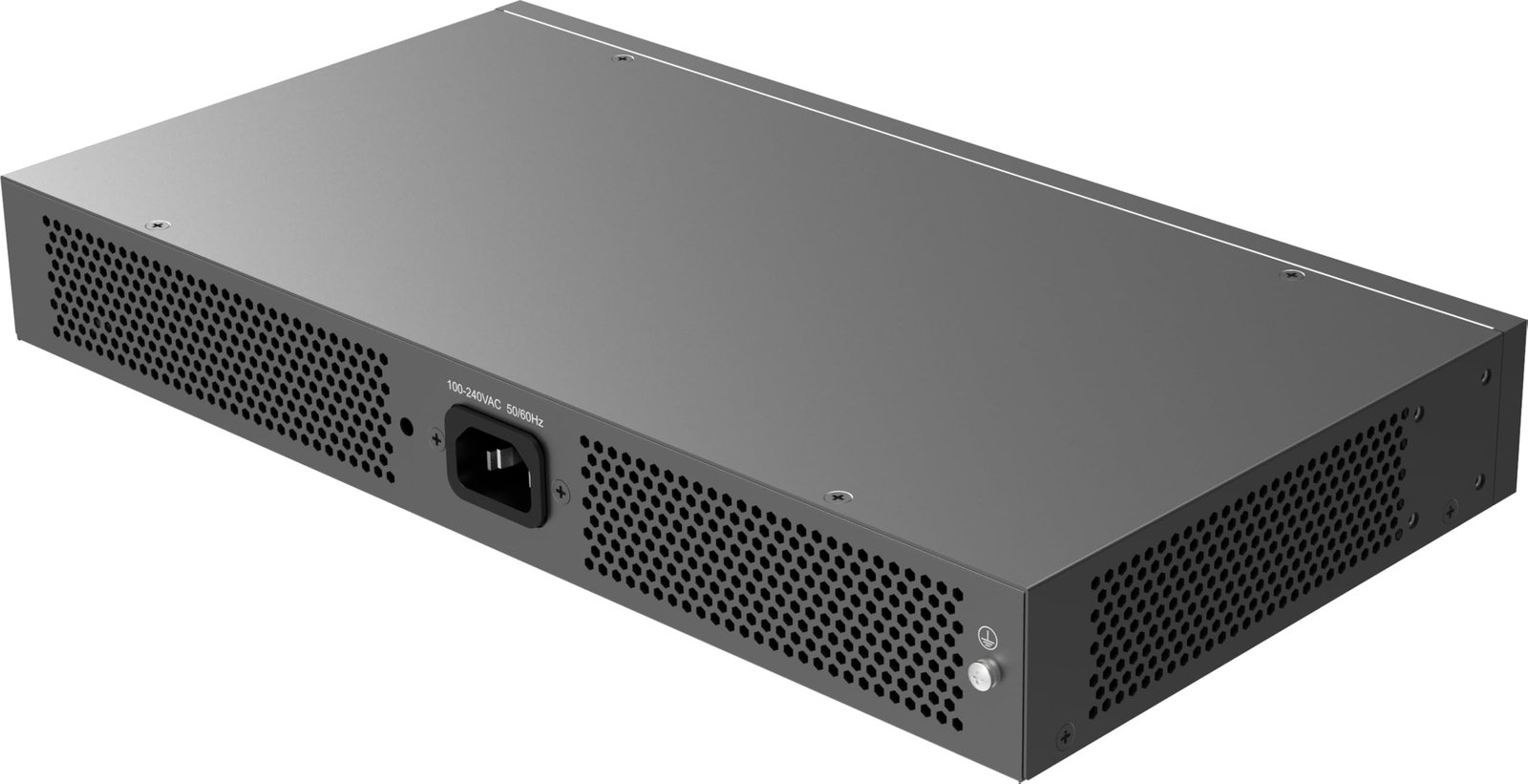

Grandstream GWN7801P Pro Enterprise Layer 2+ Managed PoE Switch
Original price was: KSh 30,000.00.KSh 25,000.00Current price is: KSh 25,000.00.
Grandstream GWN7801P Pro Enterprise Layer 2+ Managed PoE Switch
| Ports | 8 × GE PoE, 2 × 2.5G SFP |
| PoE Standard | 802.3af/at |
| Total PoE Power | 120W |
| Switching Capacity | 26Gbps |
| Management | Cloud / WebUI / GWN Manager / CLI |
| Security | ARP Inspection, DoS Protection, Port Security, 802.1x |
| Mounting | Desktop / Wall / Rack |
| Ideal For | SMB networks, VoIP deployments, video surveillance, Wi-Fi AP powering |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Grandstream GWN7801P Pro Enterprise Layer 2+ Managed PoE Switch
The Grandstream GWN7801P Pro is an advanced Layer 2++ managed switch designed for small-to-medium enterprises that require secure, scalable, and high-performance networking infrastructure. Equipped with 8 Gigabit Ethernet ports, 2 × 2.5G SFP uplink ports, and enterprise-class PoE capabilities, the GWN7801P Pro delivers robust switching performance with a total switching capacity of 26Gbps and a forwarding rate of 19.344 Mpps.
Key Features
8 × Gigabit Ethernet ports with PoE/PoE+ support
2 × 2.5G SFP uplink ports for high-bandwidth backbone networking
Total switching capacity: 26Gbps
Forwarding rate: 19.344 Mpps
PoE budget: 120W with dynamic allocation
Advanced Layer 2++ features including STP/RSTP/MSTP, VLANs, QinQ, LAG (LACP/static)
Advanced security: ARP Inspection, IP Source Guard, DoS Protection, Port Security, DHCP Snooping
Enterprise multicast optimization: IGMP Snooping v2/v3, MLD Snooping v1/v2
Comprehensive QoS controls: 802.1p, DSCP, queue scheduling, traffic shaping, rate limiting
Energy Efficient Ethernet (EEE) for reduced power consumption
Cloud, on-premise, and local management options
Compact form factor suitable for desktop, wall, or rack mounting
Specifications
Hardware Specifications
| Feature | Specification |
|---|---|
| Gigabit Ethernet Ports | 8 × GE (PoE/PoE+) |
| SFP Uplink Ports | 2 × 2.5G SFP |
| PoE Standards | IEEE 802.3af/at |
| Max PoE Budget | 120W |
| Max Output per Port | 30W |
| CPU | 1GHz MIPS interAptive™ single-core |
| RAM | 128MB |
| Flash | 32MB NOR |
| Switching Capacity | 26Gbps |
| Non-blocking Throughput | 13Gbps |
| Forwarding Rate | 19.344 Mpps |
| Packet Buffer | 8.4Mb |
| Latency | <4μs |
| Power Supply | Internal AC 100-240V, 50/60Hz |
| Max Power Consumption | 145.5W (PoE included) |
| Dimensions | 330 × 175 × 44 mm |
| Weight | 1.77kg |
| Mounting | Desktop/Wall/Rack |
| Operating Temperature | 0°C – 45°C |
| Humidity | 10–90% non-condensing |
Software & Network Features
| Category | Capabilities |
|---|---|
| Network Protocols | IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.3af/at, 802.3az, 802.3ad, STP/RSTP/MSTP/PVST+/RPVST+ |
| VLAN Support | 4K VLANs, Port-based VLAN, 802.1Q tagging, QinQ, MAC-based VLAN, Voice VLAN |
| Multicast | IGMP Snooping v2/v3 (256 groups), MLD Snooping v1/v2 (256 groups) |
| Link Aggregation | 8 LAG groups; 8 members/group |
| IP Services | DHCP Client/Server/Relay, DHCP Snooping, DNS, ND Snooping |
| Routing | 32 IPv4 static routes, 32 IPv6 static routes |
| QoS | Port priority, 802.1p/DSCP mapping, SP/WRR/WFQ scheduling, traffic shaping, rate limit |
| ACL | 128 ACLs, 1.5K ACEs (MAC, IPv4, IPv6, time-based, redirection) |
| Security | ARP Inspection, IP Source Guard, DoS prevention, port isolation, sticky MAC, CPU protection |
| Reliability | Storm control, loopback detection, ERPS (pending), link aggregation |
| Management | GDMS Cloud, GWN Manager, WebUI, CLI (SSH/Telnet/Console), SNMP v1/v2c/v3, RMON |
What’s in the Box
1 × GWN7801P Pro Switch
1 × Power Cord
1 × AC Anti-Trip Cable
1 × Ground Cable (25cm)
4 × Rubber Footpads
8 × Mounting Screws
1 × Rack-Mount Kit
1 × Quick Installation Guide
1 × Regulatory Information Sheet
Why Choose the GWN7801P Pro
Built for enterprise environments needing secure VLAN segmentation and high reliability
PoE budget suitable for access points, cameras, and IP phones
Superior traffic optimization with advanced QoS + multicast management
Cloud-ready: manage from anywhere with GDMS
Quiet, compact, energy-efficient operation
Strong cybersecurity with DoS protection, ARP inspection, IP Source Guard, ACLs
Designed for SMEs building scalable high-performance networks
