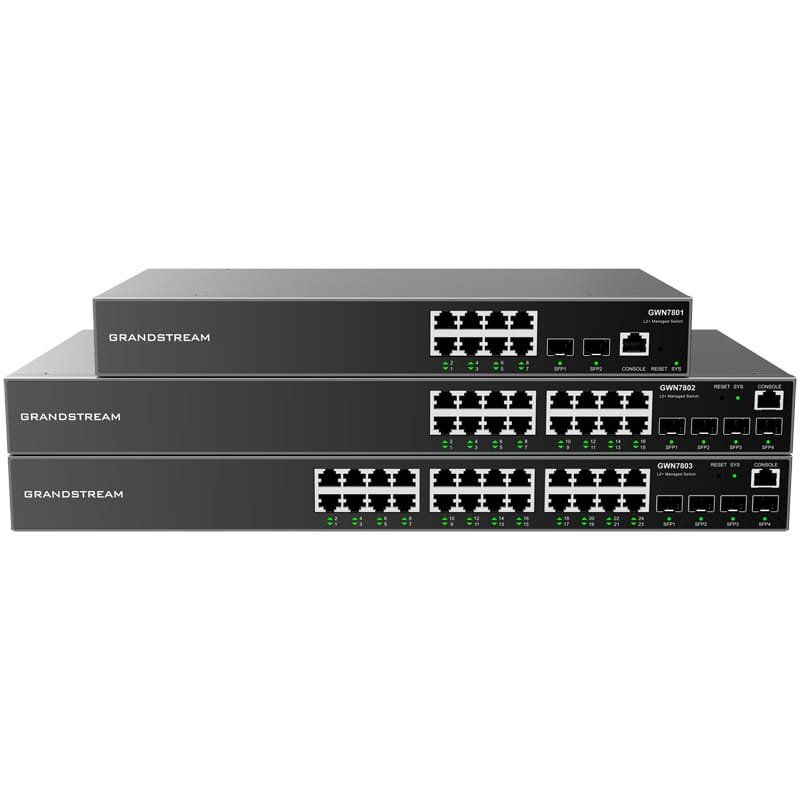

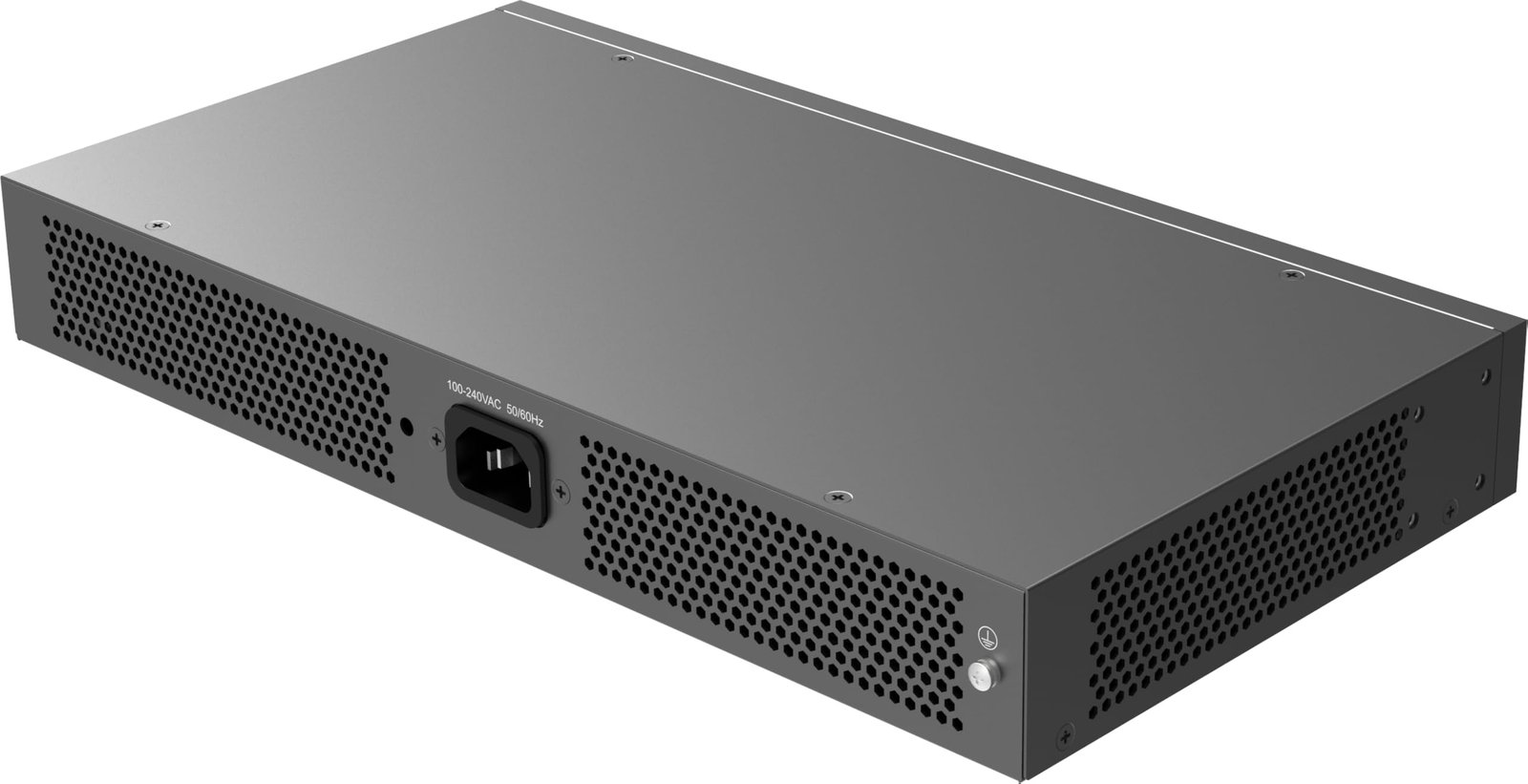

Grandstream GWN7801 8Port Layer 2+ Managed Network Switch
The Grandstream GWN7801 is an Enterprise Layer 2+ Managed Network Switch designed for small-to-medium enterprises (SMEs) seeking scalable, secure, and high-performance networks. With 8 Gigabit Ethernet ports and 2 Gigabit SFP uplink ports, the GWN7801 enables reliable connectivity for business-critical applications.
Key Features
-
8 Gigabit Ethernet Ports + 2 SFP Uplink Ports
Provides high-speed connectivity for both access and uplink requirements. -
Advanced VLAN & QoS
Flexible traffic segmentation, priority mapping, and bandwidth management for optimized network performance. -
PoE-Ready (Optional in GWN7801P variant)
Dynamic PoE allocation to power IP cameras, VoIP phones, and Wi-Fi APs. -
Comprehensive Security
ARP Inspection, IP Source Guard, DoS protection, port security, DHCP snooping, 802.1X authentication, RADIUS/TACACS+ support. -
IPv4/IPv6 Dual Stack Support
Ensures compatibility in modern and mixed network environments. -
Smart Management
Local web interface, CLI, SNMP, GDMS Networking, GWN Manager, and GWN Series Router support. -
Energy-Efficient & Reliable
Fanless operation with intelligent thermal management and EEE (Energy Efficient Ethernet) support.
Specifications
| Feature | GWN7801 |
|---|---|
| Network Protocols | IPv4, IPv6, IEEE 802.3/3i/3u/3ab/3z/3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s, 802.1x |
| Memory | 128MB RAM, 32MB Flash |
| Jumbo Frame | 10,240 Bytes |
| Gigabit Ethernet Ports | 8 |
| Gigabit SFP Ports | 2 |
| Console | 1 |
| PoE Ports | – |
| Integrated Power Supply | 30W |
| Max Total PoE Output | – |
| Forwarding Mode | Store-and-Forward |
| Non-blocking Throughput | 10 Gbps |
| Switching Capability | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 4.1 Mb |
| Network Latency | Avg <4 μs |
| Surge Protection | ±6 kV CM/DM (Power), ±4 kV CM (Network Ports) |
| ESD Protection | ±12 kV Contact Discharge |
| LEDs | 1× Tri-color (device), 10× Green (data ports) |
| Fan | – |
| Operating Temp | 0°C to 45°C |
| Storage Temp | -10°C to 60°C |
| Humidity | 10–90% RH (Non-condensing) |
| Dimensions | 330×175×44 mm |
| Unit Weight | 1.8 kg |
| Mounting | Desktop, Wall, Rack (Rack-mount kits included) |
| Compliance | FCC, CE, RCM, IC, UKCA |
Software & Management Features
-
Layer 2+ Switching: 8K MAC addresses, VLAN (Port-based, IEEE 802.1Q, MAC/Protocol-based, QinQ), Voice VLAN, 16 VLAN virtual interfaces, 9216 MTU, 256 ARP/NDP entries.
-
Link Aggregation: Up to 8 groups, supports load balancing and redundancy.
-
Spanning Tree Protocols: STP/RSTP/MSTP/PVST(+)/RPVST(+) for loop prevention and fast convergence.
-
Routing: 32 IPv4/32 IPv6 static routes.
-
Multicast: IGMPv2/v3 Snooping, MLDv1/v2 Snooping, MVR support.
-
QoS & ACL: Port priority, priority mapping, queue scheduling (SP, WRR, WFQ, SP-WRR, SP-WFQ), traffic shaping, rate limiting, 1.5K ACL entries for Ethernet/IPv4/IPv6.
-
DHCP: Server, relay, options 82, 60, 160, 43.
-
Maintenance: CPU/memory monitoring, fault detection, SNMPv1/v2c/v3, RMON, LLDP/LLDP-MED, backup/restore, syslog, ping/traceroute, port mirroring (SPAN/RSPAN), diagnostics (UDLD, copper test).
-
Security: User hierarchical management, HTTPS/SSH/Telnet, 802.1X/MAC/RADIUS/TACACS+ authentication, storm control, port isolation/security, MAC filtering, IP/IPv6 source guard, ARP inspection, DHCP/DHCPv6 snooping, loop protection, Kensington lock support.
Package Contents
-
1 × Grandstream GWN7801 Switch
-
1 × 1.2 m AC Cable
-
1 × 25 cm Ground Cable
-
4 × Rubber Footpads
-
8 × Screws (KM3×6)
-
1 × Quick Installation Guide
-
1 × Regulatory Paper
-
2 × Extended Rack-Mounting Kits
Why Choose GWN7801
-
Enterprise-grade Layer 2+ switching for SMEs
-
Optimized for IP surveillance, VoIP, and Wi-Fi deployments
-
Energy-efficient fanless design with intelligent thermal control
-
Comprehensive security suite against network attacks
-
Easy centralized and local management via web GUI, GDMS, or GWN Manager
