Grandstream GWN771P 8Port Layer 2 Managed Network Switch
Original price was: KSh 25,000.00.KSh 16,000.00Current price is: KSh 16,000.00.
Grandstream GWN7711 8Port Gigabit Layer 2 Lite Managed Switch with 4× PoE/PoE+/Passive PoE
| Ports | 8 × Gigabit |
| PoE | 4 × PoE/PoE+/Passive |
| PoE Budget | 60W Total |
| Switching Capacity | 16 Gbps |
| VLAN | 32 VLANs |
| Management | GDMS, GWN Manager, Embedded |
| Enclosure | Metal |
| Power Input | 48–53.5 VDC |
| Installation | Desktop / Wall-mount |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

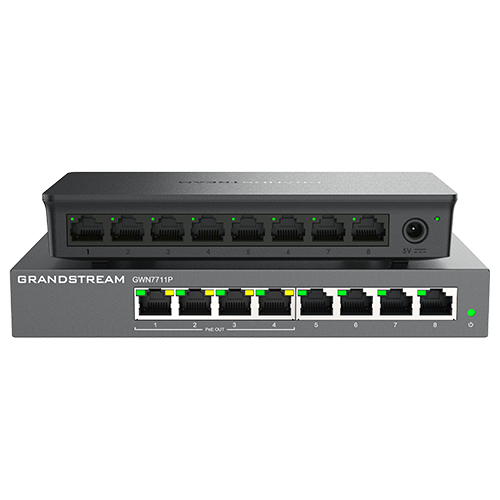

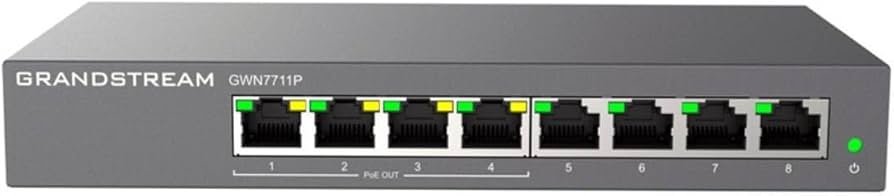

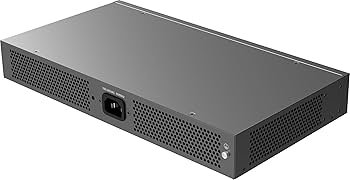

Grandstream GWN7711 8Port Gigabit Layer 2 Lite Managed Switch with 4× PoE/PoE+/Passive PoE
The Grandstream GWN7711 8Port Gigabit Layer 2 Lite Managed Switch with 4× PoE/PoE+/Passive PoE is an advanced Layer 2 Lite Managed Gigabit Switch featuring 8 Gigabit ports, including 4 PoE/PoE+ ports with intelligent dynamic power allocation. Designed for powering IP surveillance, Wi-Fi access points, VoIP phones, and other PoE-enabled endpoints, it offers up to 60W total PoE budget and supports both 802.3af/at and 24V/48V passive PoE-out modes.
Key Features
8× Gigabit Ethernet Ports with 4× PoE/PoE+/Passive PoE-Out
Smart Dynamic PoE Allocation
Real-time power management with per-port control.24V/48V Passive PoE Support
Ensures compatibility with a wide range of APs and IP cameras.60W Total PoE Power Budget
Max 30W per port on ports 1–4.Layer 2 Enterprise Features
VLAN, LAG, IGMP Snooping, STP, DHCP Snooping, and more.Cloud and On-Premise Management
GDMS Networking, GWN Manager & embedded local controller.Network Diagnostics Suite
Cable test, port mirroring, loop detection, LLDP.High Reliability Metal Enclosure
Designed for continuous professional use.
Specifications
General
| Feature | Specification |
|---|---|
| Gigabit Ports | 8 |
| PoE Ports | Ports 1–4 |
| Enclosure | Metal |
| Dimensions | 190 × 100 × 28 mm |
| Weight | 0.44 kg (Unit) |
| Installation | Desktop / Wall-mount |
| Power Input | External 48–53.5 VDC / 1.22A |
| LED Indicators | Link/Activity (Green), PoE (Yellow), Power (Green) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
PoE Specifications
| Feature | Specification |
|---|---|
| Total PoE Budget | 60W |
| Max Per-Port Power | 30W (802.3af/at) |
| Passive 24V PoE | Ports 1–4 (configurable) |
| Passive 48V 4-pair | Port 1 (up to 60W) |
| Standards | 802.3af, 802.3at |
Network & Switching
| Feature | Specification |
|---|---|
| Switching Capacity | 16 Gbps |
| Non-blocking Throughput | 8 Gbps |
| Forwarding Rate | 11.9 Mpps |
| Forwarding Mode | Store-and-forward |
| Jumbo Frames | Up to 15K |
| Buffer Memory | 4 Mb |
| MAC Table | 8K |
Layer 2 Features
32 VLANs out of 4096 IDs
Voice VLAN
Port isolation
4 LAG groups
IGMP Snooping w/ report suppression
QoS, priority mapping, SP/WRR/WFQ scheduling
Bandwidth control & rate limiting
Management
Embedded controller
GDMS Networking cloud
GWN Manager on-premise
LLDP endpoint discovery
SNMP, cable diagnostics
Backup & restore, reboot, firmware upgrade
Security
Storm control
DHCP Snooping
Loop detection
Spanning Tree Protocol
PoE watchdog protection
Kensington lock support
What’s in the Box
1 × GWN7711P Switch
1 × Power Adapter
Quick Installation Guide
Why Choose the GWN7711P
Best-in-class PoE switch for SMB deployments
Supports both 24V & 48V PoE—rare and highly versatile
Ideal for powering APs, IP cameras, VoIP phones, and intercoms
Full cloud & on-premise management
Enterprise-grade VLAN & security features
Durable metal enclosure for professional installations
