Giganet GN-C6A-UUTP-PVC Cat6A U/UTP PVC Indoor Cable

Giganet Cat6A U/UTP Ethernet Cable

The Giganet Cat6A PVC Cable provides the high-performance physical layer infrastructure required for 10GBASE-T applications over copper. This unshielded twisted pair solution effectively mitigates alien crosstalk through advanced internal geometry and a central cross-filler. Consequently, network engineers can deploy high-speed uplinks and backbone cabling with confidence in signal integrity. The cable utilizes 23 AWG solid copper conductors to maintain low attenuation over the full 100-meter channel length. Therefore, it meets or exceeds all performance requirements defined in the ANSI/TIA-568-C.2 and ISO/IEC 11801 standards.

Key Features

• High Bandwidth Performance
  This transmission medium supports frequencies up to 500MHz for 10 Gigabit Ethernet applications.

• Advanced Internal Construction

  • Central PE cross-separator to maintain pair geometry
  • Optimized twist ratios to minimize Near-End Crosstalk (NEXT)
  • Solid 23 AWG bare copper conductors for superior conductivity

• PVC Jacket Durability
  The outer sheath consists of high-quality Polyvinyl Chloride designed for indoor horizontal cabling runs.

Specifications

What’s in the Box

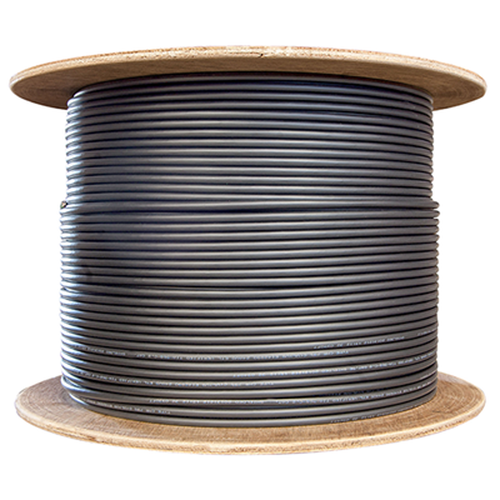

• 305m Reel or Box of Giganet Cat6A U/UTP PVC Cable

• Technical Compliance Documentation

Why Choose Giganet Structured Cabling

• This infrastructure component ensures future-proof bandwidth for evolving 10Gbps enterprise network requirements.

• The unshielded design simplifies termination processes for technicians compared to foiled or braided alternatives.

• Additionally, the solid copper construction supports high-wattage Power over Ethernet (PoE++) deployments without excessive heat buildup.

• Rigorous testing ensures this cabling solution maintains performance margins even in high-density rack environments.
