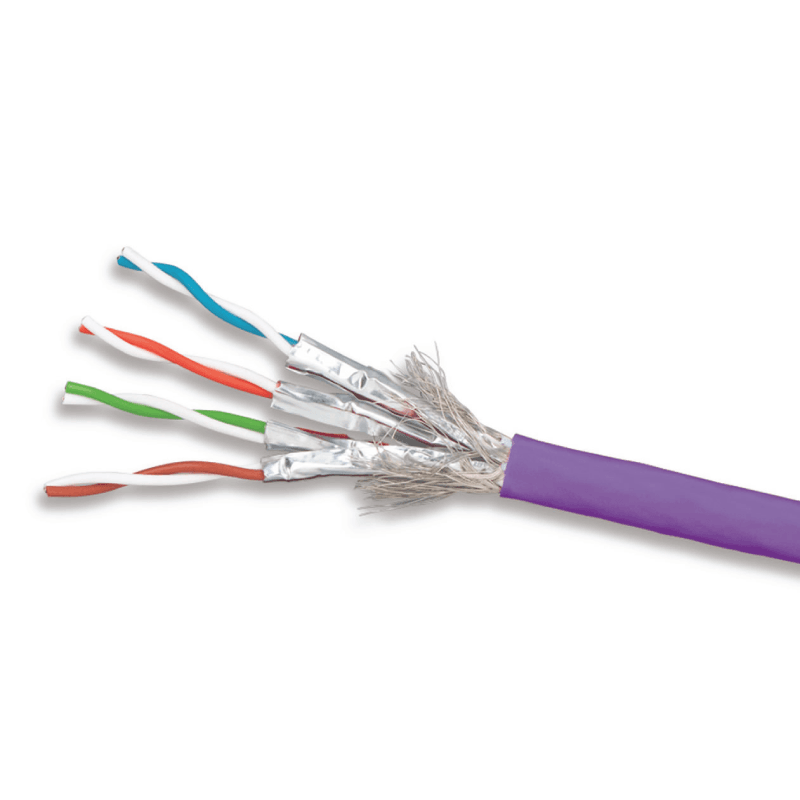

Giganet GN-C6A-F/FTP-LSOH Cat6a Solid Shielded Cable

Giganet GN-C6A-F/FTP-LSOH Cable

The Giganet Cat6a Shielded Cable provides a high-performance solution for structured cabling systems requiring 10Gbps bandwidth. This F/FTP (Foil over Foil Twisted Pair) cable utilizes solid copper conductors to ensure signal integrity across extended distances. Each pair is individually shielded with aluminum foil to minimize internal crosstalk. Additionally, an overall foil shield protects against external electromagnetic interference. This architecture makes the system suitable for high-density environments like data centers and server rooms. Consequently, it supports 10GBASE-T applications up to 100 meters.

Key Features

• F/FTP Shielding Architecture
  This design utilizes individual foil wraps for each pair and a collective outer foil layer to eliminate EMI.

• LSOH Safety Compliance

  • Reduces toxic halogen gas emission during combustion.
  • Limits smoke density for improved visibility in emergencies.

• High-Grade Copper Conductors
  The 23 AWG solid bare copper cores provide lower DC resistance for efficient Power over Ethernet delivery.

• Extended Bandwidth Performance

  • Tested up to 500 MHz frequencies.
  • Supports 10 Gigabit Ethernet throughput.

Specifications

What’s in the Box

• 1 x 305m Drum of Giganet F/FTP Cat6a LSOH Cable
• Technical Compliance Documentation

Why Choose Giganet F/FTP Cabling

• The dual-shielding method effectively mitigates Alien Crosstalk (AXT) in high-density tray installations.
• LSOH materials ensure compliance with modern B2B fire safety regulations for public and commercial buildings.
• Solid copper construction maintains the physical integrity required for permanent link deployments in vertical risers.
• Support for high-wattage PoE++ devices ensures compatibility with modern wireless access points and PTZ cameras.
• Strict adherence to ISO/IEC 11801 standards guarantees interoperability with standard RJ45 shielded connectors.
