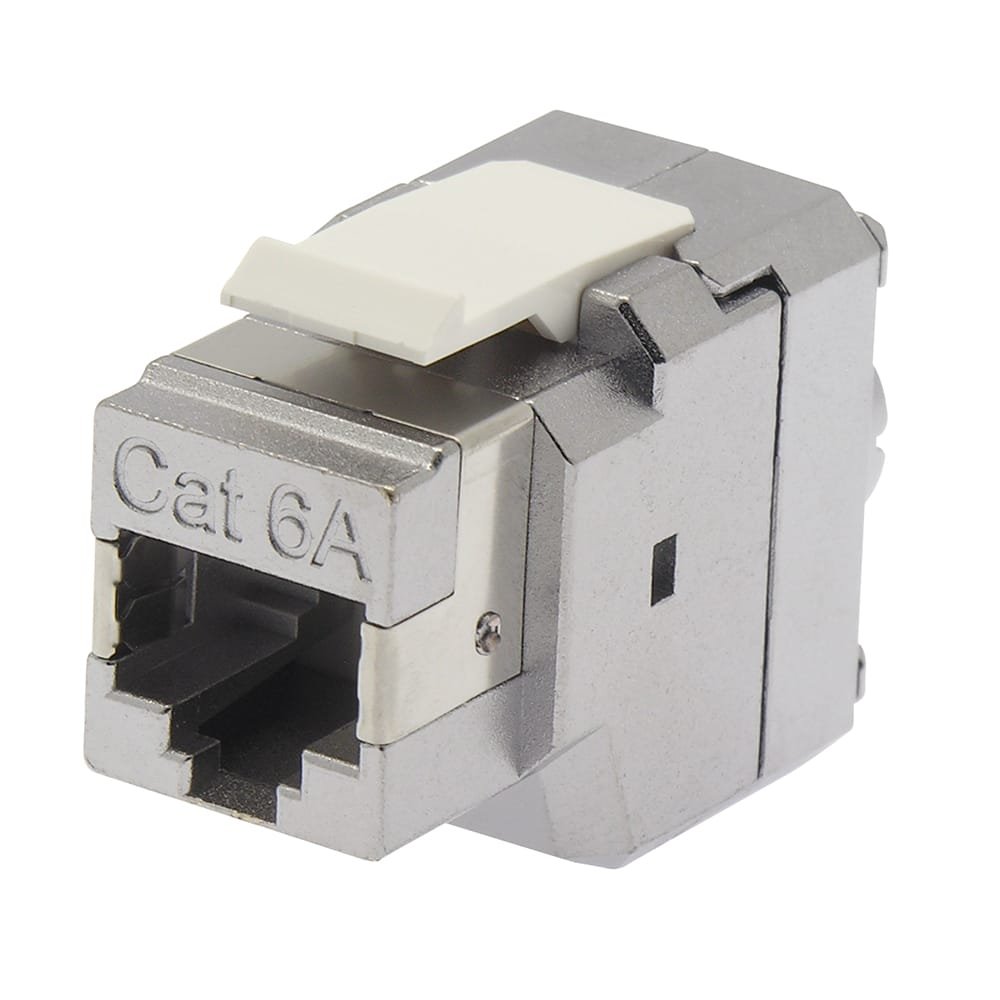

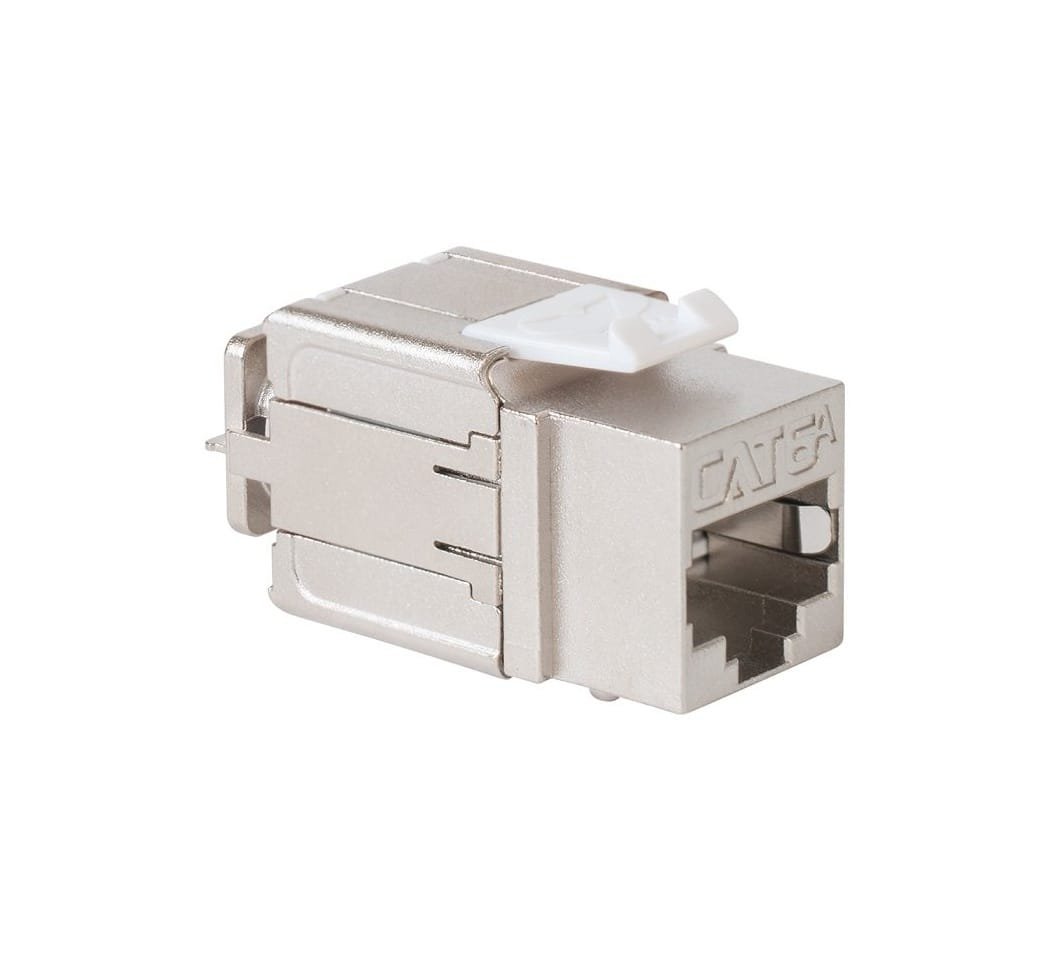

Giganet Cat6a FTP Keystone Jack Shielded GN-C6A-FTP-KJP

Cat6a FTP Keystone Jack

The Giganet Cat6a FTP Keystone jack provides 10 Gigabit Ethernet support for high-bandwidth infrastructure projects. This shielded module utilizes a zinc-alloy housing to prevent electromagnetic interference. Consequently, it maintains signal integrity in environments with high cable density. The component complies with ISO/IEC 11801 and ANSI/TIA-568-C.2 standards. It supports frequencies up to 500MHz. Therefore, it is suitable for data centers and enterprise backbones. The internal architecture features gold-plated contacts. This plating prevents oxidation and ensures low contact resistance. Additionally, the toolless termination design reduces installation time. It accepts 22 AWG to 26 AWG solid copper conductors. The 180-degree configuration allows for efficient cable management within wall plates or patch panels.

Key Features

• Shielded Zinc Housing
  The die-cast metal body provides 360-degree protection against alien crosstalk and external EMI.
• Toolless Termination
  Integrated IDC blocks allow for secure wire seating without the need for specialized punch-down tools.
• Gold-Plated Contacts
  Contact surfaces feature 50 micro-inches of gold plating to ensure maximum conductivity and durability.
• PoE Compatibility
  • Supports IEEE 802.3af (PoE)
  • Supports IEEE 802.3at (PoE+)
  • Supports IEEE 802.3bt (PoE++ Type 4)

Specifications

What’s in the Box

• Giganet GN-C6A-FTP-KJP Keystone Module
• Metallic Cable Tie
• Installation Instructions

Why Choose This Shielded Module

• This Giganet component ensures 10GBASE-T performance over copper by effectively mitigating alien crosstalk in dense bundles.
• The zinc alloy Faraday cage construction blocks signal leakage and external noise, which is vital for secure data environments.
• Installation technicians benefit from the toolless design, which significantly lowers the labor time required for large-scale deployments.
• The robust mechanical latching system prevents accidental disconnections in high-vibration rack environments. Additionally, the IDC contacts are rated for multiple re-terminations, providing long-term reliability for network maintenance. Therefore, this system offers a lower total cost of ownership compared to plastic alternatives. Consequently, it remains the standard choice for professional network engineers requiring high-density, high-performance connectivity.
