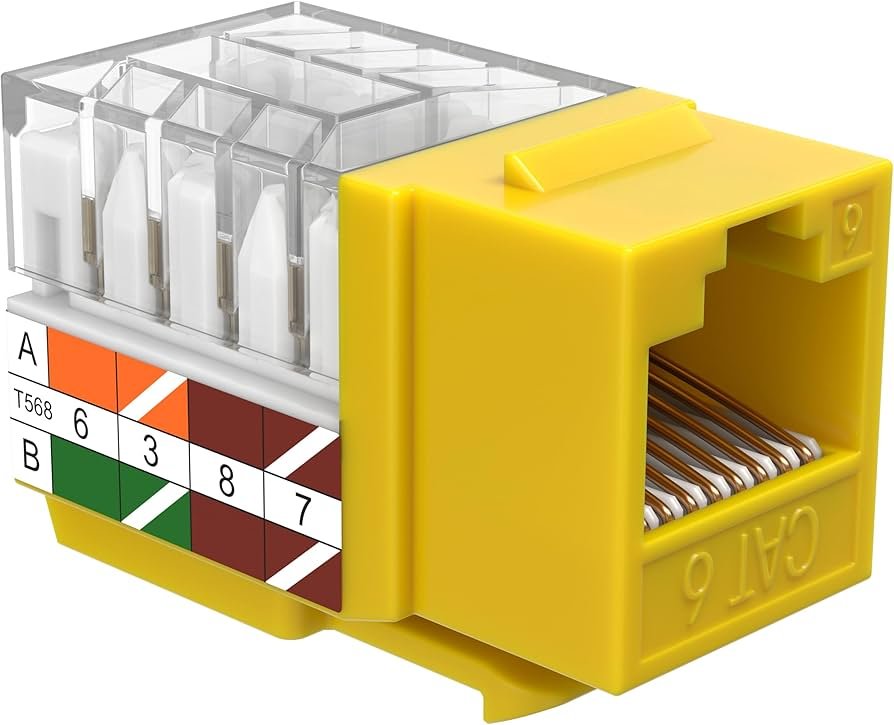

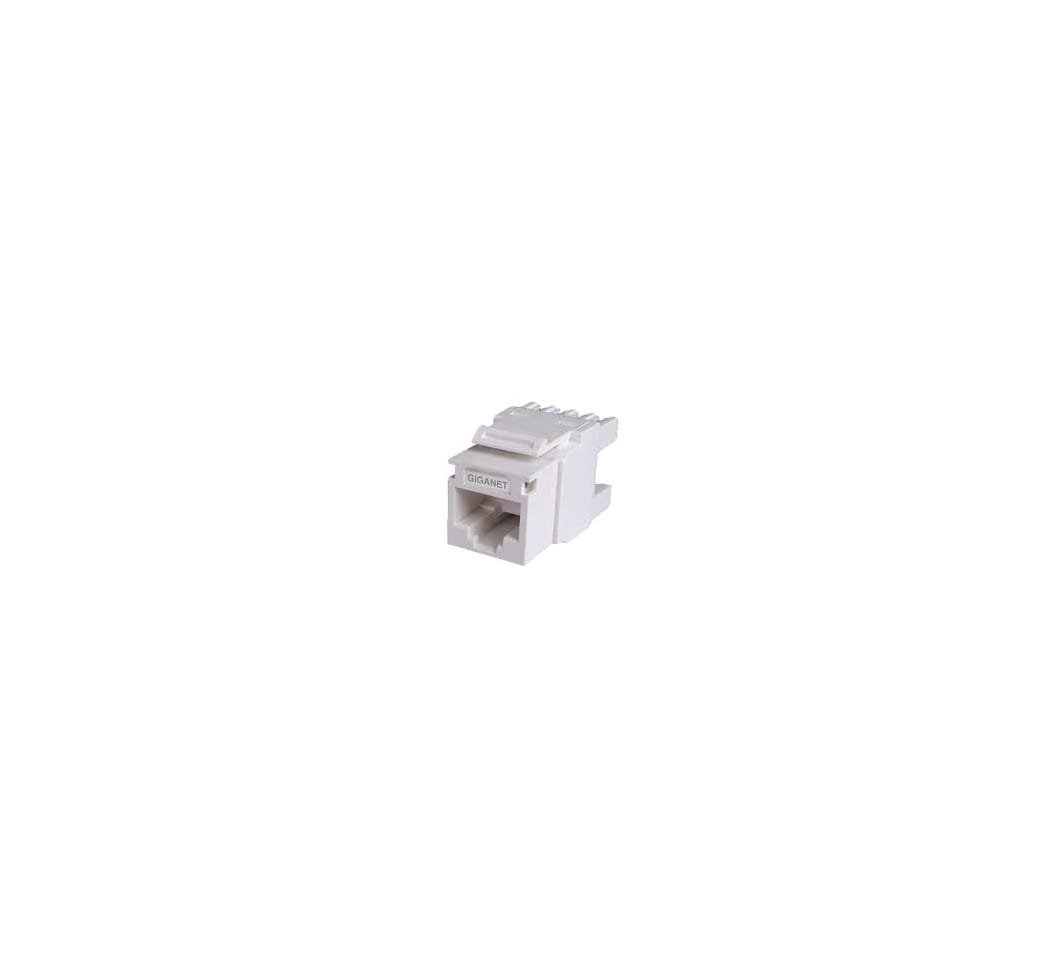

Giganet Cat6 UTP RJ45 Keystone Jack

Giganet Cat6 Module

The Giganet Keystone Jack serves as a high-performance termination point for structured cabling systems within enterprise network environments. This unshielded twisted pair (UTP) module complies with Category 6 standards, ensuring support for Gigabit Ethernet applications over copper media. It features a compact design that fits seamlessly into standard faceplates, surface mount boxes, and modular patch panels. The internal architecture utilizes high-quality phosphor bronze contacts with 50-micron gold plating to minimize signal degradation and oxidation. Consequently, this component maintains low insertion loss and high return loss across the 250MHz frequency spectrum. Network engineers utilize these modules to establish reliable horizontal cabling links that meet TIA/EIA-568-C.2 requirements.

Key Features

• Gold-Plated Contacts
  The RJ45 interface utilizes phosphor bronze pins with 50-micron gold plating to ensure maximum conductivity and corrosion resistance.
• Toolless Termination Design
  Integrated wire management caps allow for rapid termination without specialized impact tools, although standard punch-down methods remain compatible.
• Universal Wiring Support
  • Compatible with T568A and T568B color-coded wiring schemes.
  • Supports solid and stranded wire gauges from 22 AWG to 26 AWG.
• Durability Standards
  The outer housing consists of high-impact, flame-retardant UL 94V-0 rated plastic for long-term mechanical stability.

Specifications

What’s in the Box

• Giganet Cat6 UTP Keystone Module
• Termination Dust Cap
• Installation Guide

Why Choose Giganet Connectivity

• This module provides exceptional Near-End Crosstalk (NEXT) performance for high-density rack installations.
• The snap-in design ensures compatibility with a wide range of global standard wall plates and patch panels.
• Rigid mechanical construction prevents deformation during high-pressure punch-down sequences.
• Each unit undergoes strict factory testing to verify compliance with ISO/IEC 11801 transmission standards.
