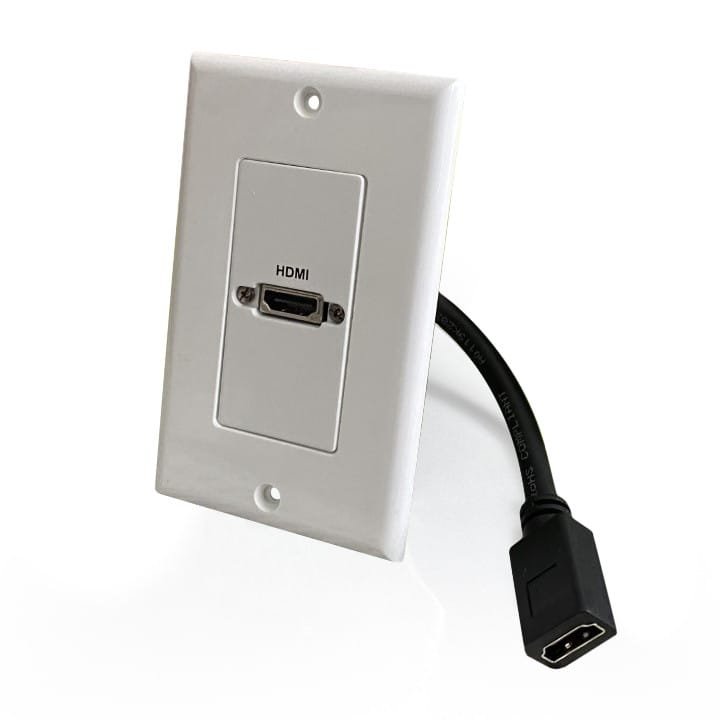

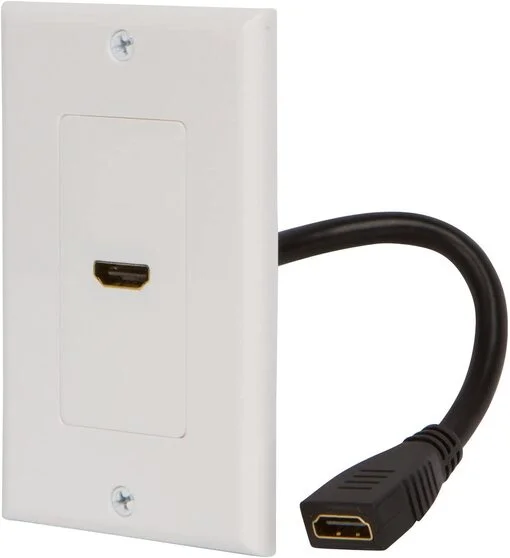

Generic HDMI Single Port Faceplate (86x86mm, Female-to-Female)

HDMI Single Port Faceplate

The Generic HDMI Single Port Faceplate (86x86mm, Female-to-Female) provides a professional termination point for high-definition multimedia interface cables within structured cabling environments. This module utilizes a standard 86mm x 86mm UK/European form factor. It fits standard electrical back boxes and surface mount boxes. The internal coupler features a female-to-female pass-through design. This configuration eliminates the need for field soldering or complex terminations. Consequently, installers can use pre-terminated HDMI cables behind the wall. The component supports high-speed HDMI specifications. Therefore, it maintains signal integrity for 4K video signals at 60Hz. It also supports 3D and Deep Color protocols. The housing consists of high-impact ABS plastic. This material ensures durability in high-traffic commercial settings. It prevents cracking during installation or maintenance cycles.

Key Features

• Standardized Form Factor
  The 86mm x 86mm dimensions ensure compatibility with standard single-gang back boxes used in commercial networking.

• Advanced Signal Support

  • Supports resolutions up to 4K Ultra HD at 60Hz.
  • Compatible with HDMI 2.0 and backward compatible with 1.4/1.3.
  • Maintains HDCP 2.2 compliance for protected content.

• Passive Coupler Architecture
  The female-to-female bulkhead design allows for rapid deployment without specialized AV tools.

Specifications

What’s in the Box

• 1 x Single Port HDMI Faceplate
• 1 x HDMI Female-to-Female Coupler (Pre-installed)
• 2 x Mounting Screws

Why Choose This Faceplate

• Gold-plated connectors minimize signal attenuation and provide superior conductivity for high-bandwidth data streams.
• The rigid bulkhead design protects internal in-wall cabling from the physical stress of frequent device reconnections.
• The passive pass-through design ensures transparent data transmission without the latency associated with active converters.
• Standard white finish ensures visual consistency with existing electrical and data infrastructure in modern office environments.
