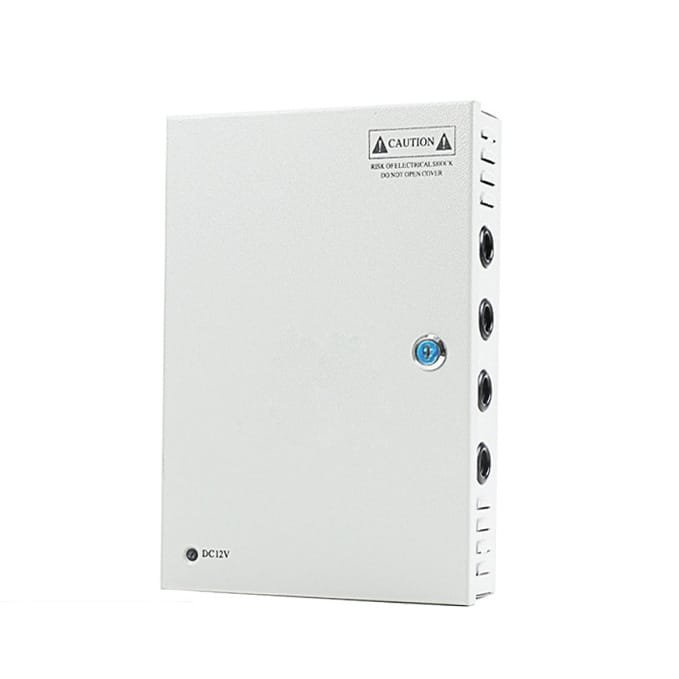

Generic 12V 20A CCTV Power Supply 240W Open Frame

12V 20A DC Power Unit

The CCTV 20A Power Supply provides a centralized 12V DC output solution for professional surveillance installations requiring high current density. This open-frame switching unit converts standard AC input into stable direct current for multiple cameras, DVR units, or access control hardware. Its architecture utilizes a pulse-width modulation (PWM) design to ensure high efficiency and minimal heat generation during operation. Furthermore, the metal mesh enclosure facilitates passive airflow, maintaining optimal thermal performance in enclosed environments. Consequently, this centralized power source reduces the need for individual wall adapters at each camera location.

Key Features

• Advanced Voltage Regulation
  The internal circuitry maintains a steady 12V output with low ripple noise to prevent interference in video signals.

• Multi-Point Protection Circuitry

  • Automatic short-circuit recovery protects the internal transformer from downstream faults.
  • Overload protection prevents damage when the connected load exceeds 240 watts.
  • Over-voltage clamping secures sensitive electronics against input power spikes.

• Industrial Grade Construction
  The unit features a heavy-duty aluminum alloy chassis that acts as a heat sink for the MOSFET components.

• Adjustable Potentiometer
  An integrated trimmer allows for fine-tuning the output voltage to compensate for cable voltage drops over long distances.

Specifications

What’s in the Box

• 1 x 12V 20A DC Switching Power Supply Unit
• Terminal Connector Cover

Why Choose This DC Switching Unit

• This centralized hardware simplifies cable management by consolidating power leads into a single distribution point. Additionally, the high amperage capacity allows for the simultaneous operation of up to 16-20 standard analog cameras. Therefore, it reduces installation time and labor costs for large-scale security deployments. Moreover, the robust protection mechanisms ensure long-term reliability for critical monitoring systems. However, users must ensure proper ventilation within equipment racks to prevent thermal throttling during peak load periods.
