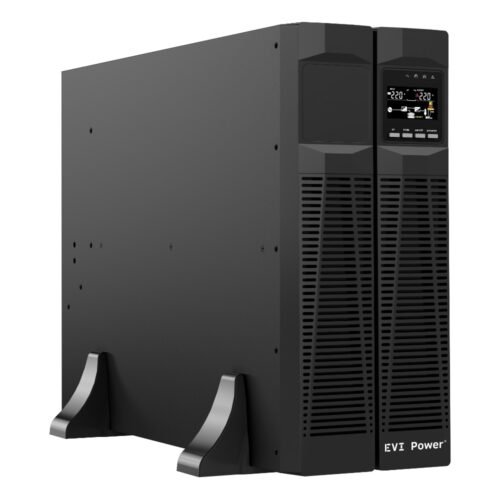

EVI 6000VA/5400W Online UPS – EP-UPS6000Y11OT

EVI 6000VA Online UPS

The EVI 6000VA/5400W Online UPS – EP-UPS6000Y11OT is a tower-style, single-phase uninterruptible power supply (UPS) designed for critical applications. This UPS utilizes online double conversion technology with DSP control. It provides a high output power factor of 0.9 PF. The unit supports N+X parallel redundancy for enhanced reliability. It also features a wide input voltage and frequency range, accommodating various power conditions. This ensures stable and consistent power delivery to connected equipment. The UPS also has comprehensive communication options for remote monitoring and management.

Key Features

• Online Double Conversion
  This technology ensures continuous, high-quality power by isolating the load from the raw AC power source.

• N+X Parallel Redundancy
  The system supports N+X parallel redundancy configuration, increasing system reliability and availability. If one UPS module fails, the other modules can take over the load, ensuring uninterrupted operation.

• High Output Power Factor
  The 0.9 power factor maximizes the utilization of the UPS capacity, allowing it to support more equipment compared to UPS units with lower power factors.

• Wide Input Voltage and Frequency Range
  It accepts a wide input voltage range of 120-276 Vac and a frequency range of 45-55 Hz (50 Hz) / 54-66 Hz (60 Hz), making it suitable for environments with fluctuating power conditions.

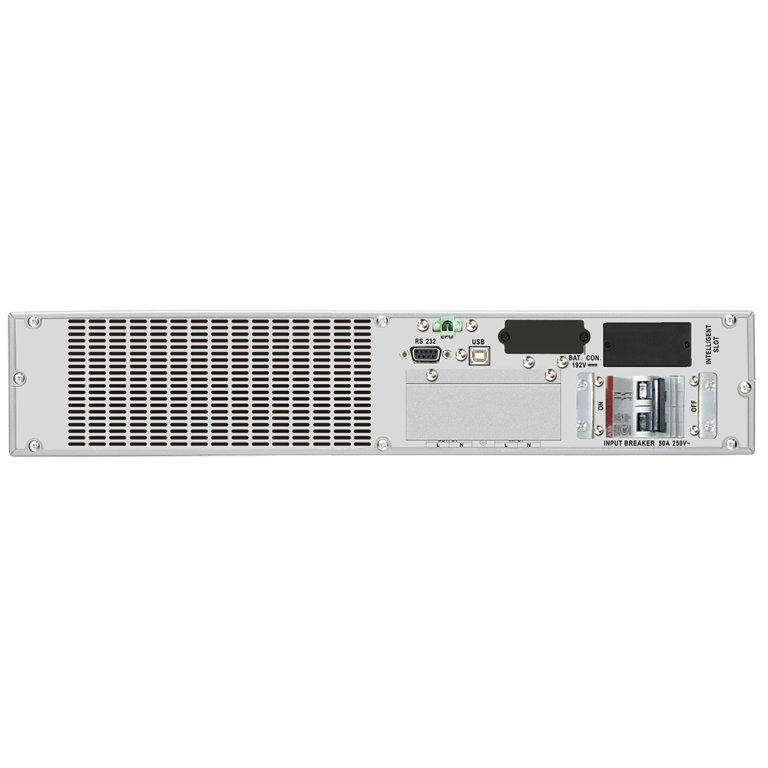

• Communication Ports

  • RS232 for local monitoring
  • USB for computer interface
  • Optional SNMP card for network management
  • Optional Parallel card for redundancy configuration
  • Optional Relay card for remote signaling

• Generator Compatibility
  This UPS is designed to work seamlessly with generator inputs, providing extended backup power during prolonged outages.

Specifications for EVI 6000VA/5400W Online UPS

What’s in the Box

• EVI 6000VA / 5400W Online UPS
• RS232 Cable
• USB Cable
• User Manual

Why Choose EVI 6000VA/5400W Online UPS

• It delivers clean and stable power, protecting sensitive equipment from voltage fluctuations, surges, and blackouts.
• The unit’s high power factor allows for efficient utilization of the UPS capacity, supporting more devices.
• The optional SNMP card provides remote monitoring and control, enabling proactive management of the UPS.
• The unit is designed for easy integration with existing power infrastructure and provides a reliable power backup solution.
