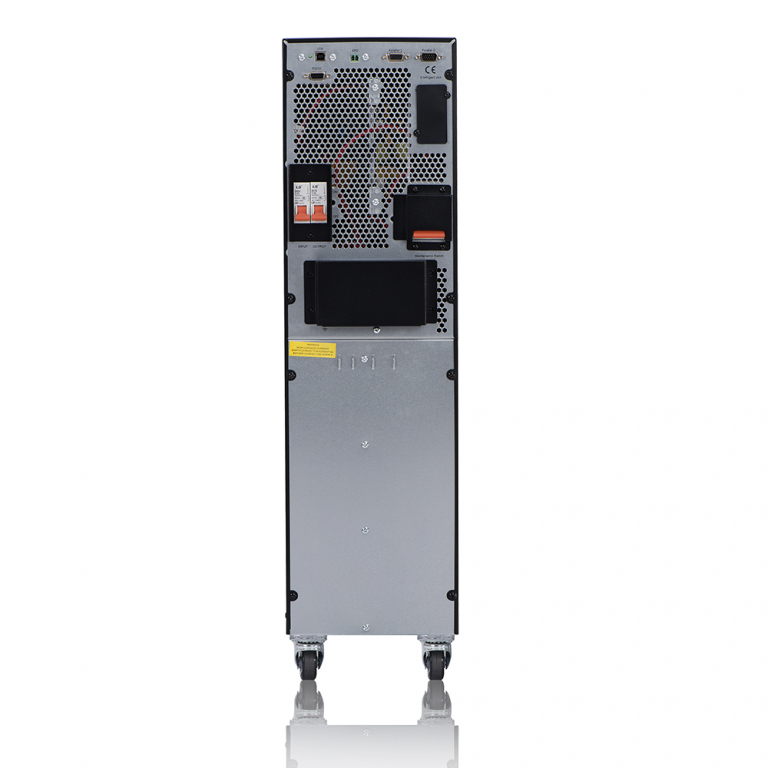

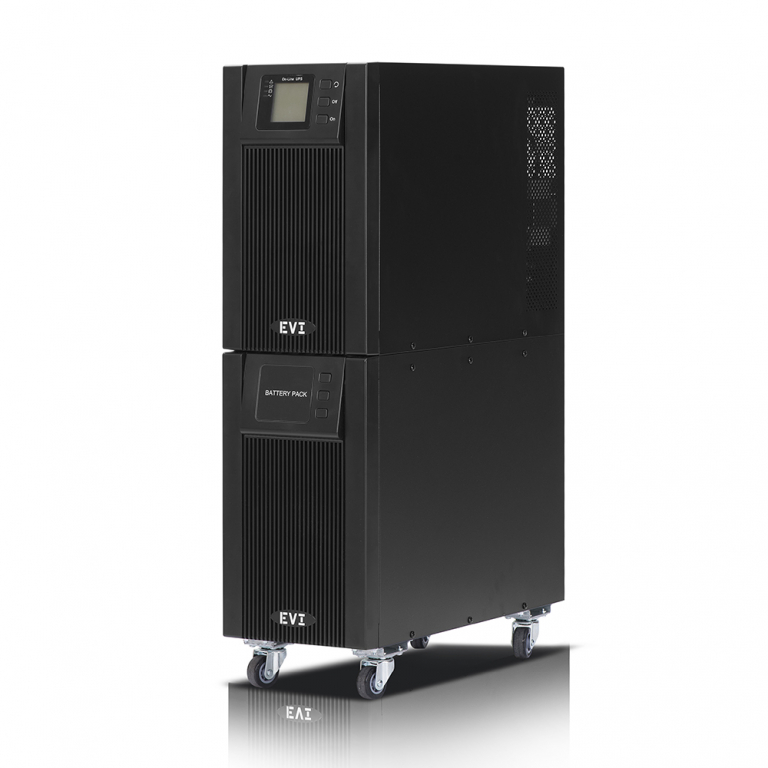

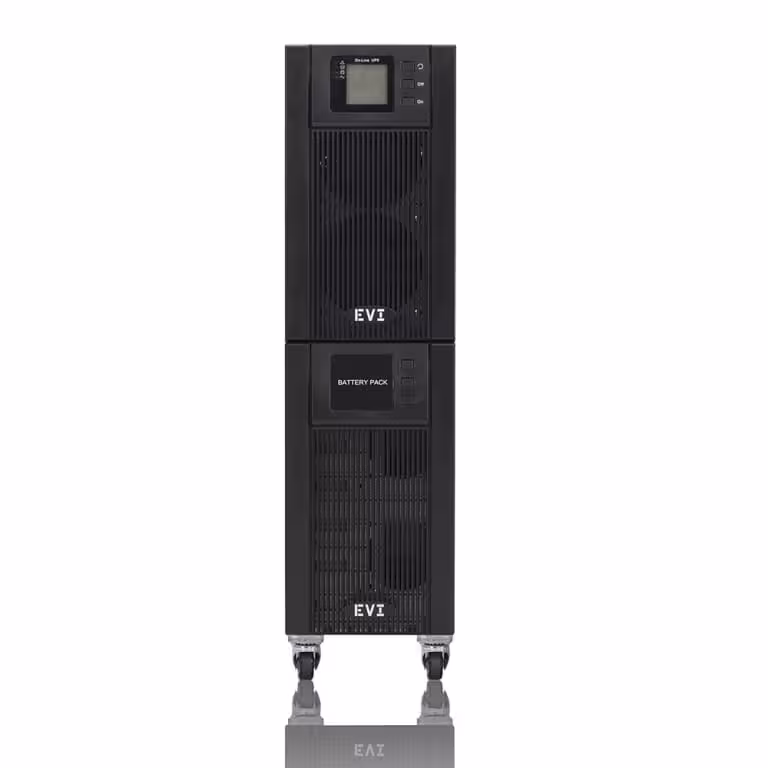

EVI 10000VA/9000W UPS
The EVI 10000VA/9000W Tower Online UPS is a single-phase uninterruptible power supply system providing reliable power protection. This UPS features online double conversion with DSP control. It also has a high output power factor of 0.9 PF, ensuring efficient power delivery. The wide input voltage range is 120 – 276 Vac, and the input frequency range is wide (50 Hz: 45 – 55 Hz / 60 Hz: 54 – 66 Hz).
Key Features
-
Online Double Conversion
This topology ensures a stable and clean power supply to connected devices. -
High Output Power Factor (0.9 PF)
Maximizes the utilization of power, providing more real power to the load. -
Wide Input Voltage and Frequency Range
This UPS can operate under various power conditions, enhancing its adaptability. -
Communication Ports
- RS232 for serial communication
- USB for device connectivity
- Optional: SNMP card, Parallel card, Relay card for enhanced monitoring and control
Specifications for EVI 10000VA/9000W Tower Online UPS
| Feature | Specification |
|---|---|
| Capacity | 10000VA / 9000W |
| Input Voltage Range | 120 – 276 Vac |
| Input Frequency Range | 50 Hz: 45 – 55 Hz / 60 Hz: 54 – 66 Hz |
| Output Power Factor | 0.9 PF |
| Communication Ports | RS232, USB, Optional: SNMP card / Parallel card / Relay card |
| Warranty | 2 Year (1 Year on battery) |
What’s in the Box
- EVI 10000VA/9000W Tower Online UPS
- RS232 Cable
- USB Cable
- Power Cord
- User Manual
Why Choose EVI 10000VA/9000W Tower Online UPS
- Reliable power protection for critical equipment.
- Efficient power utilization with a high output power factor.
- Adaptable to various power conditions with a wide input voltage range.
- Enhanced monitoring and control capabilities through optional communication cards.
- Easy to monitor UPS status with the rotating LCD display.
- Supports generator input for extended power backup during outages.
- N+X parallel redundancy providing higher availability.
