D-Link NLU-FMDLSCR-24 24-Port SC Duplex Multimode Fiber Patch Panel

D-Link 24-Port Fiber Patch Panel

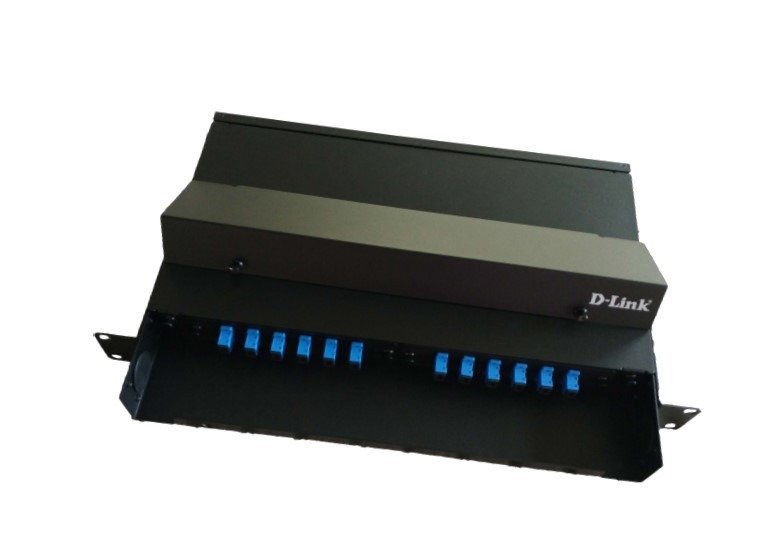

The D-Link SC Fiber Panel is a high-density Light Interface Unit (LIU) designed for the termination and management of fiber optic cables in 19-inch rack environments. This fixed-type enclosure provides a centralized point for cross-connecting backbone cabling to active networking equipment. The chassis occupies 1U of rack space and comes pre-loaded with 12 SC Duplex multimode adapters, facilitating up to 24 fiber terminations. Its robust construction utilizes cold-rolled steel with a durable powder-coated finish to ensure long-term structural integrity in data center and telecommunication room deployments.

Key Features

• High-Density Connectivity
  This unit supports 24 fiber cores through 12 pre-installed SC Duplex adapters for efficient space utilization.

• Industrial-Grade Construction

  • 1.2mm cold-rolled steel chassis
  • Electrostatic powder coating for corrosion resistance
  • Integrated cable management rings for bend radius protection
Fixed Chassis Design
The non-sliding architecture provides maximum stability for permanent installations where frequent access is not required.
Optical Performance Standards
Equipped with high-quality alignment sleeves that ensure low insertion loss and high return loss for multimode signals.

Specifications

What’s in the Box

• D-Link 24-Port SC Duplex Multimode Patch Panel (Fixed)

• 12 x SC Duplex Multimode Adapters (Pre-installed)

• Cable Ties and Management Accessories

• Rack Mounting Screw Kit

Why Choose This D-Link Fiber Solution

• The chassis simplifies fiber organization by providing dedicated entry points for incoming loose-tube or tight-buffered cables.

• Internal routing clips maintain the critical bend radius of optical fibers to prevent signal attenuation.

• The pre-loaded configuration reduces installation time for network engineers during site deployment.

• Standardized 19-inch dimensions ensure compatibility with all universal server racks and network cabinets.

• Reliable SC connectors provide a secure push-pull locking mechanism for consistent optical alignment.
