D-Link NCB-FS09S-SC1 SC Single Mode Simplex Pigtail 1m
Original price was: KSh 550.00.KSh 400.00Current price is: KSh 400.00.
D-Link NCB-FS09S-SC1 SC Single Mode Simplex Pigtail 1m
| Fiber Type | Single Mode 9/125μm |
| Connector | SC Simplex |
| Length | 1.0 Meter |
| Buffer | 0.9mm Tight Buffer |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

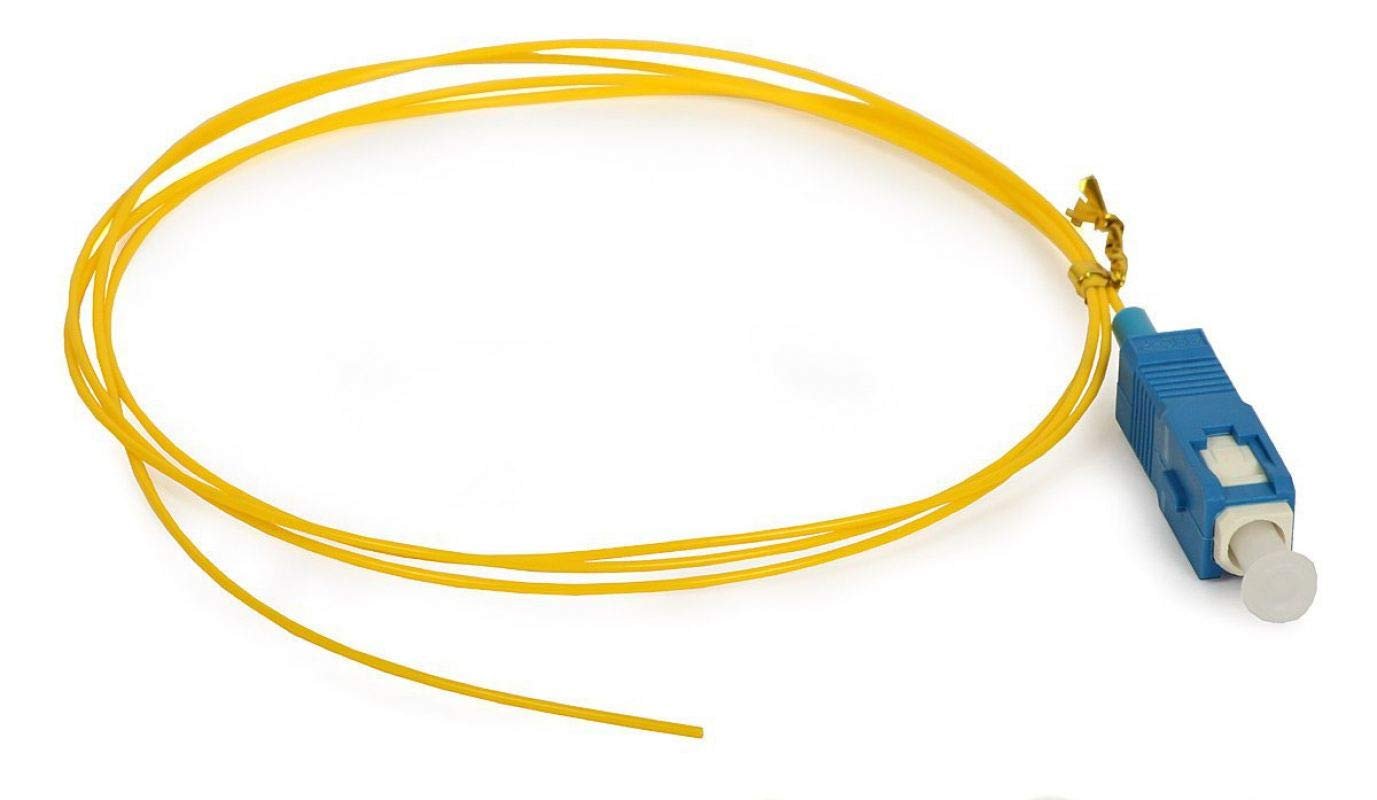

D-Link NCB-FS09S-SC1 Pigtail
The D-Link SC Simplex Pigtail provides a high-reliability termination solution for single-mode fiber optic networks requiring precision alignment and low signal loss. This 1-meter optical component features a 9/125μm core and cladding diameter, making it fully compatible with OS1 and OS2 infrastructure. Network engineers utilize this pigtail for fusion splicing onto incoming backbone cables within patch panels or termination boxes. The assembly incorporates a high-grade ceramic ferrule to ensure stable physical contact and optimal light transmission. Consequently, it maintains high performance in high-density telecommunication environments.
Key Features
Precision SC Connector
The pre-terminated SC connector utilizes a push-pull locking mechanism to prevent accidental disconnection during maintenance.Single-Mode Optimization
- Optimized for 1310nm and 1550nm wavelengths.
- Minimal insertion loss below 0.3dB for signal integrity.
- High return loss exceeding 50dB to prevent back-reflection.
Durable Construction
The 0.9mm tight buffer jacket provides essential protection while remaining flexible for tight routing in enclosures.Standard Compliance
- Meets TIA/EIA-568-C.3 industry standards.
- Complies with Telcordia GR-326-CORE specifications.
- RoHS compliant materials ensure environmental safety.
Specifications
| Feature | Specification |
|---|---|
| Fiber Type | Single Mode 9/125μm (OS2) |
| Connector Type | SC Simplex |
| Length | 1 Meter |
| Buffer Diameter | 0.9mm Tight Buffer |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Operating Temp | -40°C to +75°C |
| Ferrule Material | Zirconia Ceramic |
What’s in the Box
1 x D-Link NCB-FS09S-SC1 SC Single Mode Simplex Pigtail (1m)

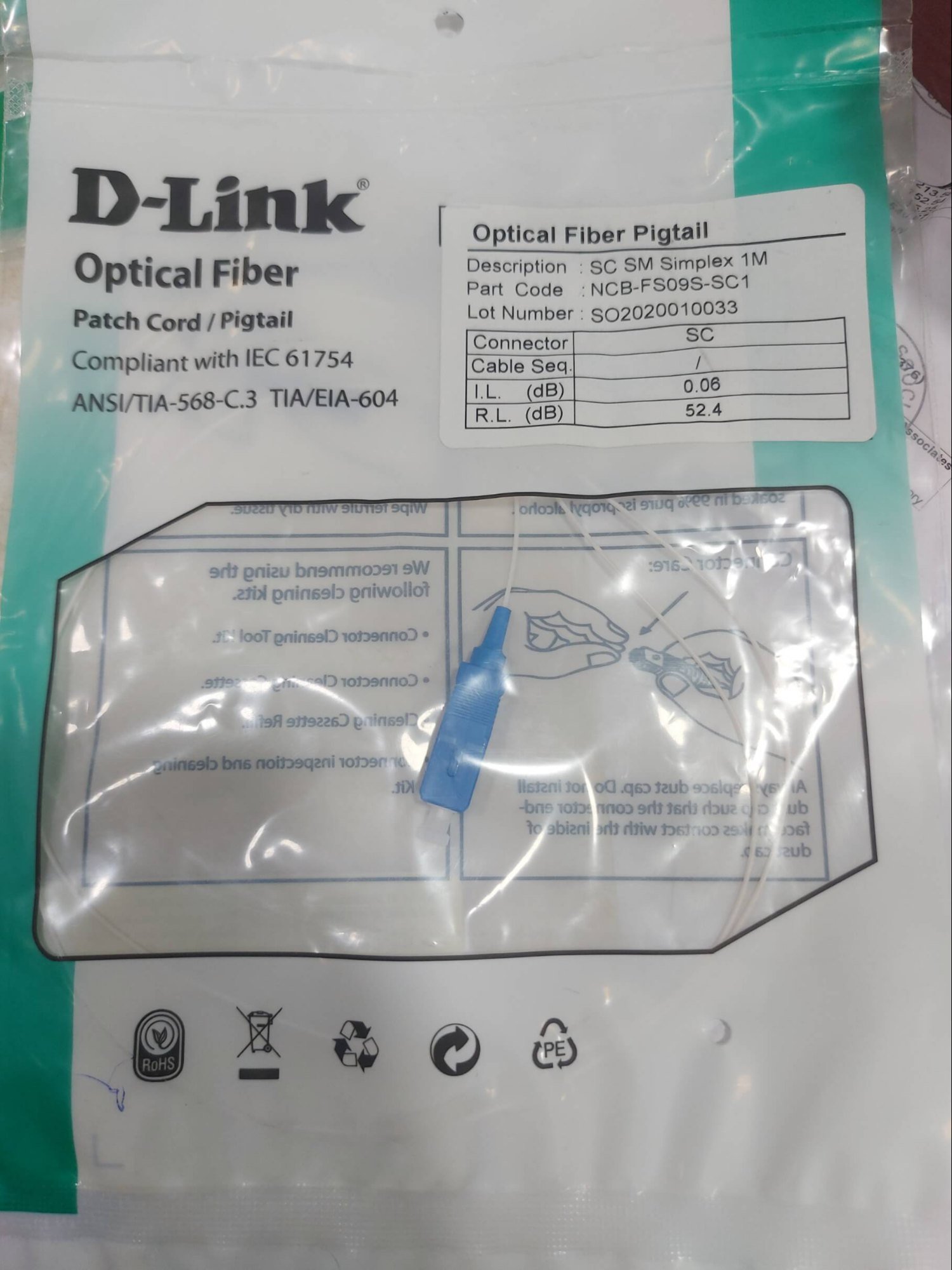

Technical Test Report
Why Choose This Optical Pigtail
The high-precision ceramic ferrule ensures consistent alignment and reduces data packet retransmissions in enterprise networks.
Standardized 0.9mm buffering facilitates easy stripping and splicing with all major industrial fusion splicers.
Rigid quality control during manufacturing guarantees that each unit meets strict attenuation parameters before deployment.
This termination cable supports long-reach applications including FTTH, CATV, and data center backbone interconnects.
Using factory-terminated connectors eliminates the variables associated with field termination, resulting in a more stable network link.
