D-Link NCB-FM51O-AULS-06 6-Core OM3 10G Armored Outdoor Fiber Cable

D-Link 6-Core Armored Fiber

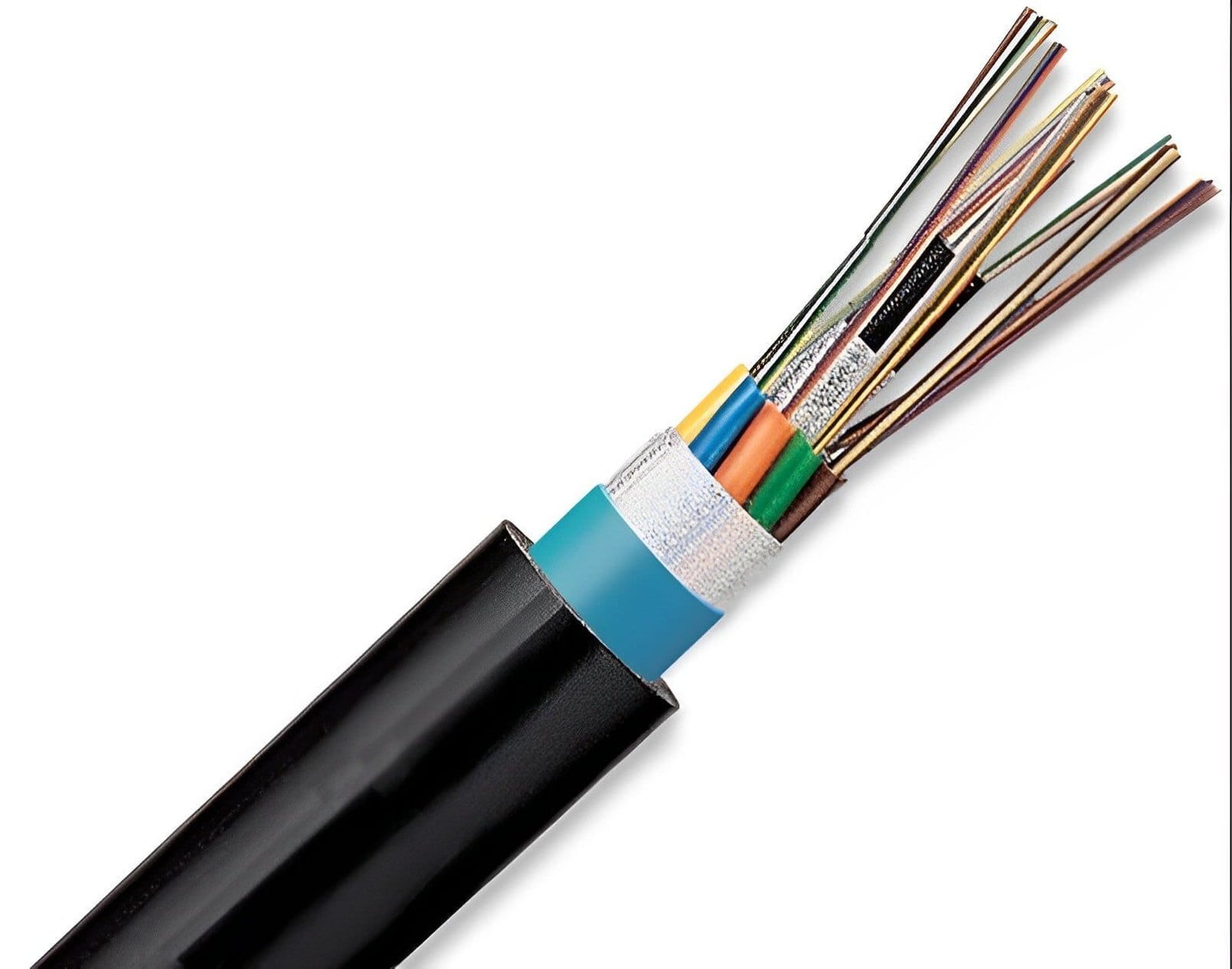

The D-Link 6-Core OM3 Cable facilitates high-density data transmission for 10 Gigabit Ethernet backbones. This outdoor-rated fiber optic solution utilizes a unitube construction to house six color-coded multimode fibers. It supports high bandwidth over medium distances, making it suitable for campus networks and inter-building links. The integrated corrugated steel tape armoring provides essential protection against rodents and mechanical stress in rugged environments.

Key Features

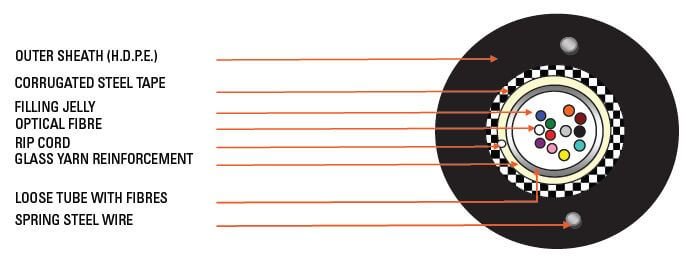

• Unitube Design
  A single central loose tube protects the internal fibers from environmental pressure and moisture ingress.

• Mechanical Armoring

  • Corrugated steel tape (CST) provides superior rodent resistance.
  • The armoring increases the crush resistance for direct burial or duct installations.

• LSZH Outer Sheath
  The Low Smoke Zero Halogen jacket ensures safety by reducing toxic gas emissions during fire incidents.

• Optical Performance

  • Supports 10Gbps data rates up to 300 meters using 850nm VCSELs.
  • OM3 50/125um glass provides high modal bandwidth for modern network demands.

Specifications

What’s in the Box

• D-Link 6-Core OM3 Armored Outdoor Fiber Cable (Sold per meter/drum)

• Technical Specification Sheet

Why Choose this Fiber Solution

• The armored construction eliminates the requirement for extra conduit in many outdoor environments.

• LSZH rating allows the cable to transition safely from outdoor ducts into indoor building risers.

• Central tube design simplifies the termination process for network engineers and installers.

• High tensile strength ensures the cable withstands significant pulling forces during complex installations.
