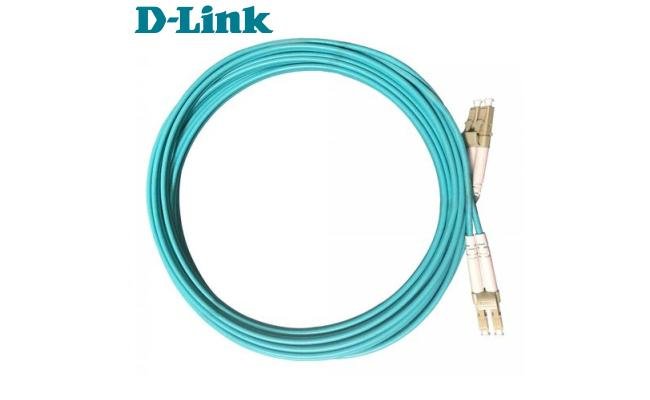

D-Link NCB-FM51D-LCSC-1 LC-SC Duplex OM3 Multimode Fiber Patch Cord 1M
Original price was: KSh 950.00.KSh 650.00Current price is: KSh 650.00.
D-Link NCB-FM51D-LCSC-1 LC-SC Duplex OM3 Multimode Fiber Patch Cord 1M
| Feature | Specification |
|---|---|
| Connector Type | LC to SC Duplex |
| Fiber Grade | OM3 Multimode |
| Core Diameter | 50/125 µm |
| Length | 1 Meter |
| Jacket Type | LSZH |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
D-Link LC-SC OM3 Patch Cord
The D-Link OM3 Fiber Patch cord provides a high-performance interconnect solution for 10 Gigabit Ethernet applications within data centers and enterprise networks. This 1-meter duplex assembly features laser-optimized 50/125µm multimode fiber designed to support high-speed data transmission over longer distances compared to standard OM2 cabling. The cable utilizes precision-engineered LC and SC connectors to ensure low insertion loss and high return loss across the optical link. This infrastructure component adheres to TIA/EIA-568-C.3 standards. Consequently, it ensures interoperability with existing network hardware including SFP+ modules and high-density patch panels.
Key Features
Laser-Optimized OM3 Fiber
The 50/125 micron core supports 10Gbps data rates up to 300 meters using 850nm VCSEL sources.Hybrid Connector Configuration

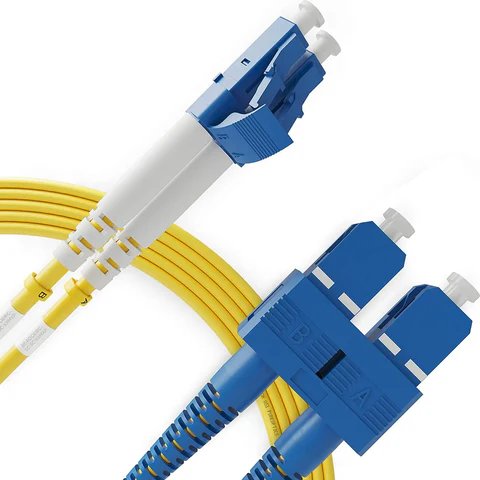

LC to SC termination allows seamless integration between legacy SC-based hardware and modern high-density LC equipment.LSZH Jacket Construction
- Low Smoke Zero Halogen material reduces toxic gas emission.
- Complies with fire safety regulations for indoor installations.
Duplex Communication Path
Two individual fiber strands enable simultaneous bidirectional data flow for high-bandwidth networking environments.
Specifications
| Feature | Specification |
|---|---|
| Fiber Category | Multimode OM3 (Laser Optimized) |
| Connector Type A | LC Duplex |
| Connector Type B | SC Duplex |
| Core/Cladding Diameter | 50/125 µm |
| Cable Length | 1 Meter |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 30 dB |
| Operating Temperature | -20°C to +70°C |
What’s in the Box
1 x D-Link NCB-FM51D-LCSC-1 LC-SC OM3 Duplex Fiber Patch Cord (1M)
Test Result Documentation
Dust Caps (Pre-installed)
Why Choose D-Link Fiber Infrastructure
This optical assembly undergoes rigorous factory testing to maintain signal integrity in high-density switching environments.
The 10G-ready architecture provides necessary headroom for future network scaling and bandwidth-intensive cloud applications.
Standardized connector tolerances prevent mechanical misalignment during repeated mating cycles in patch frames.
