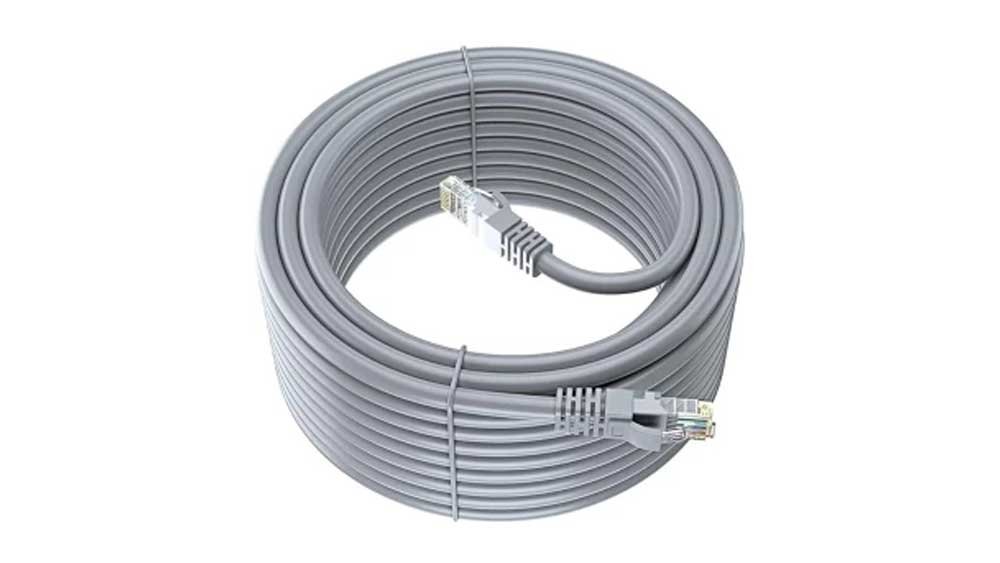

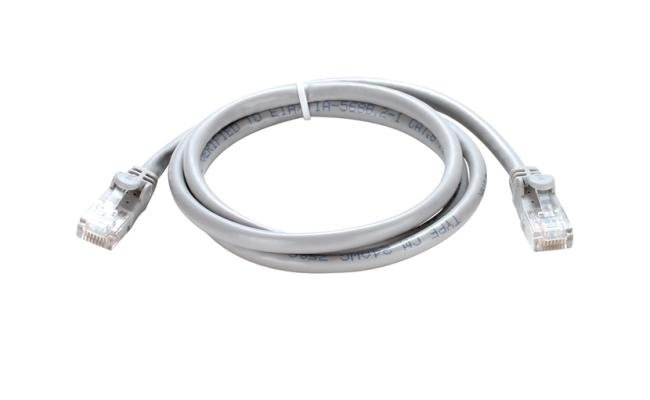

D-Link NCB-C6UGRYR1-15 Cat6 UTP 15m Grey Patch Cord

NCB-C6UGRYR1-15 15m Ethernet Cable

The D-Link Cat6 Patch Cord (NCB-C6UGRYR1-15) provides a high-performance 15-meter interconnection solution for Gigabit Ethernet architectures and high-density networking environments. This component utilizes 24 AWG stranded bare copper conductors to ensure optimal signal conductivity and flexibility during deployment. It facilitates data transmission rates up to 1000 Mbps and supports a bandwidth frequency of up to 250 MHz. Consequently, this networking cable exceeds the performance requirements specified by the TIA/EIA-568-C.2 and ISO/IEC 11801 standards.

Key Features

• 24 AWG Stranded Conductor
  The multi-strand copper design improves cable flexibility and prevents internal breakage during routing through tight spaces.

• 50-Micron Gold Plating

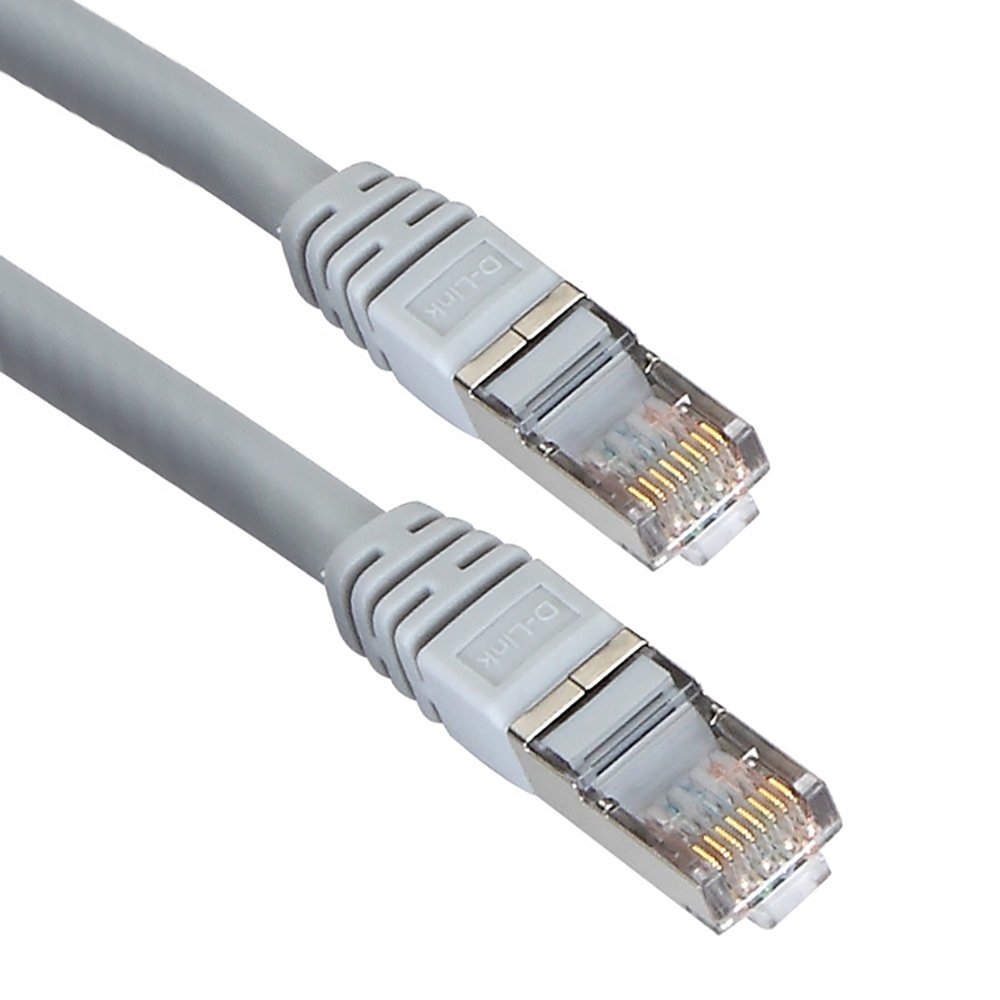

  Modular RJ45 connectors feature heavy-duty gold-plated contacts to resist oxidation and maintain high signal integrity over time.

• Advanced UTP Architecture

  • Four unshielded twisted pairs minimize Near-End Crosstalk (NEXT).
  • HD-PE insulation maintains the structural integrity of the internal pairs.

Specifications

What’s in the Box

• 1 x D-Link NCB-C6UGRYR1-15 Cat6 UTP 15m Patch Cord

Why Choose This Cable

• This 15m networking link provides the reach required for long-distance horizontal cabling in large server rooms.

• The high-quality PVC jacket ensures flame resistance and compliance with UL safety standards for indoor installations.

• Each unit undergoes rigorous testing to guarantee low insertion loss and high signal-to-noise ratios for critical data paths.

• Stranded conductors provide superior bend radius support compared to solid core alternatives, facilitating easier rack management.
