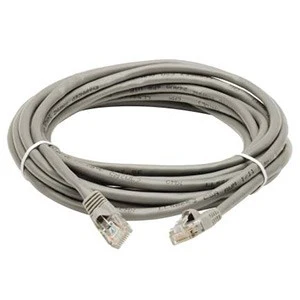

D-Link NCB-C6UGRYR1-10 Cat6 UTP 10m Patch Cord

D-Link 10m Cat6 Ethernet Cable

The D-Link Cat6 Patch Cord facilitates high-speed data transfers within structured cabling systems. This 10-meter grey cable utilizes four unshielded twisted pairs to maintain signal integrity. It supports 1000BASE-T Gigabit Ethernet standards efficiently. Network engineers deploy these cables for switch-to-patch panel or server-to-switch connections. The 24 AWG stranded copper construction ensures flexibility during installation. It also maintains low electrical resistance across the full length. This component meets all ANSI/TIA/EIA-568-C.2 performance requirements.

Key Features

• Internal Architecture
  The cable consists of four pairs of 24 AWG stranded copper wires for maximum conductivity.

• Frequency Response
  This model operates at frequencies up to 250 MHz for optimized throughput in Gigabit networks.

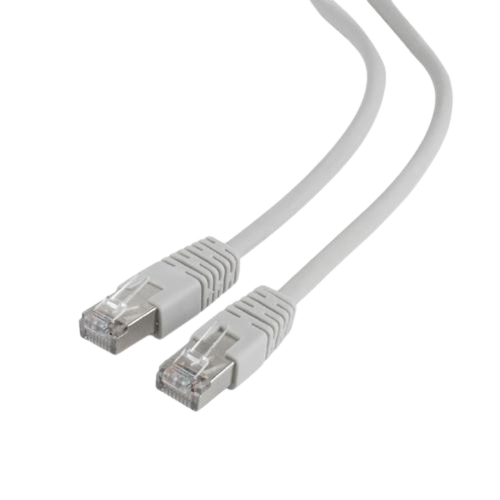

• Connector Durability

  • 50-micron gold-plated RJ45 contacts
  • Molded snagless boot design
  • Integrated strain relief for terminal protection

Crosstalk mitigation remains a priority in the Cat6 specification. This manufacturer implements specific twist ratios for each internal pair. This reduces Near-End Crosstalk (NEXT) during high-frequency operations. The 24 AWG gauge provides a thicker conductor compared to 26 AWG alternatives. This thickness reduces DC resistance and heat generation. Consequently, the link maintains stable performance during prolonged high-traffic periods. The PVC outer sheath protects the internal copper pairs from physical abrasion. It also provides flame retardancy according to standard safety ratings. The RJ45 connectors use a staggered pin configuration. This design further minimizes internal noise. The grey color allows for easy identification in standard color-coded cabling schemes.

Specifications

What’s in the Box

• 1 x D-Link NCB-C6UGRYR1-10 Cat6 UTP 10m Patch Cord (Grey)

Why Choose This Networking Cable

• High-grade copper ensures minimal signal attenuation over the 10-meter span.

• The PVC jacket offers high flexibility in high-density server rack environments.

• Full compliance with TIA/EIA-568-C.2 standards guarantees multi-vendor interoperability.

• Gold-plated contacts prevent oxidation and maintain low-resistance connections over time.
