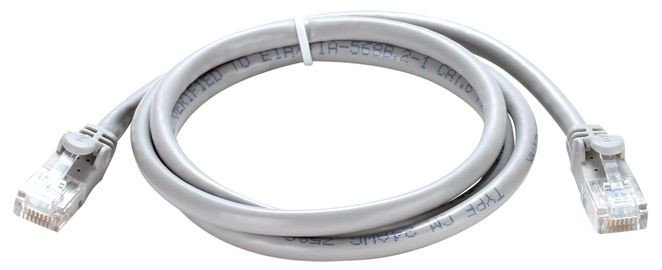

D-Link NCB-6AUGRYR1-3 Cat6A 10G UTP 24AWG 3m Patch Cord

D-Link NCB-6AUGRYR1-3 Ethernet Cable

The D-Link Cat6A Patch Cord facilitates high-performance networking by supporting 10GBASE-T Ethernet standards over a 3-meter distance. This specific cable utilizes 24 AWG multi-strand conductors to ensure flexibility while maintaining signal integrity. The unshielded twisted pair (UTP) design simplifies installation in high-density rack environments. It operates at frequencies up to 500 MHz, effectively doubling the bandwidth of standard Cat6 alternatives. Engineers deploy these cables to connect servers, switches, and patch panels within data centers. The grey PVC jacket provides robust protection against physical wear. Furthermore, the molded strain relief boots prevent damage to the RJ45 connectors during frequent patching cycles.

Key Features

• 10Gbps Data Transmission
  This interconnect supports high-speed 10 Gigabit Ethernet connectivity for bandwidth-intensive applications.

• 24 AWG Copper Conductors
  The use of thicker gauge wire reduces resistance and improves signal-to-noise ratios across the link.

• Advanced Physical Construction

  • 50-micron gold-plated contacts prevent oxidation.
  • Snagless boot design protects the locking clip.
  • Flame-retardant PVC outer jacket ensures safety.

Specifications

What’s in the Box

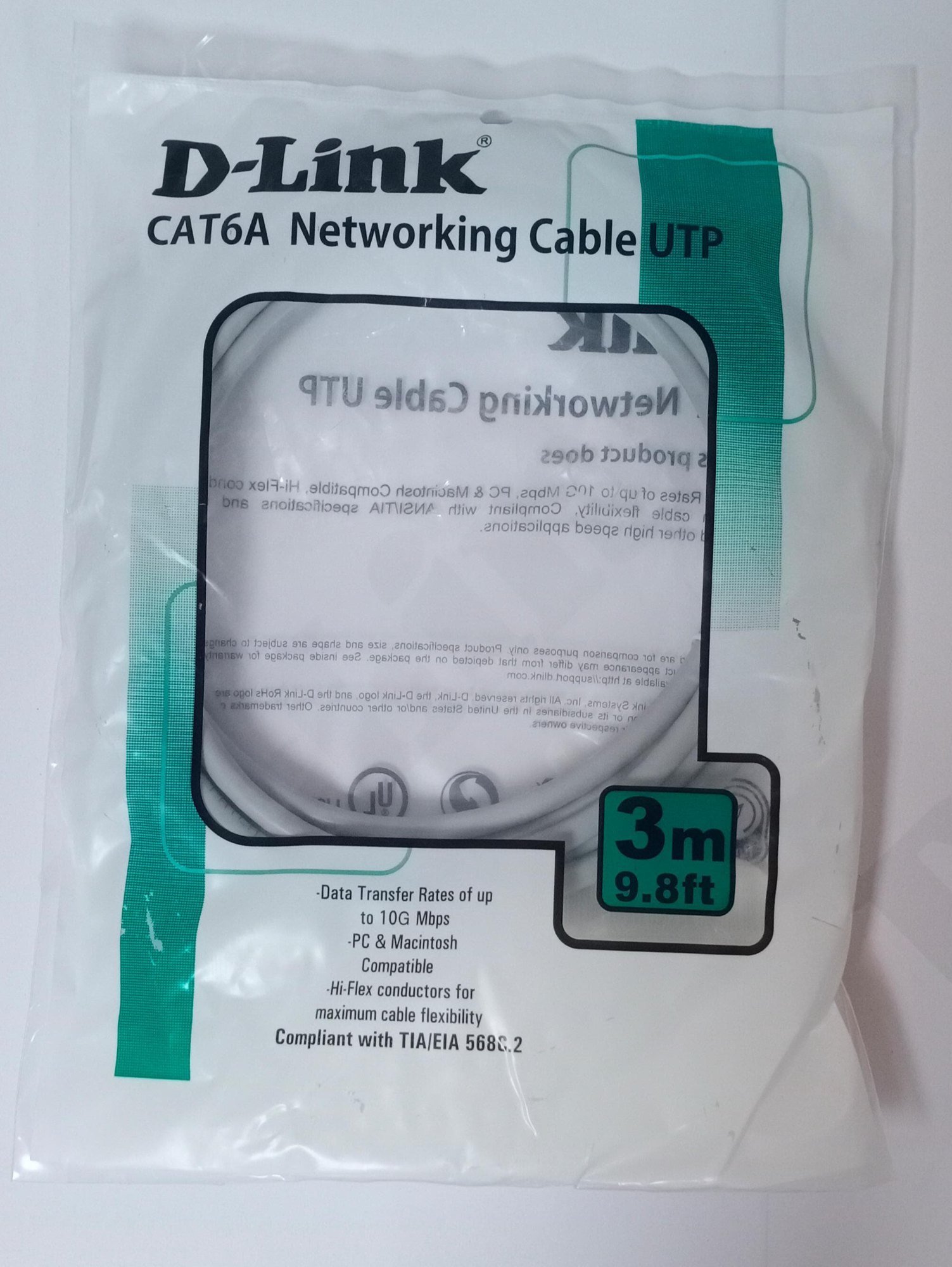

• 1 x D-Link NCB-6AUGRYR1-3 Cat6A 3m Patch Cord (Grey)

Why Choose This Networking Lead

• The cable meets rigorous TIA/EIA standards for crosstalk and return loss to ensure stable 10G performance.

• Stranded copper construction allows for a tighter bend radius compared to solid-core alternatives in cramped cabinets.

• Gold-plated pins maintain low contact resistance over years of operation in enterprise server rooms.

• UTP architecture eliminates the need for grounding wires while providing sufficient noise immunity for standard office layouts.

• The 3-meter length offers sufficient reach for cross-rack patching without creating excessive cable slack or congestion.
