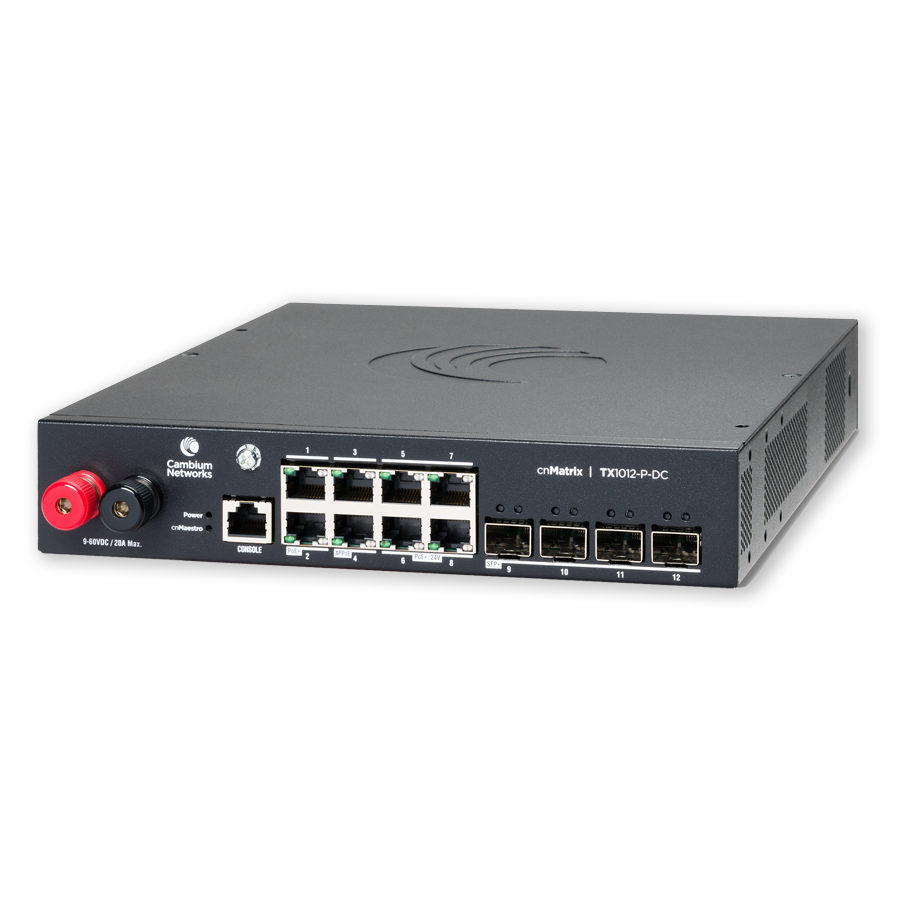

Cambium cnMatrix TX1012-P-DC Managed L2/L3 Switch

Cambium cnMatrix TX1012-P-DC Managed Enterprise L2/L3 Switch

The Cambium cnMatrix TX1012-P-DC Managed Enterprise L2/L3 Switch  is a high-performance, fully managed Layer 2/Layer 3 switch designed specifically for Wireless Internet Service Providers (WISPs) and enterprise networks requiring flexible, intelligent PoE solutions and simplified deployment. This non-blocking, high-throughput switch delivers 96 Gbps line-rate performance with a forwarding rate of 120 Mpps, ensuring reliable and low-latency network connectivity for demanding environments.

Key Features

• High-Performance Switching
  96 Gbps non-blocking architecture with 120 Mpps forwarding rate for line-rate performance.

• Flexible PoE Support

  • 8× 802.3af/at/bt PoE+ ports

  • 4× 24V passive PoE ports (up to 15 W)

  • 2× 54V high-power PoE ports (up to 90 W)

• Advanced Network Management
  Supports cnMaestro cloud-based management and on-premises XMS, enabling zero-touch deployment, policy-based automation, and remote monitoring.

• Layer 2/3 Capabilities
  Full L2/L3 feature set with VLAN, STP/RSTP, link aggregation, routing, and access control for secure, scalable networks.

• Flexible Uplink Options
  4× 10 Gbps SFP+ fiber ports and 8× 1 Gbps SFP/RJ45 ports for high-speed backbone connectivity.

• Enhanced Security & Automation
  Automated device profiling, segmentation, and policy-based workflow for adds, moves, and changes.

• Front Panel Accessibility
  All ports and interfaces are located on the front panel for easy installation and maintenance.

• Enterprise-Grade Reliability
  Includes 3-Year Limited Lifetime Warranty and support for continuous network operations.

Specifications

General

Hardware & Connectivity

Software & Network Features

• Layer 2 Features: VLAN, STP, RSTP, link aggregation, port mirroring, loop prevention

• Layer 3 Features: Basic routing, static routes, policy-based traffic management

• QoS & Traffic Management: Prioritization of critical traffic, bandwidth control

• Security Features: Device profiling, network segmentation, port isolation

• Automation: Policy-based configuration for adds, moves, and network changes

• Management Protocols: SNMP, remote monitoring, zero-touch provisioning

What’s in the Box

• 1 × cnMatrix TX1012-P-DC Managed Switch

• 1 × Power Cable (DC input)

• 1 × Rack-Mount Kit

• Quick Installation Guide and Documentation

Why Choose cnMatrix TX1012-P-DC

• Enterprise-grade L2/L3 switching with non-blocking architecture

• Flexible PoE options including high-power ports up to 90 W

• Full integration with cnMaestro cloud or on-premises XMS for simplified management

• Zero-touch deployment reduces installation and configuration time

• Enhanced security with automated profiling, VLANs, and segmentation

• Front-panel design and high reliability for continuous network uptime
