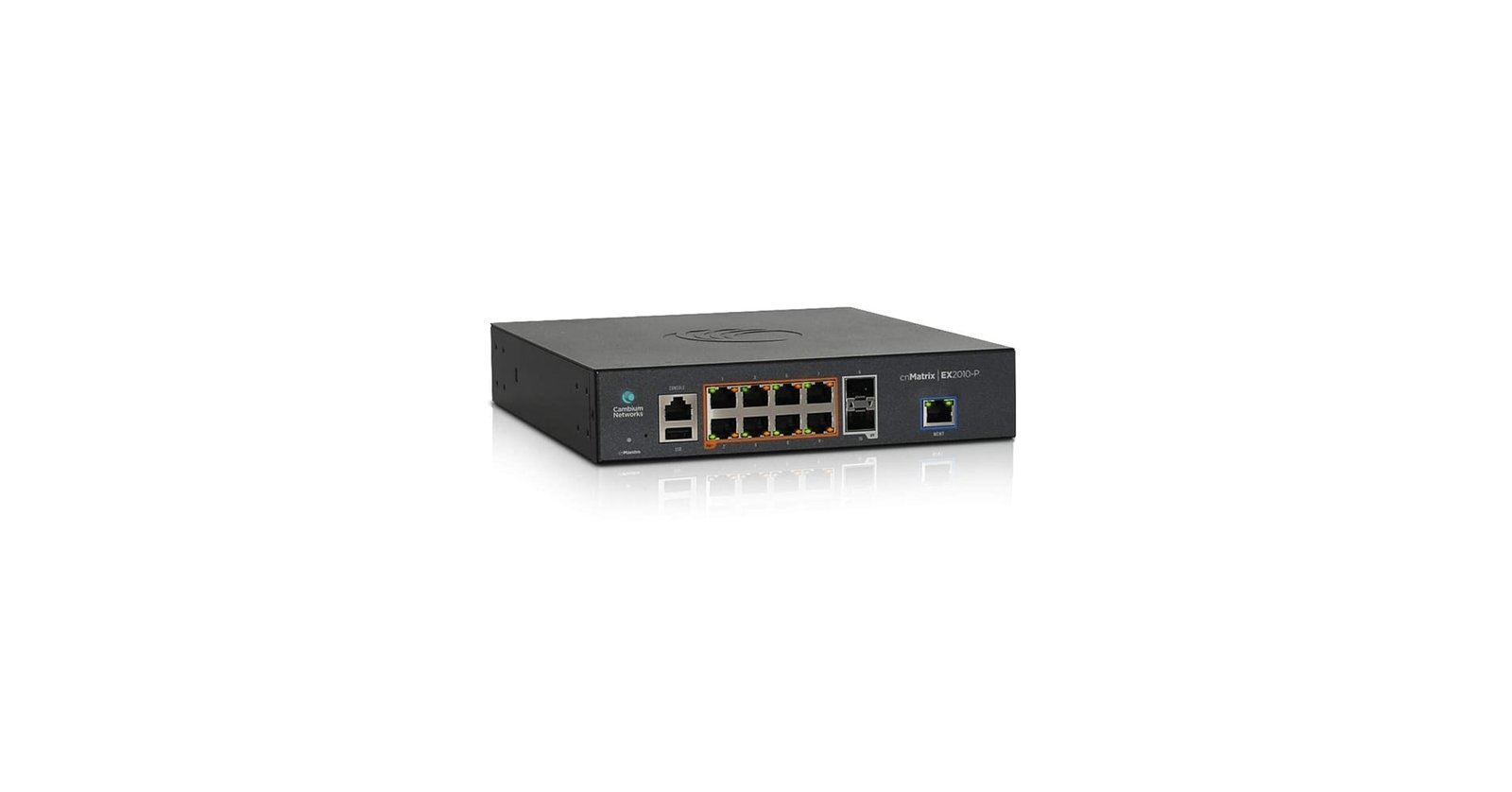

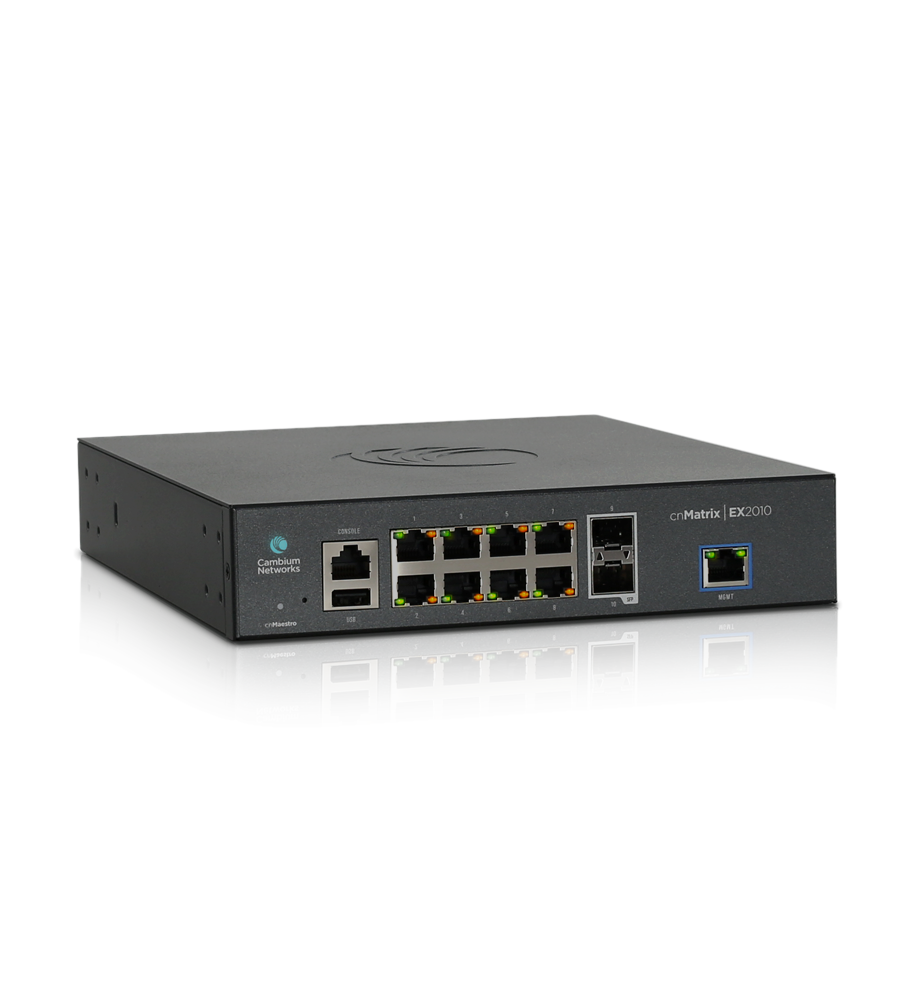

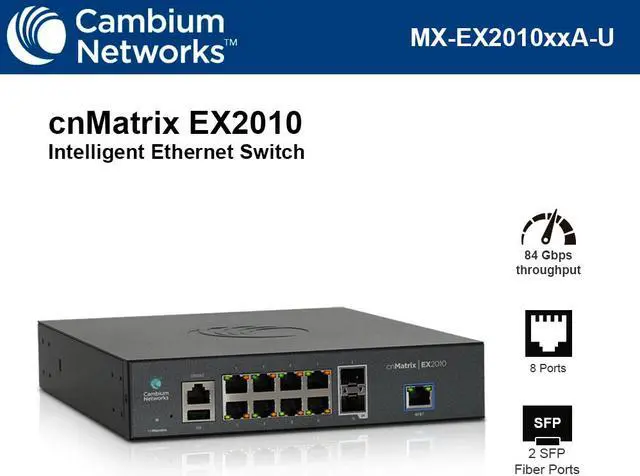

Cambium cnMatrix EX2010 Switch 224Port Smart Managed Switch
Original price was: KSh 116,000.00.KSh 110,000.00Current price is: KSh 110,000.00.
Cambium cnMatrix EX2010 Switch 224Port Gigabit Smart Managed Switch
| Ports | 8 × 10/100/1000 + 2 × SFP uplinks |
| Throughput | 20 Gbps |
| Maximum Routes | 64 (Static) |
| Layer Support | L2 / L3 |
| VLAN | 802.1Q with segmentation |
| Management | cnMaestro™ (cloud/on-premise) |
| Security | 802.1X, DHCP snooping, MAC/RADIUS authentication |
| Power Consumption | Max 13 W |
| Installation | Rack-mountable |
| Warranty | 5-Year Limited Lifetime |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description
Cambium cnMatrix EX2010 Switch 224Port Gigabit Smart Managed Switch
The Cambium cnMatrix EX2010 Switch 224Port Gigabit Smart Managed Switch is a high-performance, fully managed enterprise-grade switch designed to simplify network deployment and management while delivering unified wired and wireless connectivity. When integrated with cnPilot WLAN access points and the cnMaestro management system, the EX2010 provides a feature-rich, scalable network infrastructure that enhances performance, security, and end-user experience.
Key Features
Full Line-Rate, Non-Blocking Architecture
Ensures consistent high-speed packet forwarding across all ports without bottlenecks.Cloud or On-Premise Management via cnMaestro™
Simplifies network monitoring, device provisioning, and maintenance with zero-touch deployment.Policy-Based Automation
Automatically configures and manages network devices, reducing manual labor and potential misconfigurations.Enhanced Security Features
Supports automated device profiling, segmentation, 802.1X authentication, DHCP snooping, MAC/RADIUS authentication, and ND inspection.Flexible Uplink Options
Provides SFP+ (10 Gbps) or SFP (1 Gbps) uplinks for versatile connectivity to aggregation switches or core networks.Enterprise-Class Reliability
Supports 64 static routes, 20 Gbps throughput, and 8× 10/100/1000 ports for seamless high-performance operation.Five-Year Limited Lifetime Warranty
Industry-leading warranty ensures long-term reliability and investment protection.
Specifications
General
| Feature | Specification |
|---|---|
| Model | cnMatrix EX2010 |
| Net Weight | 1.62 kg |
| Gross Weight | 2.545 kg |
| Dimensions (W × H × D) | 335 × 44.5 × 175.8 mm |
| Shell | Metal, IP40 Rated |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5%–95% (non-condensing) |
| Power Supply | 220 VAC, 50/60 Hz, Max 0.7 A |
| Max Power Consumption | 13 W |
| Idle Power Consumption | 5 W |
| Installation Mode | Rack-mount with included ears |
| Surge Protection | 6 kV |
Network Parameters
| Feature | Specification |
|---|---|
| Ports | 8 × 10/100/1000, 2 × SFP Uplink |
| Throughput | 20 Gbps |
| Maximum Static Routes | 64 |
| Switching Capacity | Full line rate |
| Packet Forwarding Rate | N/A (line rate) |
| Internal Cache | N/A |
Software & Management Features
Link Aggregation: Supports static link aggregation for bandwidth expansion and redundancy. Up to 8 aggregation groups.
HPP (Hik-Partner Pro equivalent): Zero-touch deployment, port status monitoring, network topology visualization, remote device restart, and firmware upgrade.
VLAN & Segmentation: Supports 802.1Q VLANs, automated segmentation, and port isolation.
Loop Prevention: Supports STP (802.1D) and RSTP (802.1w) for resilient network topologies.
Security: 802.1X authentication, DHCP snooping, MAC/RADIUS/TACACS authentication, and neighbor discovery inspection.
Remote Management: Fully compatible with cnMaestro™ cloud/on-premise network management platform.
Diagnostics: Device profiling, automated monitoring, and policy-based device provisioning.
Certifications
| Category | Certification |
|---|---|
| EMC | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Safety | CB, CE-LVD (IEC 62368-1) |
| Chemistry | RoHS, WEEE, REACH |
What’s in the Box
1 × Cambium cnMatrix EX2010 Switch
Rack-mounting ears and screws
Quick Installation Guide
Power Cable
Why Choose cnMatrix EX2010
Simplifies deployment with zero-touch provisioning.
Delivers high-speed Layer 2/Layer 3 switching for enterprise networks.
Provides advanced security with automated segmentation and authentication.
Flexible uplink support (SFP/SFP+) ensures connectivity to existing infrastructure.
Cloud or on-premise management via cnMaestro™.
Five-year limited lifetime warranty for enterprise reliability.
