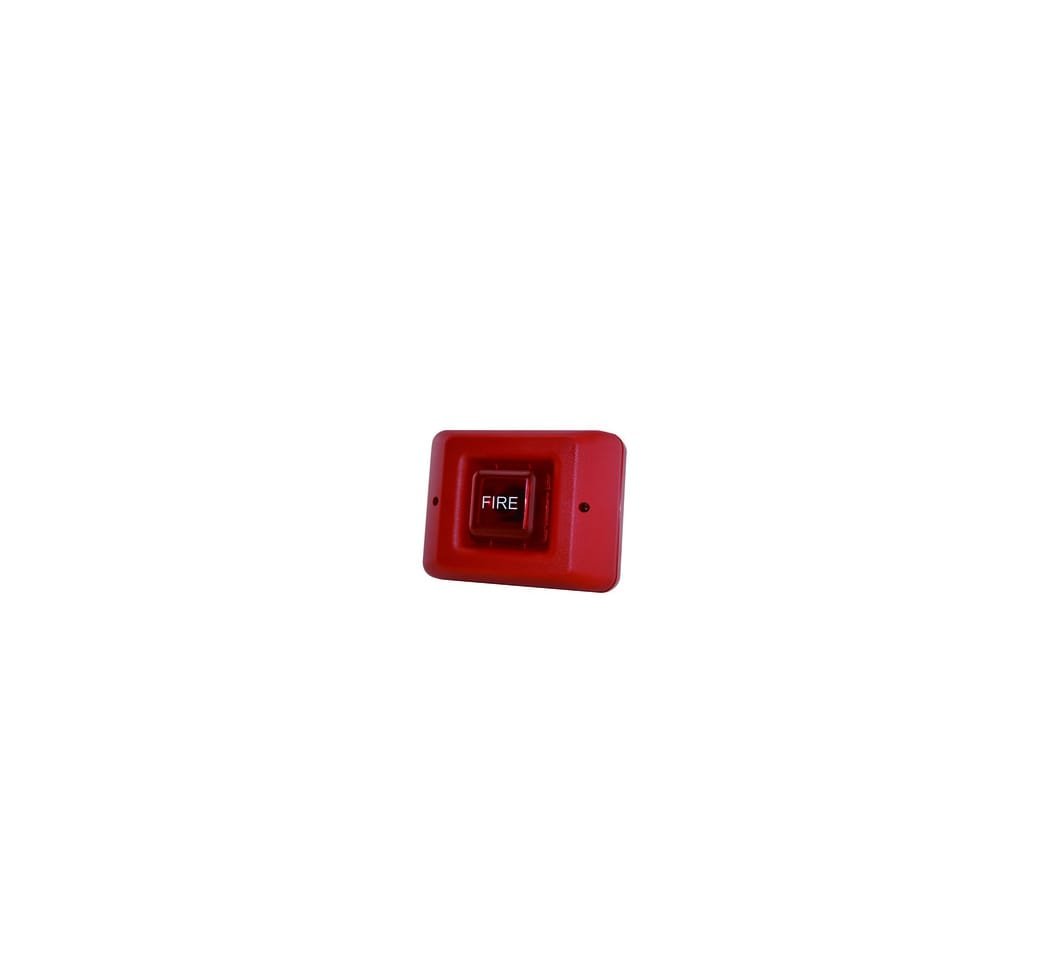

Asenware AW-CMC2166-6 Conventional Manual Call Point Red

AW-CMC2166-6 Manual Call Point

The Asenware AW-CMC2166-6 Call Point serves as a critical interface for manual alarm activation within conventional fire detection circuits. This device facilitates immediate emergency reporting through manual intervention. It integrates seamlessly with standard 2-wire conventional fire alarm control panels. Consequently, it provides a reliable method for building occupants to signal a fire event. The internal architecture utilizes a resettable plastic element rather than breakable glass. This design choice reduces long-term maintenance costs. It also eliminates the risk of injury from glass shards during activation.

Key Features

• Resettable Operating Element
  The unit utilizes a non-breaking plastic part to prevent the need for glass replacement after every test.
• Electrical Configuration
  • Operating voltage ranges from 9V to 28V DC.
  • Alarm current consumption is rated at 45mA at 24V.
  • Contact resistance remains below 0.2 ohms during operation.
• Visual Status Indicator
  An integrated red LED provides clear visual confirmation when the device enters an active alarm state.
• Mounting and Installation
  • Includes a dedicated surface mount backbox for easy installation.
  • Terminal blocks support wiring sizes between 1.5mm² and 2.5mm².
  • Standard dimensions allow for compatibility with most mounting surfaces.

Specifications

What’s in the Box

• AW-CMC2166-6 Manual Station
• Surface Mount Backbox
• Reset Key
• Installation Manual

Why Choose This Manual Station

• The resettable mechanism ensures the hardware remains functional after testing without purchasing additional consumables.
• High-visibility red finish allows for rapid identification during emergency situations with low visibility.
• Broad voltage compatibility ensures this system works with various conventional fire alarm control panel brands. Additionally, the fireproof ABS housing provides durability in industrial environments. Therefore, it represents a cost-effective solution for facility-wide safety deployments.
