APC Easy UPS 3S 40kVA 400V 3:3 UPS with Internal Batteries
Original price was: KSh 1,775,000.00.KSh 1,585,000.00Current price is: KSh 1,585,000.00.
APC Easy UPS 3S 40kVA 400V 3:3 UPS with Internal Batteries
| Feature | Value |
|---|---|
| Power Rating | 40kVA / 40kW |
| Phase | 3:3 (Three Phase) |
| Voltage | 400V Nominal |
| Batteries | Internal Strings Included |
| Efficiency | 96% Online Mode |
Shipping & Delivery
Fast delivery
Your order will be deliver to the specified address
15 - 45 minutes
From KES 300
Warranty 1 year
Free 30-Day returns
Description

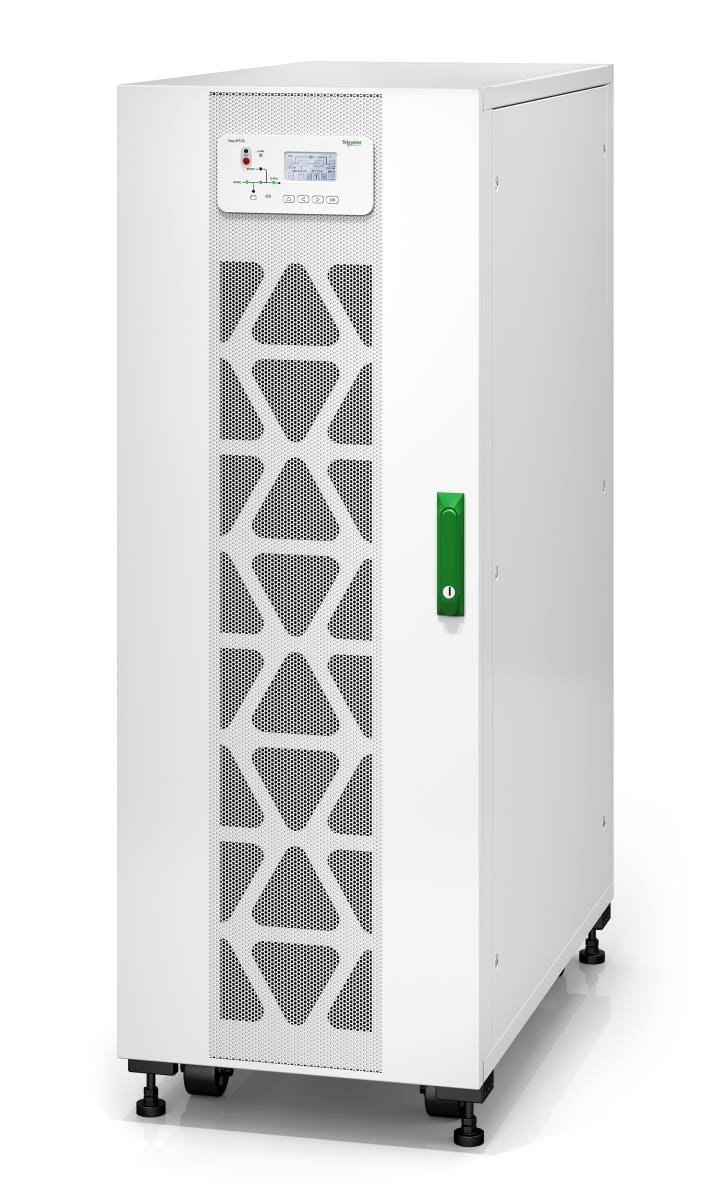

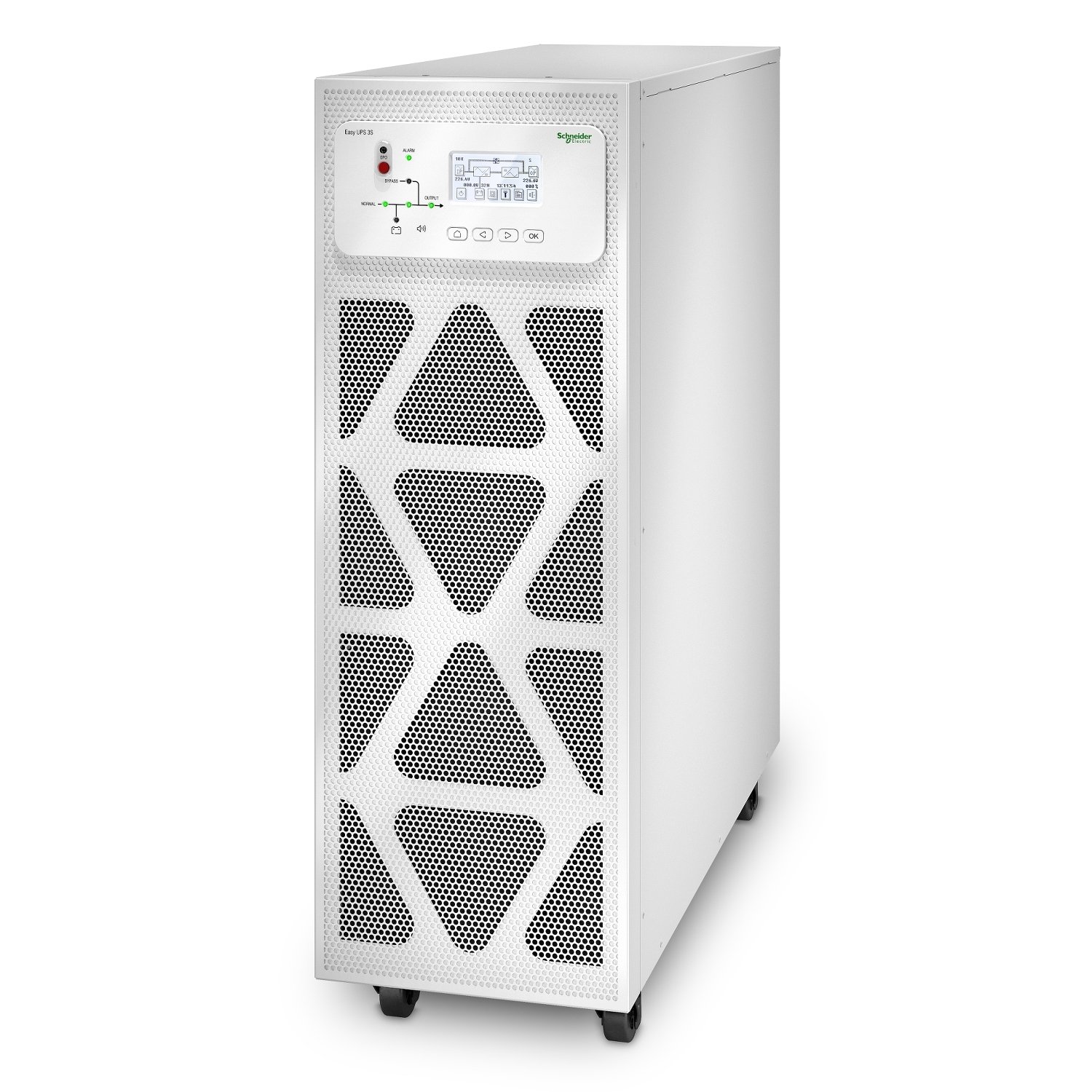

APC Easy UPS 3S 40kVA
The APC Easy UPS 40kVA (E3SUPS40KHB2) provides high-performance power protection for small and medium data centers and critical infrastructure. This three-phase uninterruptible power supply utilizes a double-conversion online topology to ensure zero transfer time during power fluctuations. It delivers 40kW of real power with a unity power factor. The integrated internal battery strings provide immediate runtime without requiring external battery cabinets. Consequently, this unit minimizes the physical footprint in high-density server rooms. The system operates at 96% efficiency in double conversion mode and up to 99% in ECO mode. Therefore, IT managers can significantly reduce cooling costs and total cost of ownership.
Key Features
Easy Loop Test Verification
This diagnostic tool validates UPS performance before connecting the load to eliminate the need for an external load bank during commissioning.Integrated Internal Batteries

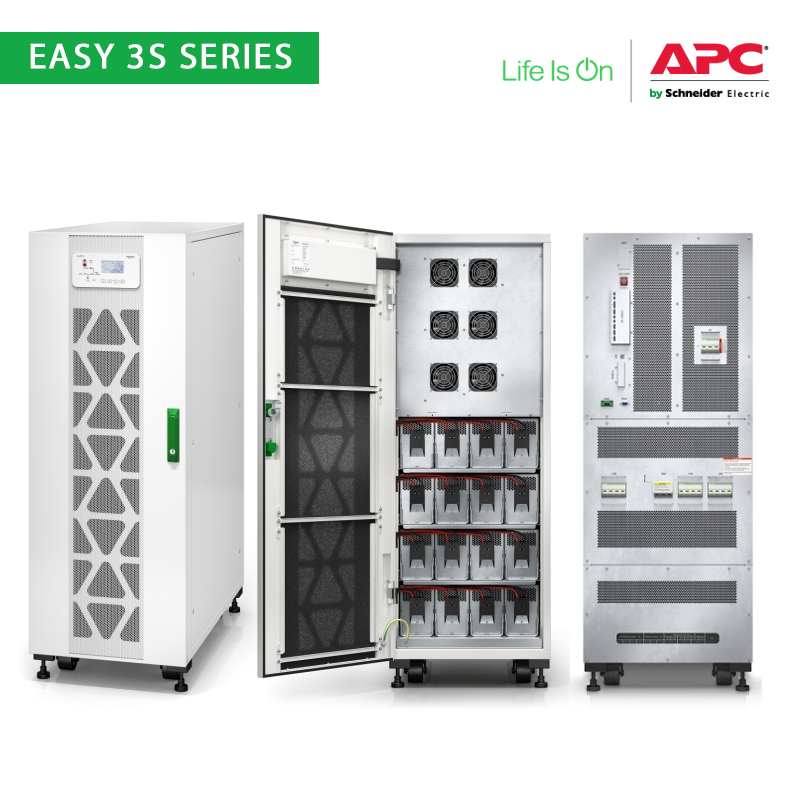

The chassis houses two strings of high-capacity batteries to provide immediate backup power and simplify the installation process.Wide Input Voltage Window
The system manages input fluctuations from 304V to 477V at full load to preserve battery life for actual power outages.Operational Versatility
- Parallel capability supports up to 4 units for redundancy or capacity.
- Replaceable dust filters protect internal components in harsh industrial environments.
Specifications
| Feature | Specification |
|---|---|
| Power Capacity | 40kVA / 40kW |
| Nominal Output Voltage | 400V 3PH |
| Input Voltage Range | 304V – 477V |
| Topology | Double Conversion Online |
| Battery Type | VRLA Internal Strings |
| Efficiency (Full Load) | 96.0% |
| Interface | LCD Graphics Display |
What’s in the Box
APC Easy UPS 3S 40kVA Power Module
Pre-installed Internal Battery Strings (2)
Dust Filter
Installation Guide
Why Choose This Power Solution
The unit features a unity power factor which ensures that kVA equals kW for maximum power density.
Advanced battery management optimizes charging cycles and extends the service life of the internal storage.
This hardware integrates with Schneider Electric EcoStruxure for real-time remote monitoring via a network management card.
The front-access design simplifies maintenance and reduces the required clearance space in narrow aisles.
It provides reliable galvanic isolation to protect sensitive electronics from upstream electrical noise.
