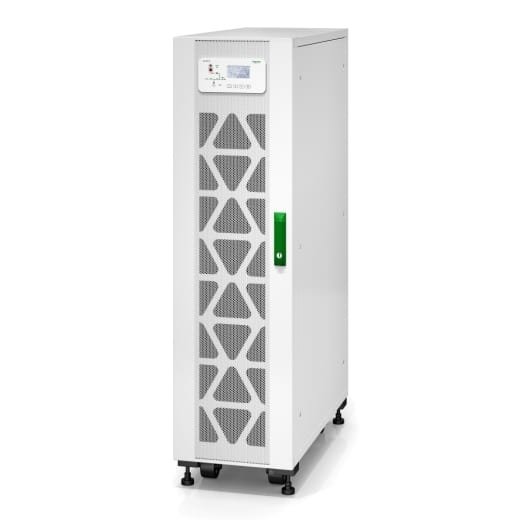

APC Easy UPS 3S 20kVA 400V 3:3 with Internal Batteries

APC Easy UPS 3S 20kVA

The APC Easy UPS 3S is a high-performance, three-phase uninterruptible power supply designed to provide robust power protection for small and medium-sized business environments. This specific SKU features internal batteries that offer immediate backup runtime without requiring external battery cabinets. The system utilizes a double-conversion online topology to ensure a clean and stable power supply, protecting critical hardware from voltage fluctuations, surges, and total power failures. Consequently, it maintains operational continuity for data centers, telecommunications infrastructure, and industrial facilities. The unit supports a 400V input and output configuration in a 3:3 phase arrangement, delivering a unity power factor of 1.0, which means 20kVA equals 20kW of real power capacity.

Key Features

• Integrated Internal Batteries

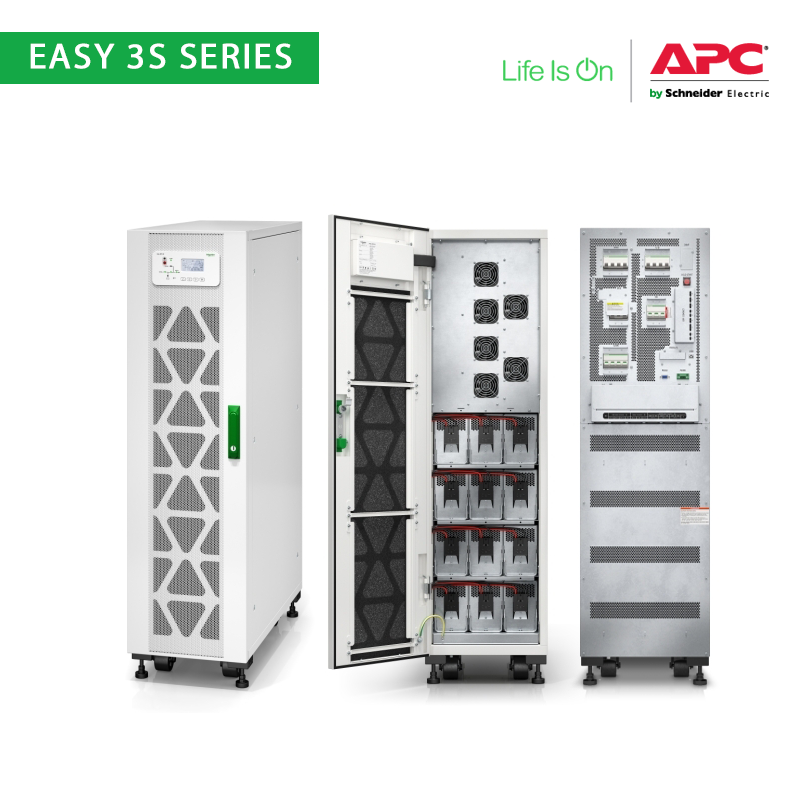

  The E3SUPS20KHB2 model includes factory-installed battery strings to simplify installation and reduce the total equipment footprint.

• High Efficiency Operating Modes

  • Achieves up to 96% efficiency in double conversion mode to reduce electricity costs.
  • Reaches up to 99% efficiency when operating in ECO mode for maximum energy savings.

• Parallel Capability
  Users can connect up to four units in parallel to increase system capacity or provide N+1 redundancy for mission-critical loads.

• Robust Environmental Tolerance

  • Includes a built-in, easy-to-replace dust filter to protect internal components in harsh conditions.
  • Operates effectively at ambient temperatures up to 40 degrees Celsius without derating.

• Simplified Maintenance

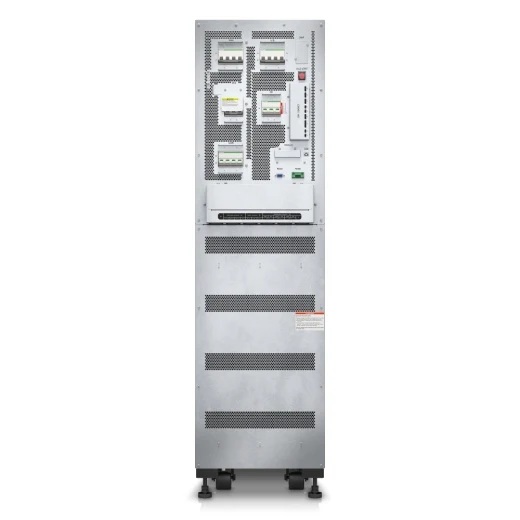

  The inclusion of a manual maintenance bypass and a static bypass allows for servicing without disconnecting power to the protected load.

Specifications

What’s in the Box

• APC Easy UPS 3S 20kVA Unit

• Pre-installed Internal Battery Modules

• Dust Filter

• Installation Guide and User Manual

Why Choose This Power System

• The system provides a competitive total cost of ownership by combining high efficiency with a compact vertical design.

• Built-in Easy Loop testing validates UPS performance before load connection, eliminating the need for an external load bank.

• The unit features a wide input voltage window to preserve battery life during minor power fluctuations.

• Front-access servicing allows for quick maintenance in tight data center rows or electrical closets.
