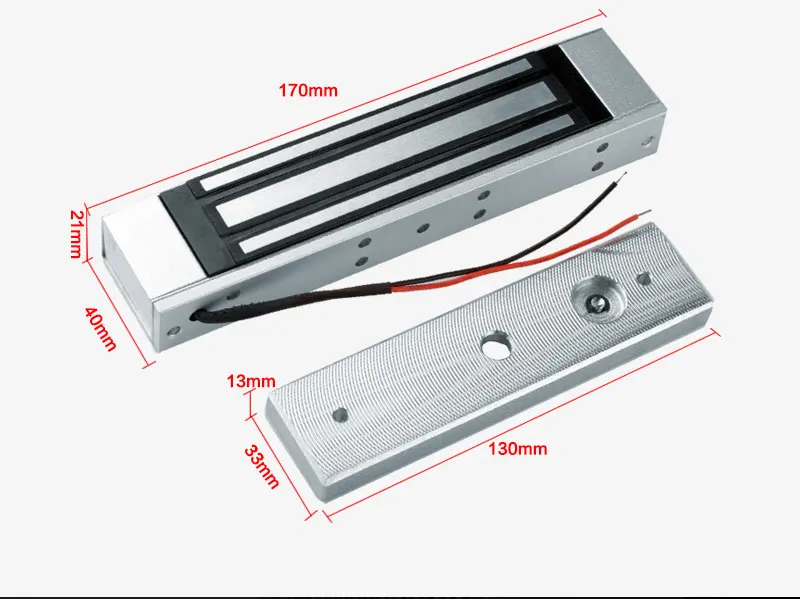

180B 180kg Single Door Magnetic Lock 12V DC

180B Magnetic Lock

The  180B Magnetic Lock provides a robust fail-safe security solution for commercial and industrial access control systems. This electromagnetic locking device delivers a holding force of 180 kilograms (approximately 350 lbs), ensuring reliable door retention under standard operational conditions. It operates on a 12V DC power input and integrates directly with access controllers, motion sensors, and exit buttons. The internal architecture utilizes a high-strength alloy and a specialized anti-residual magnetism design to ensure immediate release when power is cut. Consequently, this hardware remains a standard choice for fire exit routes and office security perimeters.

Key Features

• Fail-Safe Operation
  The lock releases immediately upon power loss to satisfy stringent fire safety and emergency egress requirements.

• Anti-Residual Magnetism
  An integrated discharge circuit prevents the build-up of residual magnetic flux for instantaneous door opening.

• Durable Construction
  The outer shell consists of high-strength anodized aluminum to resist environmental corrosion and physical wear.

• Surge Protection

  • Built-in MOV (Metal Oxide Varistor) protects against electrical spikes
  • Low current consumption design reduces thermal output during continuous operation

Specifications

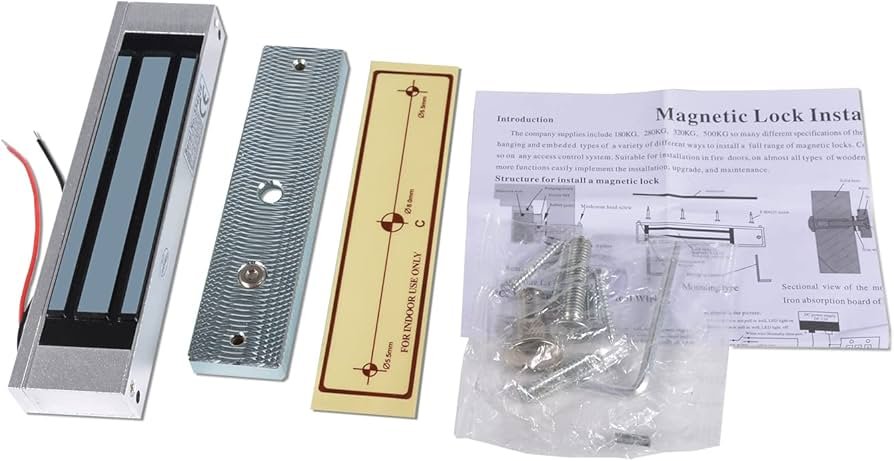

What’s in the Box

• 180kg Electromagnetic Lock Unit
• Armature Plate
• Mounting Hardware Kit (Screws and Allen Key)
• Drill Template and Installation Guide

Why Choose This Device

• The unit features no moving mechanical parts, which significantly reduces the maintenance requirements over long deployment cycles.
• High-grade magnetic steel ensures the specified holding force remains consistent regardless of the number of duty cycles.
• Universal compatibility allows this hardware to function with  Hikvision, and other third-party access control panels.
• The compact form factor enables installation on various door types including wooden, glass, and metal frames using optional brackets.
