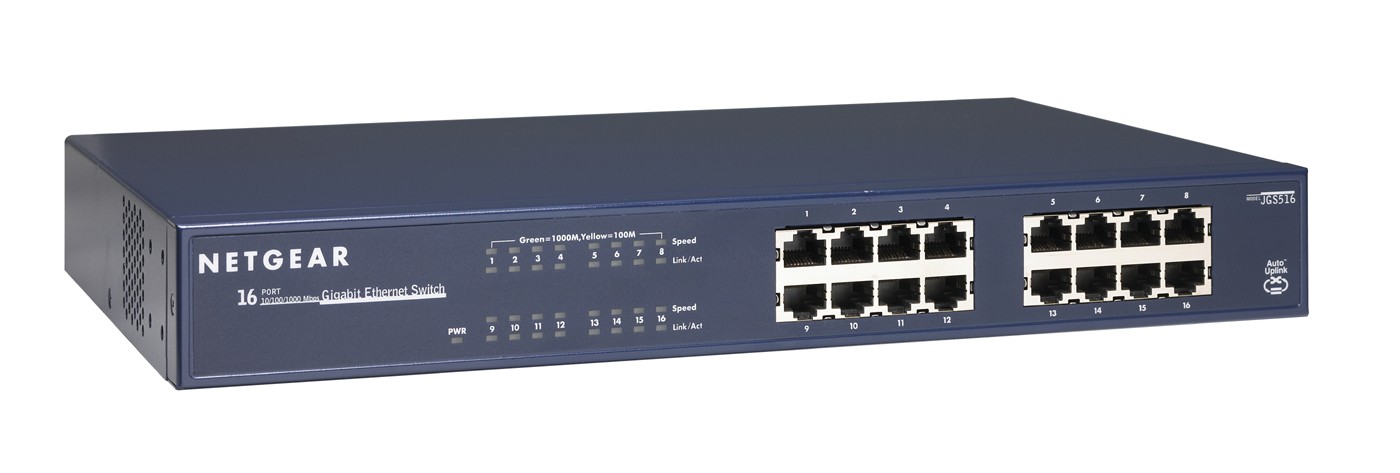

NETGEAR JGS516-200EUS 16-Port Gigabit Unmanaged Switch
The NETGEAR JGS516-200EUS is a 16-port Gigabit Ethernet unmanaged switch designed for small to medium-sized business networks that require reliable, high-speed wired connectivity. Offering 16 RJ-45 Gigabit ports and 4 SFP module slots, it provides a flexible and cost-effective solution for connecting multiple devices, servers, and access points in office or data center environments.
Key Features
-
16 Gigabit RJ-45 Ports
High-speed Ethernet connectivity for multiple devices. -
4 SFP Module Slots
Optional fiber uplinks for extended network reach and flexibility. -
Unmanaged Layer 2 Switching
Plug-and-play setup with automatic MAC address learning and forwarding. -
Rack-Mountable Design
Compact 1U form factor suitable for standard network racks. -
Robust Reliability
MTBF of 309,000 hours ensures consistent network uptime. -
Wide Operating Conditions
Operates from 0–55°C with 10–90% relative humidity. -
Compliance & Certification
CE mark, FCC Part 15 Class A, VCCI Class A, EN 55022, EN 50082-1, EN 55024, and C-Tick. -
Low Latency & Jumbo Frame Support
20 μs latency and 9K jumbo frame support for smooth high-bandwidth applications.
Specifications
| Feature | Specification |
|---|---|
| Model | NETGEAR JGS516-200EUS |
| Switch Type | Unmanaged |
| Switch Layer | Layer 2 (L2) |
| Ports | 16 × RJ-45 Gigabit, 4 × SFP slots |
| Power Connector | DC-in jack |
| Power over Ethernet (PoE) | No |
| Maximum Data Rate | 0.1 Gbps per port |
| Packet Buffer Memory | 2 MB |
| Bandwidth | 32 Gbps |
| Latency | 20 μs |
| Jumbo Frame Support | Yes |
| Rack Mountable | Yes |
| Stackable | No |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–70°C |
| Operating Humidity | 10–90% RH |
| Non-Operating Humidity | 10–95% RH |
| Dimensions (WxDxH) | 330 × 207 × 43 mm |
| Weight | 1,470 g (3.57 lb) |
| Color | Blue |
| Certifications | CE, FCC, VCCI, EN 55022, EN 50082-1, EN 55024, C-Tick |
What’s in the Box
-
1 × NETGEAR JGS516-200EUS 16-Port Gigabit Switch
-
Rack mounting kit
-
Quick Installation Guide
-
Power cord
Why Choose NETGEAR JGS516-200EUS
-
Provides reliable, plug-and-play Gigabit Ethernet connectivity.
-
Flexible fiber uplink options via SFP slots for future expansion.
-
Rack-mountable, compact design for office and server room deployment.
-
Low-latency switching ideal for business applications and VoIP.
-
Certified for global safety and EMC compliance for peace of mind.
