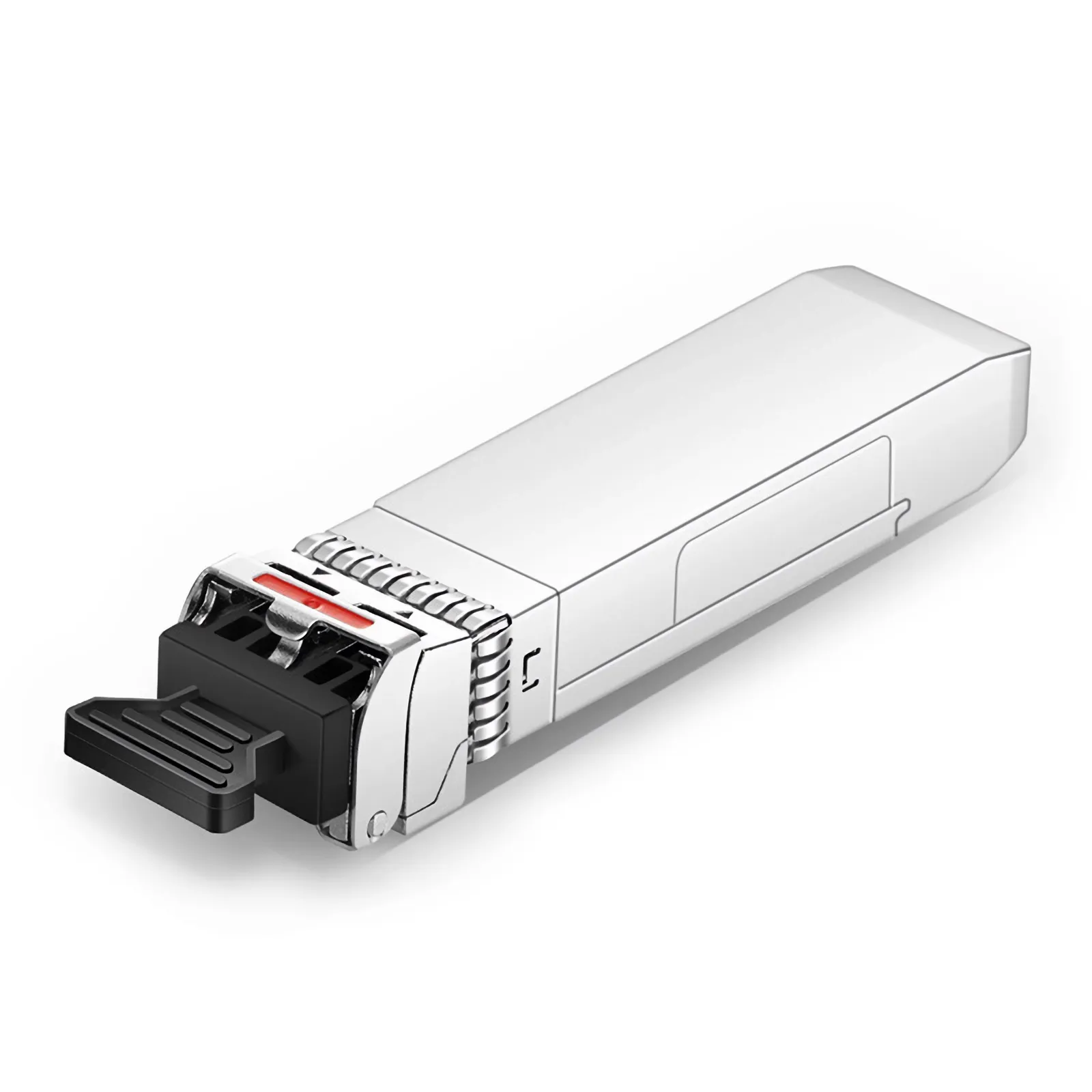

Cisco SFP-10G-ER 10GBASE-ER 1550nm 40km DOM SFP+ Transceiver

Cisco SFP-10G-ER

The Cisco SFP-10G-ER Transceiver provides a high-performance solution for 10 Gigabit Ethernet connectivity over extended single-mode fiber distances. This module operates at a nominal wavelength of 1550nm. It supports link lengths up to 40 kilometers on standard G.652 single-mode fiber (SMF). Consequently, it serves as a critical component for long-haul enterprise and service provider networks. The architecture utilizes a cooled EML laser and a high-sensitivity PIN receiver. This combination ensures reliable data transmission across significant spans without signal degradation. Therefore, network engineers can deploy this unit in core and aggregation layers effectively.

Key Features

• Digital Optical Monitoring (DOM)
  This interface allows real-time access to operating parameters such as transceiver temperature, laser bias current, and optical power.

• Optical Specifications

  • Utilizes a 1550nm cooled EML transmitter for long-range stability.
  • Features a high-sensitivity PIN photodiode for accurate signal reception.
  • Supports a link budget of approximately 15dB for 40km spans.

• Standardized Compatibility
  The hardware complies fully with SFP+ Multi-Source Agreement (MSA) and IEEE 802.3ae 10GBASE-ER specifications.

Specifications

What’s in the Box

• 1 x Cisco Compatible SFP-10G-ER Transceiver Module
• Protective Dust Caps

Why Choose This Module

• The hot-swappable design allows for installation or replacement without powering down the host switch or router.
• Low power consumption profiles minimize the thermal load on high-density line cards and switches.
• Additionally, the 40km reach eliminates the need for expensive intermediate repeaters in metropolitan area networks.
• Rigorous testing ensures interoperability with a wide range of Cisco platforms and third-party networking hardware.
• However, users must ensure the use of appropriate attenuators for short-distance testing to prevent receiver saturation.
